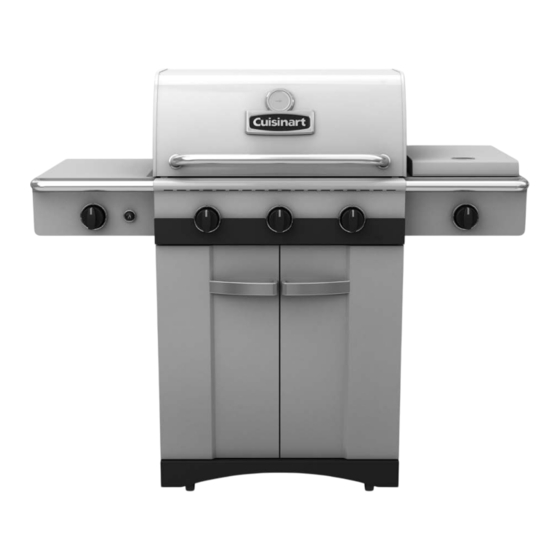

Cuisinart Gourmet INFRARED 800 Assembly Manual
Hide thumbs
Also See for Gourmet INFRARED 800:
- Assembly manual (14 pages) ,
- Assembly manual (26 pages)
Related Manuals for Cuisinart Gourmet INFRARED 800
Summary of Contents for Cuisinart Gourmet INFRARED 800

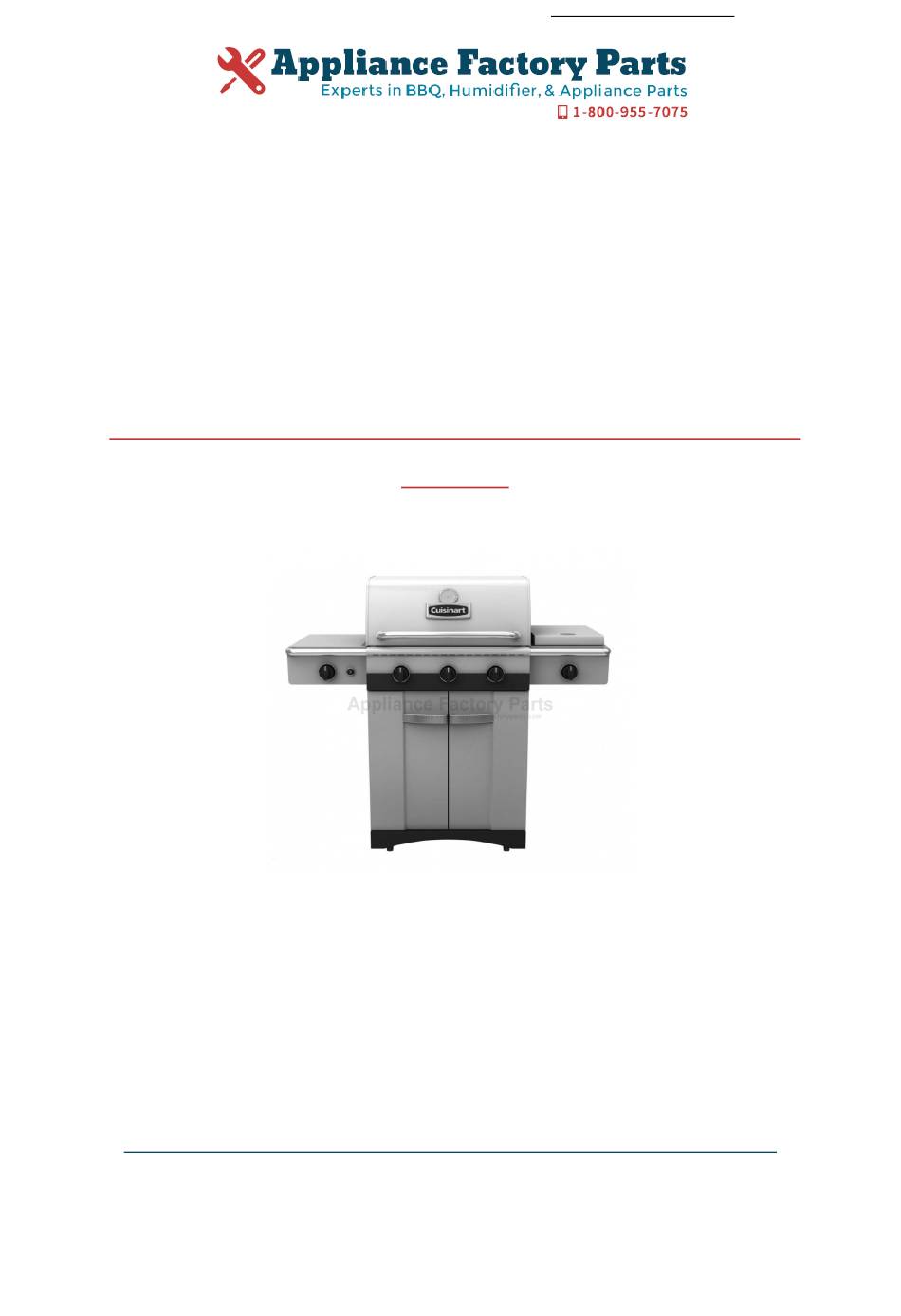

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. CUISINART G52503 Owner's Manual Shop genuine replacement parts for CUISINART G52503 Find Your CUISINART Grill Parts - Select From 152 Models -------- Manual continues below --------...
- Page 2 ASSEMBLY MANUAL 85-3058-4 (G52503) Propane Cuisinart Gourmet INFRARED 800 ® 85-3059-2 (G52504) Natural Gas READ AND SAVE MANUAL FOR FUTURE REFERENCE. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
- Page 3 HARDWARE PACK Tools Needed for Assembly No. Description Part Number Qty. 1/4-20UNCx38 Screw 20120-13038-250 • #2 Phillips screwdriver (long and short) 1/4-20UNCx18 Screw 20120-13018-250 • ¼” Slotted screwdriver (long and short) 1/4-20UNCx13 Screw 20120-13013-250 • Adjustable wrench 1/4" Nut 30220-13000-250 •...
- Page 4 PARTS LIST (PROPANE) FOR 85-3058-4 (G52503) EXPLODED DIAGRAM (PROPANE) FOR 85-3058-4 (G52503) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top lid G525-2000-01 Side Shelf Table - Right G525-2700-01 Lid Handle G525-0033-01 Side Shelf Fascia - Right G525-3900-01 Thermometer G512-0085-01...
- Page 5 PARTS LIST (NATURAL GAS) FOR 85-3059-2 (G52504) EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3059-2 (G52504) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top lid G525-2000-01 Side Shelf Table - Right G525-2700-01 Lid Handle G525-0033-01 Side Shelf Fascia - Right G525-3900-01 Thermometer G512-0085-01...
- Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Separate the 2 different types of wheels, 2 Attach the Front Brace (CK) to the Left and Locking Wheels (ED) and 2 Regular Wheels Right Cart Side Panels (EA and EB). (EE). TIP: One person should align the left side, while the second person assembles the Insert the U Pin (#20) into one of the Regular right side.
- Page 7 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS a. Open the Lid. Assemble the Left Side Shelf b. Assemble Burner Box Assembly (A and B) to Assembly (DI and DJ) to the Right Support Cart Side Panels (EA and EB), as shown. Bar (EK) and the Cart Assembly by inserting the Side Shelf tabs into holes on the Cart Assembly (figure A).
- Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS a. Remove the hardware that is pre-assembled b. Attach the two Ignition Button wires to the to the Rotisserie Valve (BK) as shown in figure Electronic Ignition Button (DK), as shown in figure C. b. Insert the rotisserie burner valve stem through the rear of the Left Side Shelf Fascia (DJ), and assemble using the hardware removed.
- Page 9 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS a. Open the lid. Assemble the Right Side Shelf a. Remove the hardware from the Infrared Assembly (DA and DB) to the Left Support Support Frame (DC). Bar (EJ) and the Cart Assembly by inserting the Side Shelf tabs into the holes on the Cart Assembly (figure A).
- Page 10 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS c. Make sure that the Infrared Zone Side Burner (DD) engages the Side Burner Valve (CC) gas jet, as shown in figure D. a. Assemble the Infrared Side Burner Wind Shield (DN) to the Infrared Support Frame (DC), as shown in figure A and B.
- Page 11 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS a. Remove the Electronic Ignition Battery Cap g. Insert the Infrared Grease Tray (DM) into the back of the Infrared Zone Support Frame (CF2) and the plastic nut from the Electronic Ignition Assembly (CF1). (DC), as shown. b.
- Page 12 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS e. Insert the Electrode Wire, Infrared Zone (DE) b. Assemble the Heat Shield (CN) to the bottom and the Electrode Wire, Rotisserie Burner of the Front Brace (CK), as shown in figure B. (BH) into the Electronic Ignition Assembly (CF1), as shown in figure E.
- Page 13 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS c. Assemble the front of the Left and Right a. Assemble the Right Door Assembly (EG), to Tracks (CO and CP) to the Front Brace (CK), the Bottom Shelf (EC) by inserting the fixed as shown in figure C. pin (bottom of door) into the hole provided (figure B).
- Page 14 Place the Cooking Grates (BE) into the Hard tighten only. Burner Box Assembly (BA), as shown. d. Perform Leak Test. See page 5 of the Cuisinart Safety and Care Manual. ® ATTENTION: For your families safety, do not attempt to light this BBQ until...
- Page 15 Visit www.cuisinartbbqs.com to complete product registration. Cuisinart is a registered ® trademark used under license © 2011 Winners Products Downloaded from www.Manualslib.com manuals search engine...
