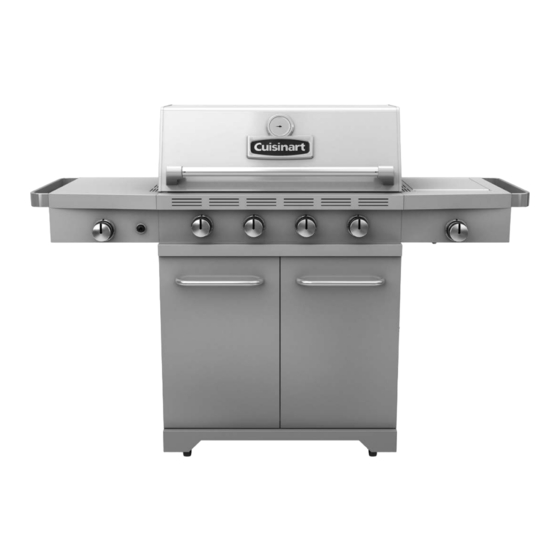

Cuisinart Gourmet INFRARED PRO 900 Assembly Manual
  1. Manuals
  2. Brands
  3. Cuisinart Manuals
  4. Grill
  5. Gourmet INFRARED PRO 900
  6. Assembly manual

Cuisinart Gourmet INFRARED PRO 900 Assembly Manual

Hide thumbs Also See for Gourmet INFRARED PRO 900:

Advertisement

Quick Links

Download this manual
This Owner's Manual is provided and hosted by Appliance Factory Parts.
CUISINART G61801
Owner's Manual
Shop genuine replacement parts for CUISINART
G61801
Find Your CUISINART Grill Parts - Select From 152 Models
-------- Manual continues below --------

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gourmet INFRARED PRO 900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cuisinart Gourmet INFRARED PRO 900

Summary of Contents for Cuisinart Gourmet INFRARED PRO 900

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. CUISINART G61801 Owner's Manual Shop genuine replacement parts for CUISINART G61801 Find Your CUISINART Grill Parts - Select From 152 Models -------- Manual continues below --------...

  • Page 2: Assembly Manual

    ASSEMBLY MANUAL 85-3060-6 (G61801) Propane Cuisinart Gourmet INFRARED PRO 900 ® 85-3061-4 (G61802) Natural Gas READ AND SAVE MANUAL FOR FUTURE REFERENCE. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.

  • Page 3: Hardware Pack

    HARDWARE PACK Tools Needed for Assembly No. Description Part Number Qty. 1/4"-20UNCx38 Screw 20120-13038-250 • #2 Phillips screwdriver (long and short) 1/4"-20UNCx13 Screw 20120-13013-250 • ¼” Slotted screwdriver (long and short) φ7 Lock Washer 41400-07000-250 • Adjustable wrench φ7 Washer 40300-07000-250 •...
  • Page 4 PARTS LIST (PROPANE) FOR 85-3060-6 (G61801) EXPLODED DIAGRAM (PROPANE) FOR 85-3060-6 (G61801) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top Lid G618-2000-01 Side Shelf Table - Right G618-0700-01 Lid Handle G618-0003-01 Side Shelf Fascia - Right G618-0032-01 Lid Handle End Cap G618-0004-01...
  • Page 5 PARTS LIST (NATURAL GAS) FOR 85-3061-4 (G61802) EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3061-4 (G61802) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top Lid G618-2000-01 Side Shelf Table - Right G618-0700-01 Lid Handle G618-0003-01 Side Shelf Fascia - Right G618-0032-01 Lid Handle End Cap G618-0004-01...
  • Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Separate the 2 different types of Wheels, Assemble the Lower Back Panel (CO) to the 2 Locking Wheels (ED) and 2 Regular Wheels Left and Right Cart Side Panel (EA and EB). (EE). Insert the U Pin Tool (#15) into one of the YOU WILL NEED: Regular Wheels (EE), as shown in image B.
  • Page 7 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Assemble the Left Heat Shield (CS) to the b. Complete assembly of the Interior Cart Left Cart Side Panel (EA) and the Interior Cart Divider (CQ) by assembling to Lower Back Divider (CQ), as shown. See close up for Panel (CO), as shown.
  • Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS b. Remove Electrode Wires (CG) from Manifold a. Assemble a Towel Bar (DI) to the Left Side Assembly (CA), and feed the wires through Shelf Table (DL), as shown. the hole in Left Heat Shield (CS), as shown in figure B.
  • Page 9 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS a. Remove the hardware that is pre-assembled a. Assemble the Right Side Shelf Assembly (DA to the Rotisserie Valve (BK) as shown in and DB) to the Cart Assembly by inserting figure A. the Side Shelf tabs into the holes on the Cart Assembly (figure A).
  • Page 10 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS a. Assemble the Infrared Side Burner Wind d. Make sure that the Infrared Zone Side Burner Shield (DF) to the Infrared Support Frame (DD) engages the Side Burner Valve (CC) gas (DC), as shown in figure A. jet, as shown in figure D.
  • Page 11 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS h. Position the Infrared Zone Cooking Grate a. Insert the Grease Tray (CL) into the opening (DJ) on the Infrared Zone Support Frame in the Upper Back Panel (CN), making sure (DC). to engage tracks located under Burner Box (BA).
  • Page 12 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS d. Insert the four Electrode Set, Main Burner Assemble the Door Handle (EJ) to the Left and wires (CG) into the Electronic Ignition Right Door Assembly (EF and EH) as shown in Assembly (CF1), as shown in figure D. figure A.
  • Page 13 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS a. Place the Flame Tamers (BD) into the Burner b. Assemble the top of the Right Door Box Assembly (BA). Assembly (EH) to the Front Brace (CK), by pressing in the door support pin and aligning with the hole located on the top right corner of the door.
  • Page 14 (CC) as shown. a. Position the Regulator hose (CB) through the b. Perform Leak Test. See page 6 of the hole in the Right Side Panel (EB). Cuisinart Safety and Care Manual. ® b. Position the 20 lb propane tank onto the...
  • Page 15 Visit www.cuisinartbbqs.com to complete product registration. Cuisinart Gourmet Barbecues Customer Service: ® 1-800-309-3452 Join the conversation facebook.com/cuisinartbbqs twitter.com/cuisinartbbqs Cuisinart is a registered ® trademark used under license © 2013 Trileaf Distributions Trifeuil Downloaded from www.Manualslib.com manuals search engine...
