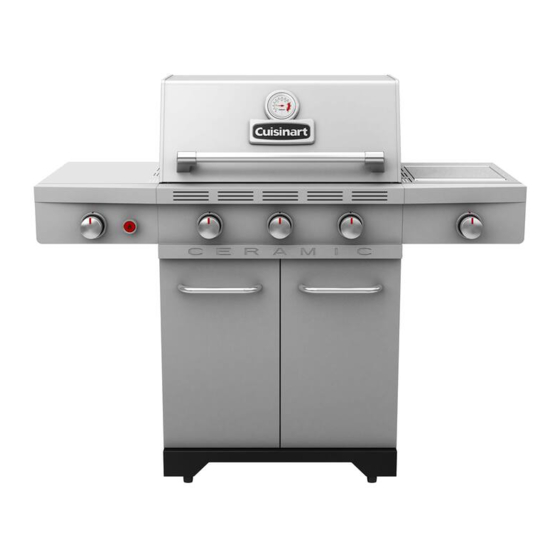

Cuisinart Ceramic 850 85-3126-2 Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Cuisinart
Ceramic 850
®
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Missing or damaged parts should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
LIMITED 5-YEAR WARRANTY
Assemble your grill immediately.
www.cuisinartbbqs.com
ASSEMBLY
MANUAL
85-3126-2 (G53507) Propane
85-3127-0 (G53508) Natural Gas
Manual Revision #: 09102015 PD

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ceramic 850 85-3126-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cuisinart Ceramic 850 85-3126-2

Summary of Contents for Cuisinart Ceramic 850 85-3126-2

  • Page 1 ASSEMBLY MANUAL 85-3126-2 (G53507) Propane Cuisinart Ceramic 850 ® 85-3127-0 (G53508) Natural Gas READ AND SAVE MANUAL FOR FUTURE REFERENCE. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
  • Page 2 H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.cuisinartbbqs.com CAUTION...

  • Page 3: Hardware Pack

    HARDWARE PACK Tools Needed for Assembly No. Description Part Number Qty. 1/4-20UNCx38 Screw 20120-13038-250 • #2 Phillips screwdriver (long and short) 1/4-20UNCx16 Screw 20120-13016-250 • ¼” Slotted screwdriver (long and short) NO. 10-24UNCx13 Screw 20124-13013-250 • Adjustable wrench ST4.2x10 Tapping Screw 22500-42010-137 ST4.2x20 Tapping Screw 22500-42020-137...
  • Page 4 PARTS LIST (PROPANE) FOR 85-3126-2 (G53507) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top lid G535-2000-01 Side Shelf Table, Right G535-7600-01 Lid Handle G535-0002-01 Side Shelf Fascia, Right G535-4100-01 Lid Handle End Cap G358-0004-01 Infrared Support Frame G535-3500-01 Thermometer G512-0085-01...
  • Page 5 EXPLODED DIAGRAM (PROPANE) FOR 85-3126-2 (G53507) EXTRAS Assembly Safe Use Manual & Care Hardware Tank Manual Pack Screw...
  • Page 6 PARTS LIST (NATURAL GAS) FOR 85-3127-0 (G53508) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top lid G535-2000-01 Side Shelf Table, Right G535-7600-01 Lid Handle G535-0002-01 Side Shelf Fascia, Right G535-4100-01 Lid Handle End Cap G358-0004-01 Infrared Support Frame G535-3500-01 Thermometer...
  • Page 7 EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3127-0 (G53508) EXTRAS Assembly Safe Use Manual & Care Hardware Manual Pack...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Separate the 2 different types of wheels, 2 Locking Wheels (ED) and 2 Regular Wheels (EE). Insert the U Pin (#12) into one of the Regular Wheels (EE), as shown in image B. Attach the Regular Wheel (EE) to the front of the Bottom Shelf (EC), and use the U Pin (#12) to secure and tighten.
  • Page 9 ASSEMBLY INSTRUCTIONS c. Assemble the Lower Back Panel (CQ) to the Left Cart Side Panel (EA) and Right Cart Side Panel (EB). YOU WILL NEED: TIP: The top of the lower back panel (CQ) can be identified by the four recesses located on the top of this part.
  • Page 10 ASSEMBLY INSTRUCTIONS THIS STEP REQUIRES 3 PEOPLE. DO NOT ATTEMPT ALONE. EXTREMELY HEAVY. a. Position the Top Lid and Burner Box Assembly (A and B) onto Cart Assembly (C), as shown. Front view Close up - left outside view b. Assemble Burner Box Assembly (A and B) to the Left and Right Cart Side Panels (EA and EB), as shown.
  • Page 11 ASSEMBLY INSTRUCTIONS Attach the Upper Back Panel (CM) to both the Left and Right Cart Side Panels (EA and EB). Only install hardware in the bottom portion of the Upper Back Panel (CM), as shown in figure DO NOT TIGHTEN SCREWS UNTIL SIDE SHELF HAS BEEN INSTALLED.
  • Page 12 ASSEMBLY INSTRUCTIONS YOU WILL NEED: View under left side shelf (back) YOU WILL NEED: NOTE: Beware of sharp edges. View under left side shelf (front) a. Open the lid. Assemble the Right Side Shelf Assembly (DA and DB) to the Cart Assembly by inserting the Side Shelf tabs into the holes on the Cart Assembly (figure A).
  • Page 13 ASSEMBLY INSTRUCTIONS b. Secure using hardware, as shown in figure B, C and D. YOU WILL NEED: View inside burner box YOU WILL NEED: View under right side shelf (back) YOU WILL NEED: NOTE: Beware of sharp edges. View under right side shelf (front)
  • Page 14 ASSEMBLY INSTRUCTIONS a. Remove the hardware that is pre-assembled to the Side Burner Valve bracket (CC), as shown in figure A. b. Insert the Side Burner Valve stem (CC) through the rear of the Right Side Shelf Fascia (DB). Assemble the Side Burner Valve (CC) to the Side Shelf Fascia (DB), using the hardware removed (figure A).
  • Page 15 ASSEMBLY INSTRUCTIONS b. Position the Infrared Zone Side Burner (DD) through the opening in the Infrared Support Frame (DC). Front, right side view c. Make sure that the Infrared Zone Side Burner (DD) engages the Side Burner Valve (CC) gas jet, as shown in figure D.
  • Page 16 ASSEMBLY INSTRUCTIONS f. Position the Infrared Zone Cooking Grate (DG) on the Infrared Zone Support Frame (DC). Front, right side view g. Insert the Infrared Grease Tray (DH) into the back of the Infrared Zone Support Frame (DC), as shown. Back, right side view a.
  • Page 17 ASSEMBLY INSTRUCTIONS c. Insert one “AA” battery into the battery compartment with the positive end facing outward, as shown. Secure using the Electronic Ignition Battery Cap (CF2). Front, left side view TIP: The Electrode set for Main Burner (CG), the Electrode wire for Infrared Zone (DE), the Electrode wire for Rotisserie Burner (BK) can be found fastened together with the Rotisserie Valve (BN) hanging from the...
  • Page 18 ASSEMBLY INSTRUCTIONS a. Remove the hardware that is pre-assembled to the Rotisserie Valve bracket (BN), as shown in figure A. b. Insert the Rotisserie Burner Valve stem (BN) through the rear of the Left Side Shelf Fascia (DK). Assemble the Rotisserie Valve (BL) to the Side Shelf Fascia (DK), using the hardware removed (figure A).
  • Page 19 ASSEMBLY INSTRUCTIONS a. Position the Heat Shield (CN) into the two hooks located on the bottom of the Upper Back Panel (CM), as shown in figure A. Back view Close up, back b. Assemble the Heat Shield (CN) to the bottom of the Front Brace (CK), as shown in figure B.
  • Page 20 ASSEMBLY INSTRUCTIONS a. Assemble the Left and Right Tracks (CO and CP) for the Grease Tray (CL), as shown in figure A-C. Front view b. Both the Left and Right Tracks (CO and CP) should be inserted into the two clips located on the Upper Back Panel (CM), as shown in figure B.
  • Page 21 ASSEMBLY INSTRUCTIONS Assemble the Door Handle (EH) to the Left and Right Door Assembly (EF and EG) as shown in figure A. YOU WILL NEED: a. Assemble the Right Door Assembly (EG), to the Bottom Shelf (EC) by inserting the fixed pin (bottom of door) into the hole provided (figure B).
  • Page 22 ASSEMBLY INSTRUCTIONS To assemble the Ceramic Heat Plates, locate the following: 3-pc. Stainless Steel Ceramic Radiant (BD) Stone (BE) X 24 ATTENTION: For the purpose of safe shipping and transit, the Stainless Steel Radiants and the Ceramic Stones, have been shipped separately, and will require assembly.
  • Page 23 ASSEMBLY INSTRUCTIONS c. Insert the Ceramic Stones (BE) into the openings on the right side of the Stainless Steel Radiant (BD). NOTE: The flat side of the Ceramic Stones (BE) should be facing up. d. Secure the Ceramic Stones (BE) in place by assembling the right frame back onto the Stainless Steel Radiant (BD), as shown in figure F and G.
  • Page 24 ASSEMBLY INSTRUCTIONS e. Secure using one set of the connectors and hitch pins, removed in step 20A, as shown in figures H – J. You will need these parts from Step A: Connector Hitch Pin Close up f. Repeat steps C and D for the left side of the Stainless Steel Radiant (BD) to complete assembly.
  • Page 25 ASSEMBLY INSTRUCTIONS g. Once assembled, position Ceramic Heat Plates (BD + BE) into the Burner Box (BA), as shown in figure L and M. NOTE: The ports in the middle of the heat plate should be at the front of the burner box.
  • Page 26 ASSEMBLY INSTRUCTIONS Place the Cooking Grates (BH) into the Burner Box (BA), as shown. Assemble the Warming Rack (BI) by inserting the fixed pins into the warming rack support bars located on the Burner Box (BA), as shown in figure A and B. Close up...
  • Page 27 Bolt (F4) (already attached) located on the underside of the Bottom Shelf, as shown in figure C. d. Perform Leak Test. See page 5 of the Cuisinart Safety and Care Manual. ® ATTENTION: For your families safety, do not attempt to light this BBQ until...
  • Page 28 FOR NATURAL GAS MODEL ONLY. a. Attach the Natural Gas Hose (CB) to the Side Burner Valve (CC) as shown. b. Perform Leak Test. See page 6 of the Cuisinart Safety and Care Manual. ® ATTENTION: In order to complete installation of your Natural Gas BBQ a 1/2”...

  • Page 30: Join The Conversation

    Visit www.cuisinartbbqs.com to complete product registration. Cuisinart Gourmet Barbecues Customer Service: ® 1-800-309-3452 Join the conversation facebook.com/cuisinartbbqs twitter.com/cuisinartbbqs Cuisinart is a registered ® trademark used under license © 2016 Trileaf Distributions Trifeuil...
