cuisinart

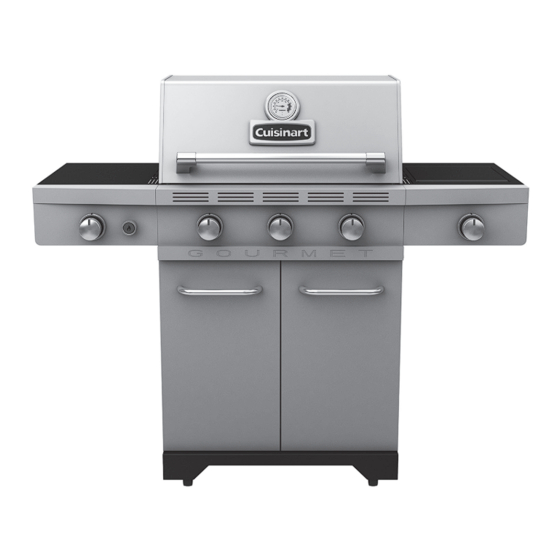

Gourmet INFRARED 810
®
REAd ANd SAvE MANUAL foR fUtURE REfERENcE.
Missing or damaged parts should be claimed within 30 days of purchase.
for product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
LiMitEd 5-YEAR WARRANtY
Assemble your grill immediately.
www.cuisinartbbqs.com
ASSEMBLY
MANUAL
85-3110-8 (G53503) Propane
85-3111-6 (G53504) Natural Gas
Manual Revision #: 22092014 AT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cuisinart Gourmet INFRARED 810 85-3110-8
Summary of Contents for Cuisinart Gourmet INFRARED 810 85-3110-8
- Page 1 ASSEMBLY MANUAL 85-3110-8 (G53503) Propane cuisinart Gourmet INFRARED 810 ® 85-3111-6 (G53504) Natural Gas REAd ANd SAvE MANUAL foR fUtURE REfERENcE. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. for product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
- Page 2 H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES to oRdER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.cuisinartbbqs.com cAUtioN...
-
Page 3: Hardware Pack
HARDWARE PACK tools Needed for Assembly No. Description Part Number Qty. 1/4-20UNCx38 Screw 20120-13038-250 • #2 Phillips screwdriver (long and short) 1/4-20UNCx16 Screw 20120-13016-250 • ¼” Slotted screwdriver (long and short) NO. 10-24UNCx13 Screw 20124-13013-250 • Adjustable wrench ST4.2x10 Tapping Screw 22500-42010-137 ST4.2x20 Tapping Screw 22500-42020-137... - Page 4 PARTS LIST (PROPANE) FOR 85-3110-8 (G53503) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top lid G535-2000-01 Side Shelf Table - Right G535-0400-02 Lid Handle G535-0002-01 Side Shelf Fascia - Right G535-0500-02 Lid Handle End Cap G358-0004-01 Infrared Support Frame G535-3500-01...
- Page 5 EXPLODED DIAGRAM (PROPANE) FOR 85-3110-8 (G53503) EXtRAS Assembly Safe Use Manual & Care Hardware Tank Manual Pack Screw...
- Page 6 PARTS LIST (NATURAL GAS) FOR 85-3111-6 (G53504) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top lid G535-2000-01 Side Shelf Table - Right G535-0400-02 Lid Handle G535-0002-01 Side Shelf Fascia - Right G535-0500-02 Lid Handle End Cap G358-0004-01 Infrared Support Frame G535-3500-01...
- Page 7 EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3111-6 (G53504) EXtRAS Assembly Safe Use Manual & Care Hardware Manual Pack...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS Separate the 2 different types of wheels, 2 Locking Wheels (ED) and 2 Regular Wheels (EE). Insert the U Pin (#12) into one of the Regular Wheels (EE), as shown in image B. Attach the Regular Wheel (EE) to the front of the Bottom Shelf (EC), and use the U Pin (#12) to secure and tighten. - Page 9 ASSEMBLY INSTRUCTIONS c. Assemble the Lower Back Panel (CQ) to the Left Cart Side Panel (EA) and Right Cart Side Panel (EB). YoU WiLL NEEd: tiP: The top of the lower back panel (CQ) can be identified by the four recesses located on the top of this part.
- Page 10 ASSEMBLY INSTRUCTIONS tHiS StEP REQUiRES 3 PEoPLE. do Not AttEMPt ALoNE. EXtREMELY HEAvY. a. Position the Top Lid and Burner Box Assembly (A and B) onto Cart Assembly (C), as shown. Front view Close up - left outside view b. Assemble Burner Box Assembly (A and B) to the Left and Right Cart Side Panels (EA and EB), as shown.
- Page 11 ASSEMBLY INSTRUCTIONS Attach the Upper Back Panel (CM) to both the Left and Right Cart Side Panels (EA and EB). Only install hardware in the bottom portion of the Upper Back Panel (CM), as shown in figure do Not tiGHtEN ScREWS UNtiL SidE SHELf HAS BEEN iNStALLEd.
- Page 12 ASSEMBLY INSTRUCTIONS YoU WiLL NEEd: View under left side shelf (back) YoU WiLL NEEd: NotE: Beware of sharp edges. View under left side shelf (front) a. Open the lid. Assemble the Right Side Shelf Assembly (DA and DB) to the Cart Assembly by inserting the Side Shelf tabs into the holes on the Cart Assembly (figure A).
- Page 13 ASSEMBLY INSTRUCTIONS b. Secure using hardware, as shown in figure B, C and D. YoU WiLL NEEd: View inside burner box YoU WiLL NEEd: View under right side shelf (back) YoU WiLL NEEd: NotE: Beware of sharp edges. View under right side shelf (front)
- Page 14 ASSEMBLY INSTRUCTIONS a. Remove the hardware that is pre-assembled to the Side Burner Valve bracket (CC), as shown in figure A. b. Insert the Side Burner Valve stem (CC) through the rear of the Right Side Shelf Fascia (DB). Assemble the Side Burner Valve (CC) to the Side Shelf Fascia (DB), using the hardware removed (figure A).
- Page 15 ASSEMBLY INSTRUCTIONS b. Position the Infrared Zone Side Burner (DD) through the opening in the Infrared Support Frame (DC). Front, right side view c. Make sure that the Infrared Zone Side Burner (DD) engages the Side Burner Valve (CC) gas jet, as shown in figure D.
- Page 16 ASSEMBLY INSTRUCTIONS f. Position the Infrared Zone Cooking Grate (DG) on the Infrared Zone Support Frame (DC). Front, right side view g. Insert the Infrared Grease Tray (DH) into the back of the Infrared Zone Support Frame (DC), as shown. Back, right side view a.
- Page 17 ASSEMBLY INSTRUCTIONS c. Insert one “AA” battery into the battery compartment with the positive end facing outward, as shown. Secure using the Electronic Ignition Battery Cap (CF2). Front, left side view tiP: The Electrode set for Main Burner (CG), the Electrode wire for Infrared Zone (DE), the Electrode wire for Rotisserie Burner (BH) can be found fastened together with the Rotisserie Valve (BL) hanging from the...
- Page 18 ASSEMBLY INSTRUCTIONS a. Remove the hardware that is pre-assembled to the Rotisserie Valve bracket (BL), as shown in figure A. b. Insert the Rotisserie Burner Valve stem (BL) through the rear of the Left Side Shelf Fascia (DK). Assemble the Rotisserie Valve (BL) to the Side Shelf Fascia (DK), using the hardware removed (figure A).
- Page 19 ASSEMBLY INSTRUCTIONS a. Position the Heat Shield (CN) into the two hooks located on the bottom of the Upper Back Panel (CM), as shown in figure A. Back view Close up, back b. Assemble the Heat Shield (CN) to the bottom of the Front Brace (CK), as shown in figure B.
- Page 20 ASSEMBLY INSTRUCTIONS a. Assemble the Left and Right Tracks (CO and CP) for the Grease Tray (CL), as shown in figure A-C. Front view b. Both the Left and Right Tracks (CO and CP) should be inserted into the two clips located on the Upper Back Panel (CM), as shown in figure B.
- Page 21 ASSEMBLY INSTRUCTIONS Assemble the Door Handle (EH) to the Left and Right Door Assembly (EF and EG) as shown in figure A. YoU WiLL NEEd: a. Assemble the Right Door Assembly (EG), to the Bottom Shelf (EC) by inserting the fixed pin (bottom of door) into the hole provided (figure B).
- Page 22 ASSEMBLY INSTRUCTIONS Place the Flame Tamers (BD) into the Burner Box (BA). a. Place the Cooking Grates (BE) into the Burner Box (BA), as shown. b. Assemble the Warming Rack (BF) by inserting the fixed pins into the warming rack support bars located on the Burner Box (BA), as shown in figure A and B.
- Page 23 Attach the regulator coupling nut to the LP cylinder valve. Be careful not to cross thread. Hand tighten only. d. Perform Leak Test. See page 5 of the Cuisinart Safety and Care Manual. ® AttENtioN: For your families safety,...
- Page 24 NAtURAL GAS ModEL oNLY. a. Attach the Natural Gas Hose (CB) to the Side Burner Valve (CC) as shown. b. Perform Leak Test. See page 6 of the Cuisinart Safety and Care Manual. ® AttENtioN: In order to complete installation of your Natural Gas BBQ a 1/2”...
-
Page 25: Join The Conversation
Gourmet Barbecues customer Service: ® 1-800-309-3452 Join the conversation facebook.com/cuisinartbbqs twitter.com/cuisinartbbqs Cuisinart is a registered ® trademark used under license © 2015 Trileaf Distributions Trifeuil...
