Summary of Contents for VERITAS Isabelle

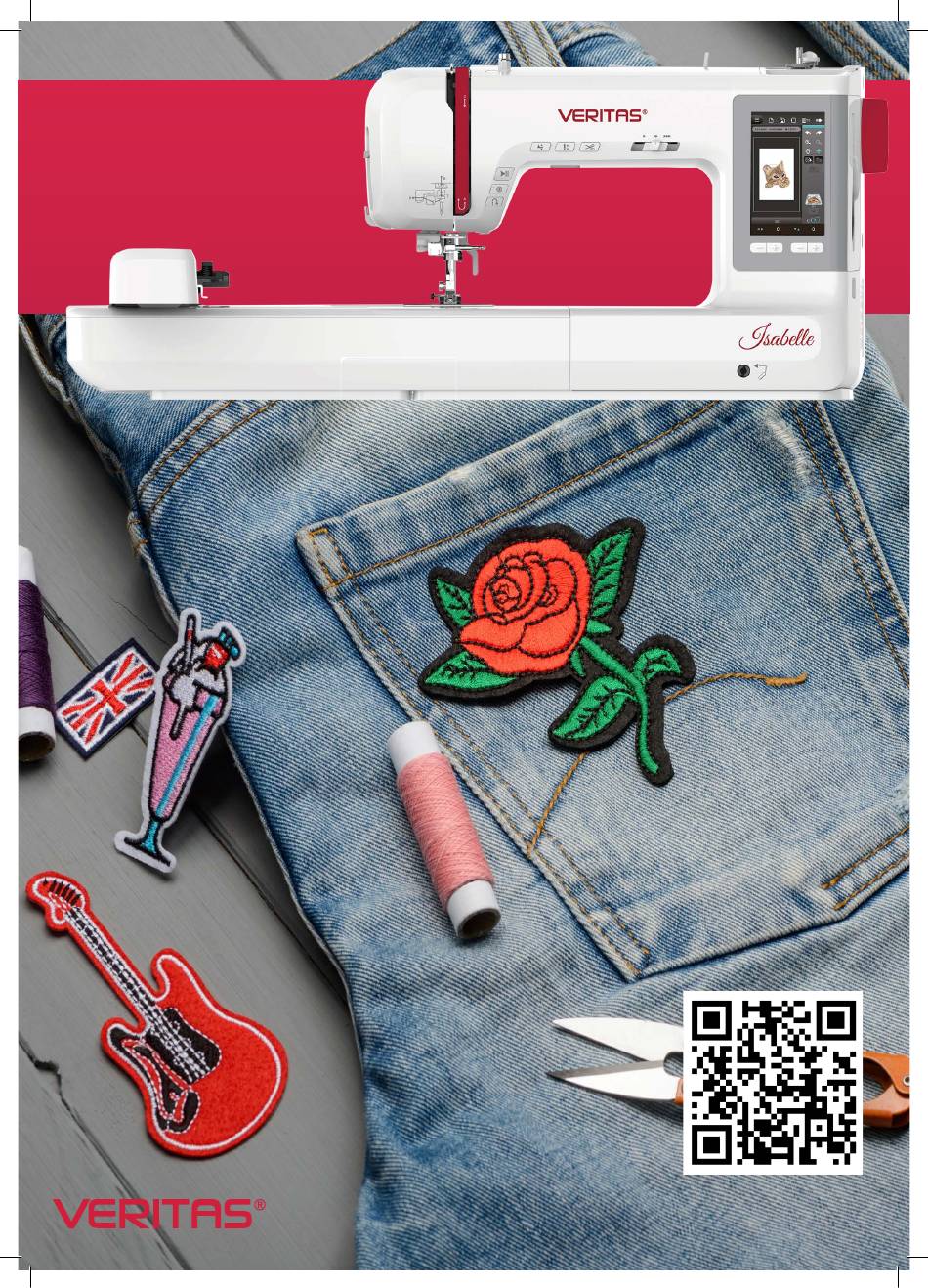

- Page 1 VERITAS Isabelle Quick Start Guide full safety instructions and manual: https://isabelle.veritas.guide/...
- Page 2 Editing embroidery pattern ......................15 This document is an abridged print version of the full operating instructions. You can view and download the full operating instructions at https://isabelle.veritas.guide/ Observe the complete operating instructions and the safety instructions to avoid personal injury and damage to property.
- Page 3 Technical Data Rated voltage 100-240V~/ 50-60 Hz Power rating - Total 90 watts approx. 480 x 295 x 200 mm Dimensions - Handle folded in (WxHxD) Weight - Sewing machine approx. 9,8 kg Needle system 130/705H Radio interference suppression According to EU directive Protection class Footer type FC-210...
- Page 4 ① Horizontal spool pin ② Upper thread guide ③ Bobbin thread guide ④ Second spool pin hole ⑤ Bobbin winder stopper ⑥ Bobbin winder spindle ⑦ Bobbin thread cutter ⑧ Magnet Back ① Handwheel ② Stylus pen ③ USB port ④...
- Page 5 Accessories ① All purpose presser foot ② Zipper foot ③ Satin stitch foot ④ Button sewing foot ⑤ Blind hem foot ⑥ Overcasting foot ⑦ Gathering foot ⑧ Quilting foot ⑨ Straight stitch foot ⑩ Rolled hem foot ⑪ Cording foot ⑫...
- Page 6 Connecting machine to power source ATTENTION! Always make sure that the machine is unplugged from power source and the main switch is off ("O"), when the ma- chine is not in use and before inserting or removing parts. Before connecting the power supply, make sure that the voltage shown on the rating plate is conforming with your main power.
- Page 7 Winding the lower thread 1. Place the thread and spool holder onto the spool pin. For better se- wing quality, choose a proper size of the spool holder for the thread and attach it next to the spool. 2. Pull the thread from the spool through the upper thread guide. 3.
- Page 8 Inserting the bobbin with the lower thread ATTENTION! Set the main power switch to the "0 OFF" position. NOTE: When inserting or removing the bobbin, the needle and the presser foot must be fully raised. Remove the transparent bobbin cover by pressing the release lever ① to the right. Insert the bobbin into the bob- bin case so that the thread runs counter-clockwise (arrow direction) Pull the thread through the slit (A).
- Page 9 Using the needle threader 10. Pull the thread to the left, pass through the guide plate from back to the front and then through the thread guide disk. ① Guide plate ② Thread guide disk NOTE: Please make sure the thread is actually pass through the guide plate and thread guide disk, or it might cause thread cannot threading the needle eye successfully.
- Page 10 Replacing the needle Change the needles regularly, especially at the first signs of problems when sewing. WARNING: Set the main power switch to the "0 OFF" position. picture 1: Turn the handwheel toward you to raise the needle then loosen the needle clamp screw to remove the needle.
- Page 11 Starting to sew 1. Turn the power switch to on ("I"). 2. Place the fabric under the presser foot, pass the thread un- der the presser foot, and then pull out about 10cm of thread toward the rear of the machine. ①...
- Page 12 Starting to embroider Open Google Play Store / Apple Store and install "EZ Creator" app. Do the registration. Start your VERITAS Isabelle, conntect to your WIFI router and registrate at your machine with the same registration data as in your app.
- Page 13 Change the straight stitch needle plate and tighten the screws. ① Screws Inserting a proper needle, keep the flat side of the shaft to the back. ① Flat side of the shaft ② Needle stopper Move the embroidery foot lever upwards. Tilt the embroidery foot and insert it from left to right so that the notch fits into the presser foot bar, and then push the embroidery foot upwards until it is aligned with...
- Page 14 Install the embroidery hoop Attention! Please always use a stabilizer and a high quality thread. You can find more information at the full manual: www.isabelle.veritas.guide...
- Page 15 Page switching icon to view other edit options. ① Move layers ② Text ③ Lock aspect ratio ④ Rotate ⑤ Horizontal mirror function ⑥ Vertical mirror function ⑦ Check the embroidery pattern size ⑧ Delete ⑨ Duplicate ⑩ Page switching free embroidery software: https://veritas.isabelle.guide/...
- Page 16 Veritas Sewing veritassewing Veritas Sewing QSG_A4_Isabelle_EN_v_28092023...
