Summary of Contents for Volkswagen VAS 642 001

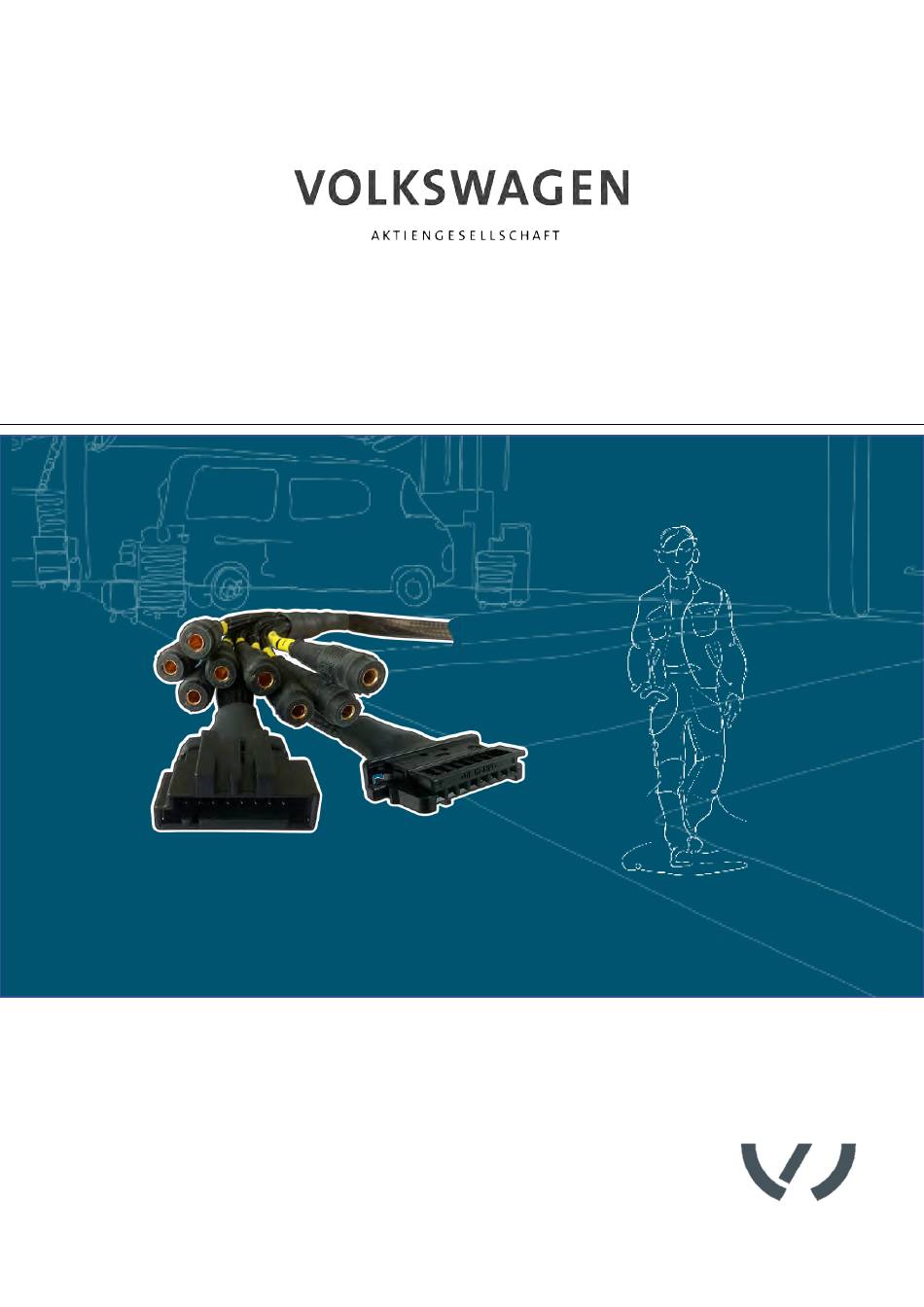

- Page 1 A d a p t e r f o r M e a s u r in g E q u i p m e n t V A S 6 4 2 0 0 1 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 2 Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 3 Important safety instructions Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Cleaning Disposal Maintenance HELP Warranty Customer service 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 4 STODIA's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, STODIA GmbH is your dependable partner at every production stage, from prototyping to series production. 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 5 This operating manual is only valid for the following product: Item number 22100602 Designation Adapter for Measuring Equipment VAS 642 001 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury!
- Page 6 Defective and damaged products cannot guarantee protection against electrical voltage! • Do not let the product come into contact with chemicals! • Replace a defective or damaged product immediately! • Never attempt to repair or tamper with the product! 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 7 Use only the plug connections on the vehicle that the manufacturer has specified in the guided fault finding. In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. Requirements for the target group...

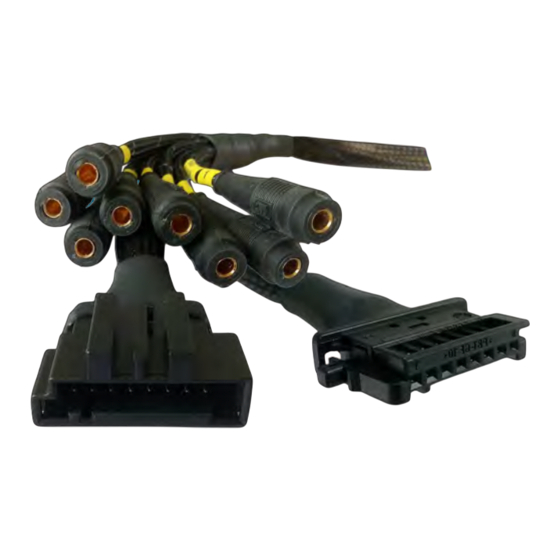

- Page 8 Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Adapter cable (2) USB stick with operating manual Design Product design: (1) Socket, 8-pin (2) Test sockets (3) Plug, 8-pin 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 9 The test sockets are labeled with a number that matches the corresponding pin and the corresponding socket for the plug (see the “Wiring diagram” section). (1) Line marking (2) Test socket 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 10 EN | Product description Wiring diagram 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 11 Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31°C, Max. 85% decreasing linearly to 50% at 40°C Condensation not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 12 Connect the plug to the disconnected socket of the connection you want to test. Connect the high-voltage measurement module to the test sockets. You can now perform measurements in accordance with the guided fault finding. 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 13 Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 14 Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. STODIA GmbH Battery and Diagnostics Technology Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5371 / 945 93 96-0 service@stodia.de www.stodia.de 32.VW.2210.0602_BA_V02_EN VAS 642 001...
- Page 15 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Version 01/2024 32.VW.2210.0602_BA_V02_EN VAS 642 001...
