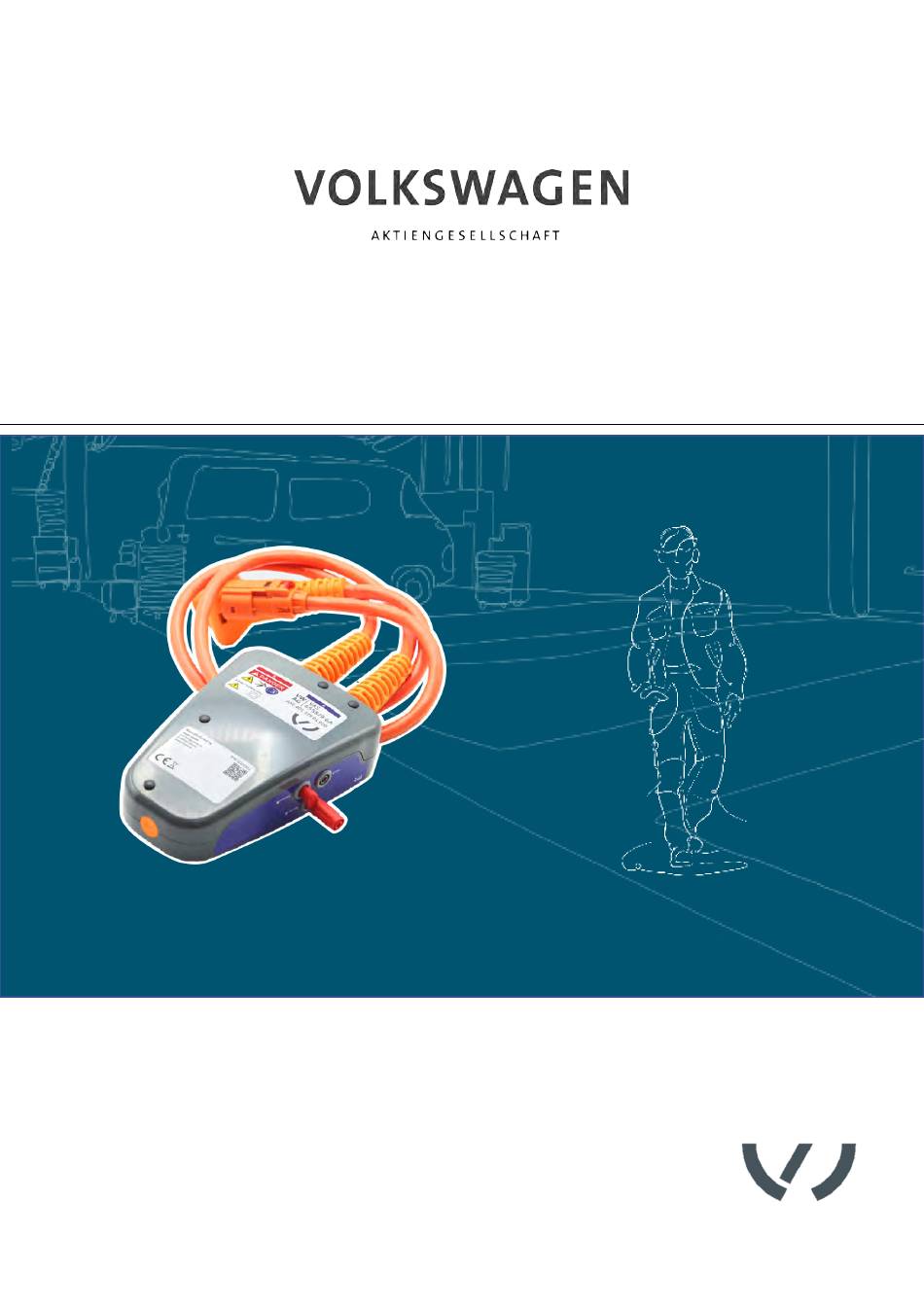

- Page 1 Operating manual H i g h - v o lt a g e t e s t a da p t e r V A S 6 5 5 8 / 9 - 6 A 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A...
-
Page 2: Impressum
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 3: Table Of Contents
Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Detaching the plug connections Cleaning Storage Disposal Maintenance HELP Warranty Customer service 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 4: Introduction
With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22102831 Designation High-voltage test adapter VAS 6558/9-6A Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Intended Use
Furthermore, the operator is responsible for ensuring the following: • The measurement adapter is always in perfect working order. • The regular inspection intervals for the measurement adapter are observed and recorded. 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 7: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) High-voltage test adapter (2) USB stick with operating manual Design Product design: (1) Plug (2) Test sockets (see wiring diagram) (3) Socket 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 8: Symbols And Connections
The test seal identifies the product as having been approved for use in workshops and production facilities belonging to the vehicle manufacturer. QR code for accessing the product documentation on mobile devices. Schematic wiring diagram (see wiring diagram) 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 9: Wiring Diagram
The product has the following connection areas: • • Connection area TP1 has the following sockets: Connector Function Ground socket Positive socket Negative socket Connection area TP2 has the following sockets: Connector Function Pilot socket Wiring diagram 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 10: Technical Data
Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31 °C, Max. 85% decreasing linearly to 50% at 40 °C Pollution rating Condensation Not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 11: Operation
Connect the high-voltage measurement module to the high-voltage test adapter according to the guided fault finding. If necessary, bridge the pilot sockets according to the guided fault finding. You can now perform measurements in accordance with the guided fault finding. 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 12: Detaching The Plug Connections
Make sure that the lever (red) is pulled out. Push in the tongue (orange) and pull the plug connection apart as far as it will go. Push the latch (black) in and pull the plug connection completely apart. The plug connection is now detached. 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 13: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... -
Page 14: Help
Always include the serial number with any product queries. This number is found on the product. Stodia GmbH Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@stodia.de www.stodia.de 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A... - Page 15 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Version 08/2022 11.VW.2210.2831_BA_V02_EN VAS 6558/9-6A...
