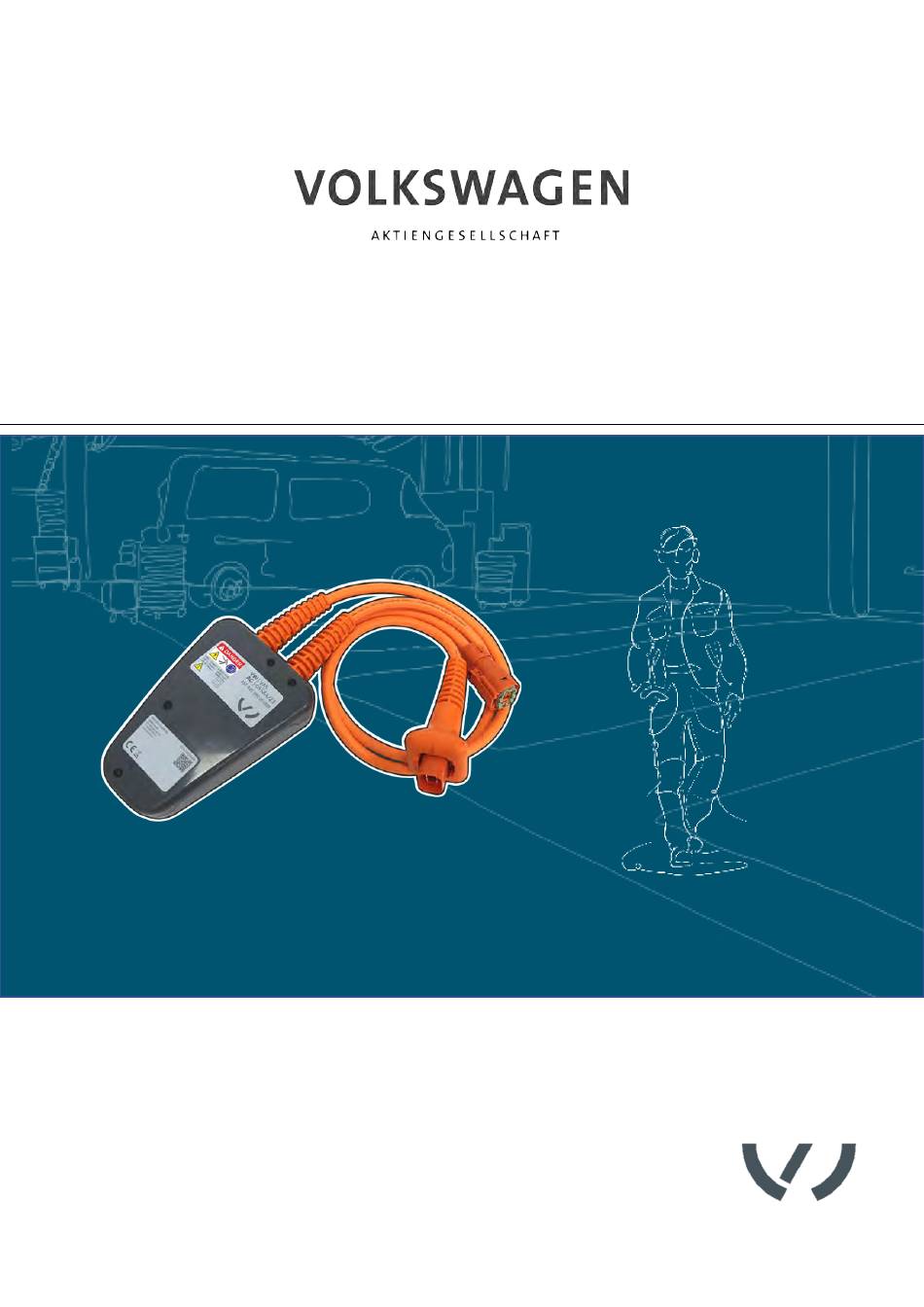

- Page 1 Operating manual H i g h - v o lt a g e t e s t a da p t e r V A S 6 5 5 8 A / 2 3 12.VW.2210.1406_BA_V04_EN VAS 6558A/23...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 3: Table Of Contents
Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Detaching the plug connections Cleaning Storage and transportation Disposal Maintenance HELP Warranty Customer service 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 4: Introduction
With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22101406 Designation High-voltage test adapter VAS 6558A/23 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Intended Use
The operator is responsible for ensuring that all staff working with the test adapter fulfills the requirements for the target group. Furthermore, the operator is responsible for ensuring the following: • The test adapter is always in perfect working order. • The regular inspection intervals for the test adapter are observed and recorded. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 7: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Carrying case (2) High-voltage test adapter (3) USB stick with operating manual Design Product design: (1) Plug (2) Test sockets (see wiring diagram) (3) Socket 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 8: Symbols And Connections
Indicates which measurement categories the product is intended for according to IEC CAT I Umax = 1.000V CAT II Umax = 600V 61010-31. CAT III Umax = 300V QR code for accessing the operating manual on mobile devices. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 9: Wiring Diagram
EN | Product description The product has the following sockets: Connector Function Ground socket Positive socket Negative socket Wiring diagram 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 10: Technical Data
Elevation above sea Max. 2000 m No limitation. level Humidity Max. 80% up to 31 °C, Max. 85% decreasing linearly to 50% at 40°C Pollution rating Condensation Not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 11: Operation
Connect the socket to the disconnected plug of the connection you want to test. Lock the connection. Connect the high-voltage measurement module to the high-voltage test adapter according to the guided fault finding. You can now perform measurements in accordance with the guided fault finding. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 12: Detaching The Plug Connections
The plug connections have an automatic locking mechanism. To detach a plug connection: Pull out the locking mechanism (red). Push in and hold the tongue (orange). Pull the plug connection apart. The plug connection is now detached. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 13: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... -
Page 14: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. Stodia GmbH Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@stodia.de www.stodia.de 12.VW.2210.1406_BA_V04_EN VAS 6558A/23... - Page 15 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Version 04/2022 12.VW.2210.1406_BA_V04_EN VAS 6558A/23...
