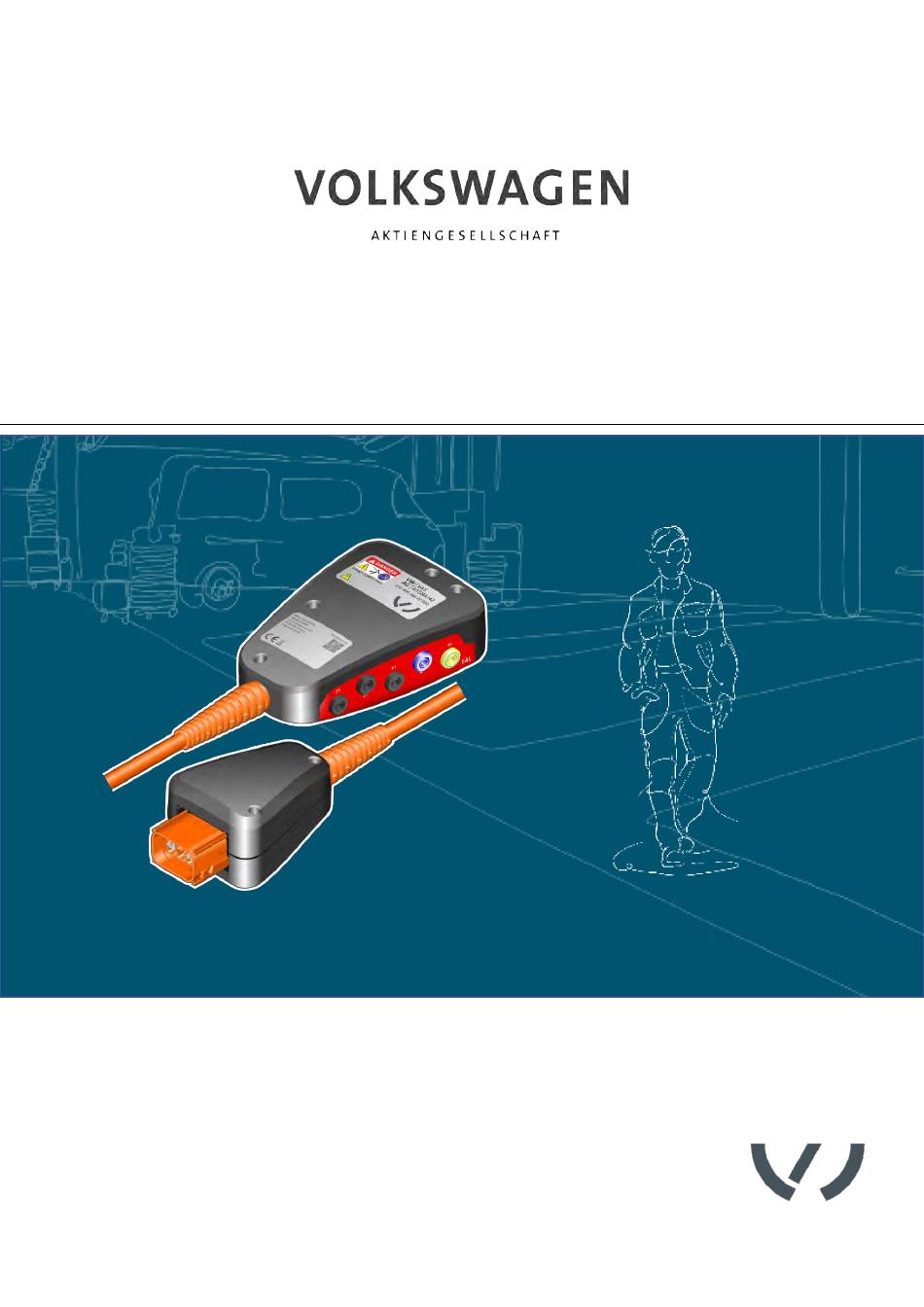

- Page 1 Operating manual H i g h - v o lt a g e t e s t a da p t e r V A S 6 5 5 8 A / 4 2 12.VW.2210.2770_BA_V01_EN VAS 6558A/42...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 3: Table Of Contents
Important safety instructions Intended use Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Cleaning Storage Disposal Maintenance HELP Warranty Customer service 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 4: Introduction
Stodia's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22102770 Designation High-voltage test adapter VAS 6558A/42 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Intended Use
The product is suitable for the following measurements: • Insulation resistance measurement • Continuity measurement In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 7: Requirements For The Target Group
The operator is also responsible for ensuring that the following conditions are met: • The measurement adapter is always in perfect working order. • The regular inspection intervals for the measurement adapter are observed and recorded. 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 8: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) High-voltage test adapter (2) USB stick with operating manual Design Product design: (1) Test sockets (see wiring diagram) (2) Plug 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 9: Symbols And Connections
Indicates that the product is intended for measurements up to a maximum of AC 300 V in accordance with IEC 61010-31. The maximum permissible input and output currents are specified. Schematic wiring diagram (see wiring diagram) 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 10: Wiring Diagram
EN | Product description The product has the following sockets: Connector Function L1 socket L2 socket L3 socket N socket PE socket Wiring diagram 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 11: Technical Data
-20°C to 60°C Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31°C, Max. 85% decreasing linearly to 50% at 40°C Condensation not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 12: Operation
• Use the product only on high-voltage systems and components that have been certifiably de-energized! WARNING Danger of fatal electric shock! The electrical voltage in high-voltage systems is lethal and can cause death by electric shock! • Use the product only for the applications intended by the vehicle manufacturer! 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 13: Startup
2. Connect the plug to the disconnected socket of the connection you want to test. 3. Connect the high-voltage measurement module to the high-voltage test adapter according to the guided fault finding. You can now perform measurements in accordance with the guided fault finding. 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 14: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... -
Page 15: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. Stodia GmbH Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5373 – 92197-0 Fax: +49 (0) 5373 – 92197-88 service@stodia.de www.stodia.de 12.VW.2210.2770_BA_V01_EN VAS 6558A/42... - Page 16 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 03/2022 12.VW.2210.2770_BA_V01_EN VAS 6558A/42...
