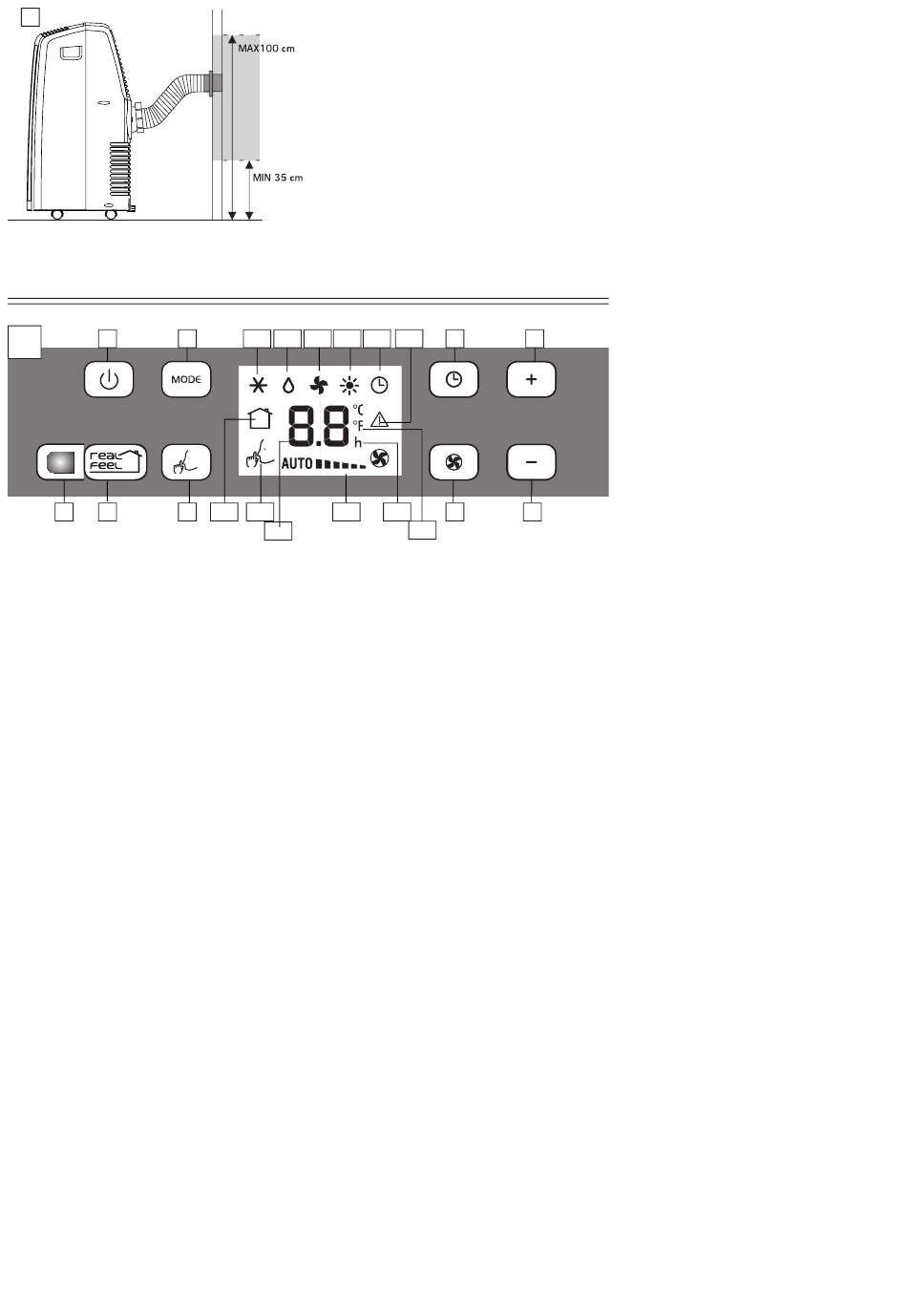

CONTROL PANEL
C1 C2
C
C9 C8 C7
DESCRIPTION OF THE CONTROL PANEL (C)
C1 ON/STAND-BY button
C2 MODE selection button (conditioning, dehumidifying, fan,
heating)
C3 Timer button
C4 Increase temperature/programmed operation time button
C5 Decrease temperature/programmed operation time button
C6 Fan speed selection button (LOW/MED/HIGH/AUTO)
C7 WHISPER COOL selection button
C8 REAL FEEL selection button
C9 REAL FEEL light
C10 Air-conditioning symbol
C11 Dehumidifying symbol
C12 Fan symbol
When the hose B2 is not connected, the drilled hole can be
closed with the flange cap B1.
MAX 39 in
NOTE: When installing the air conditioner semi-permanently,
you should leave a door slightly open little as 1/2" (1 cm) to
guarantee correct ventilation and room pressure.
NOTE: Keep the air hoses as short and free of curves as possible
to avoid constrictions.
MIN 14 in
C10 C11 C12 C13 C14
C16 C17 C19
C18
C13 Heating symbol
C14 Timer symbol
C15 Alarm symbol
C16 REAL FEEL symbol
C17 WHISPER COOL symbol
C18 Temperature value set, programmed delayed ON/OFF time
C19 Fan speed indicator
C20 Timer indicator
C21 Temperature selected scale indicator
Note: The panel buttons are backlit but only the buttons
relevant to the active function will be on.
After few seconds of the control panel inactivity, its brightness
will be automatically reduced and in the next few minutes it will
be further reduced.
