Geutebruck G-Cam/HZBC-1320 Quick Manual

This guide is for quick installing and connecting the G-Cam/HZBC-1320 Zoom Box IP Camera. For more details,
please refer to the User's Manual.
Installation Notices
• This camera must be installed by qualified personnel and the installation should conform to all local codes.
• Do not replace batteries of the camera. Risk of explosion may occur if the battery is replaced by an incorrect type.
• To use an external power supply, please contact the camera manufacturer to confirm that the power supply uses
the same power specifications as the camera. The power supply must comply with the LPS requirements.

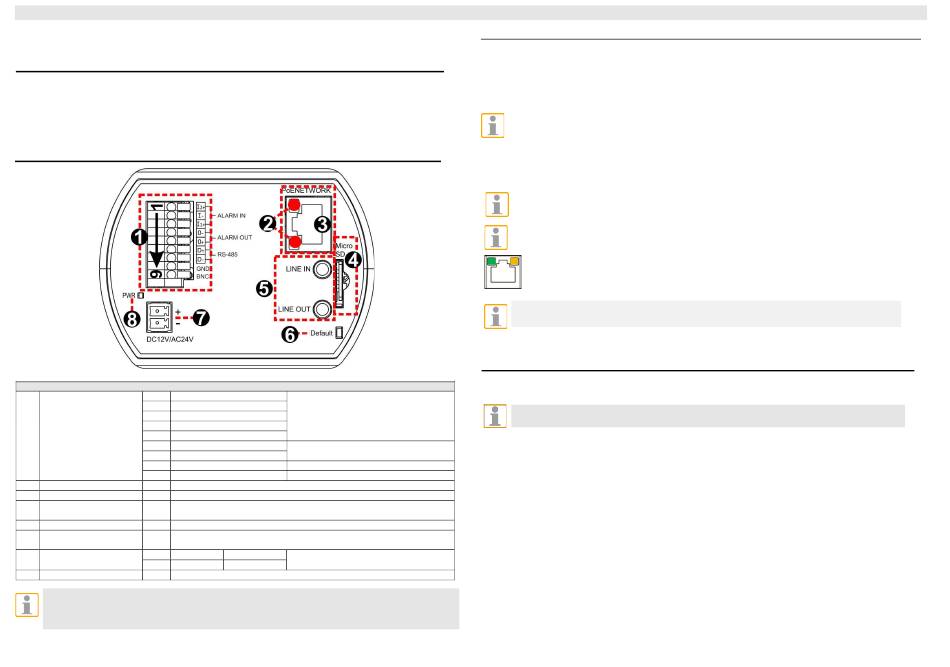

Camera's Connectors
No. Connector Pin
1
Alarm In 2 +
2 Alarm In –
3 Alarm In 1 +
4 Alarm Out –
5 Alarm Out +
1 Alarm I/O
6 D +
7 D −
8 GND
9 BNC
- For network connection and activity indication
2 Network LEDs
- For network and PoE connections
3 PoE Network (RJ-45)
Insert the microSD card into the card slot to store videos and snapshots.
-
4 microSD Card Slot
Do not remove the microSD card when the camera is powered on.
- Two-way audio transmission
5 Audio I/O (Line In/Out)
Press the button for at least 1 second to restore the camera's factory
-
6 Default Button
settings.
+ DC12V +
Power
7
– DC12V –
(DC12V / AC24V)
- Power LED lights up when the camera is powered on.
8 Power LED
NOTE: It is not recommended to record with the microSD card for 24/7 continuously, as it may not be able to
support long term continuous data read/write. Please contact the manufacturer of the microSD card for
information regarding the reliability and the life expectancy.
G-Cam/HZBC-1320 Zoom Box IP Camera Quick Guide
Definition Remarks
Alarm connection
#Do NOT connect external power supply
to the alarm I/O connector of the IP
camera.
RS-485 connection
Ground connection
For analog video output
AC24V 1
Power connection
AC24V 2
Camera Cabling
Please follow the instructions below for cable connections.
Power Connection
Use a DC 12V / AC 24V power adaptor and plug it to the power connector of the camera and the power outlet.
Alternatively, users can use an Ethernet cable and connect it to the RJ-45 connector of the camera and a Power
Sourcing Equipment (PSE) switch.
NOTE: If the device is powered over Ethernet, make sure the PSE is connected to the network.
Connect one end of the Ethernet cable to the RJ-45 connector of the camera and plug the other end of the cable to
the network switch or PC.
NOTE: In some cases, Ethernet crossover cable might be needed when connecting the camera
directly to the PC.
NOTE: Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check
the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
IMPORTANT: We recommend operating IP cameras only in isolated networks or behind suitable
firewalls.
Initial login to the IP camera
The first time you access the IP camera, you will be asked to change your password. You must perform this
step in order to continue.
NOTE: Passwords must be at least 12 characters long, with an uppercase letter, a lowercase letter,
a numeric character and a special character ~@#$%^&*_-+=:;<>
For more information, refer to the user manual of the IP camera.
