Geutebruck G-Cam/HSD-1620 Quick Manual

This quick guide describes how to quickly install and connect the G-Cam/HSD-1620 network PTZ
camera. Further information can be found in the IP camera installation/user manual.
shop.geutebrueck.com
Installation Notices
• This camera must be installed by qualified personnel and the installation should conform to all local codes.
• Do not replace batteries of the camera. Risk of explosion may occur if the battery is replaced by an incorrect
type.
• The product is intended to be supplied by a UL-listed power supply unit intended to be supplied with "L.P.S." (or
"Limited Power Source") and is designed for and is designed for 24Vac, 50/60Hz, 3.21A min. (supply via PoE).
• For safety concern, please hook up the camera with the anti-drop chain of the
pendant when installing the camera. For more information about pendant and
anti-drop chain, please contact the camera manufacturer.

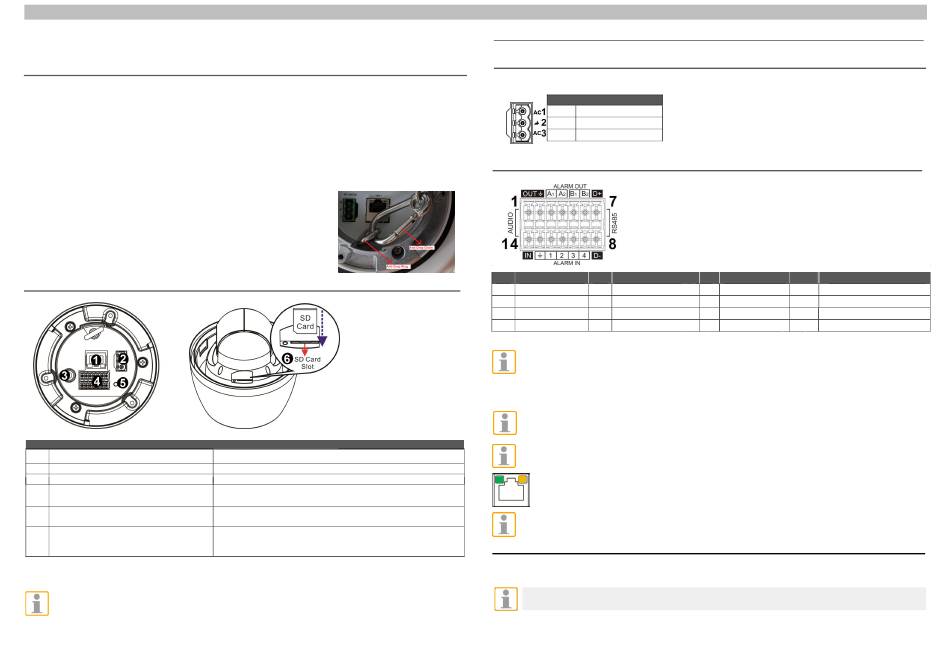

C amera's Connectors
No. Connector
1
RJ-45 Port
2
Power Connector (AC24V)
3
BNC
4
Audio/Alarm I/O & RS-485 Connector*
5
Reset Button
6
SD Card Slot
*Do NOT connect external power supply to the alarm I/O connector of the camera, RS-485 is not supported.
NOTE: It is not recommended to record with the SD card for 24/7 continuously, as it may not be able to support
long term continuous data read/write. Please contact the manufacturer of the SD card for information regarding
the reliability and the life expectancy.
Quick Start Guide G-Cam/HSD-1620 Network PTZ Camera
Definition
For network and PoE+ connections
AC24V power connection
For analog video output
Audio/Alarm I/O & RS-485 connection
Press the button for at least 1 second to restore the factory
settings of the camera.
Open the dome cover to reveal the SD Card Slot. Insert the SD
card into the card slot to store videos and snapshots. Do not
remove the SD card when the camera is powered on.
Camera Cabling
Please follow the instructions below for cable connections.
P ower Connection
To power up the camera, connect the AC24V power adaptor to the power connector of the camera and the power
outlet. Refer to the diagram and pin definition below for AC24V power connection.
Pin Definition
AC24V
1
2 GND
3 AC24V
Audio/AIarm I/O & RS-485 Connection
Please refer to the diagram and pin definition tables below for audio/alarm I/O & RS-485 connection.
Pin Definition Pin Definition
1 Audio Out 5 Alarm Out B1
2 GND (Audio I/O) 6 Alarm Out B2
RS-485 D+(Optional) 11
3 Alarm Out A1 7
RS-485 D- (Optional)
4 Alarm Out A2 8
NOTE: If the device is powered over Ethernet, make sure the PSE is connected to the network.
Connect one end of the Ethernet cable to the RJ-45 connector of the camera and plug the other end of the
cable to the network switch or PC.
NOTE: In some cases, Ethernet crossover cable might be needed when connecting the camera
directly to the PC.
NOTE: Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check
the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
IMPORTANT: We recommend operating IP cameras only in isolated networks or behind suitable
firewalls.
Initial login to the IP camera
The first time you access the IP camera, you will be asked to change your password. You must perform this
step in order to continue.
NOTE: Passwords must be at least 12 characters long, with an uppercase letter, a
lowercase letter, a numeric character and a special character ~@#$%^&*_-+=:;<>
For more information, refer to the user manual of the IP camera.
Or PoE supply of the camera with the following
requirements for the Power Source Equipment
(PSE): PoE+ IEEE802.3at, class 4, max 25.5 W
Pin Definition Pin Definition
13 GND (Alarm I/O and RS-485)
9 Alarm In 4
10 Alarm In 3 14 Audio In
Alarm In 2
12 Alarm In 1
