Geutebruck G-Cam/HFD-1430 Quick Manual

This guide is for quick installing and connecting the G-Cam/HFD-1430 IR Dome IP Camera. For more details,
please refer to the User's Manual.
Installation Notices
• This camera must be installed by qualified personnel and the installation should conform to all local codes.
• Do not replace batteries of the camera. Risk of explosion may occur if the battery is replaced by an incorrect type.
• To use an external power supply, please contact the camera manufacturer to confirm that the power supply uses
the same power specifications as the camera. The power supply must comply with the LPS requirements.

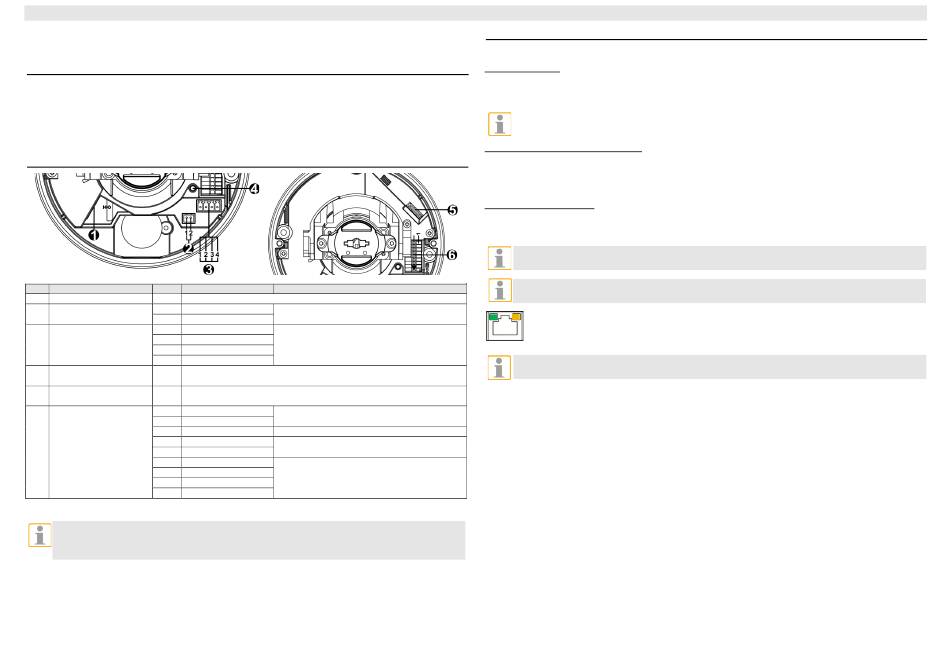

Camera's Connectors
No. Connector Definition
No. Connector Pin
1 RJ-45 For network and PoE connections
-
1 BNC
2 BNC*
2 GND
1 AC 24V 1
Power 2 AC 24V 2
3
(DC 12V / AC 24V) 3 DC 12V 1
4 DC 12V 2
Press the button for at least 1 second to restore the camera's factory
4 Default Button
-
settings.
Insert the microSD card into the card slot to store videos and snapshots.
5 microSD Card Slot
-
Do not remove the microSD card when the camera is powered on.
1 Audio In L
2 Audio In R
3 GND
4 Audio Out L
6 Alarm & Audio I/O 5 Audio Out R
6 Alarm Out +
7 Alarm Out −
8 Alarm In +
9 Alarm In −
*Please contact the manufacturer for the compatible BNC cable.
NOTE: It is not recommended to record with the microSD card for 24/7 continuously, as it may not be able to
support long term continuous data read/write. Please contact the manufacturer of the microSD card for
information regarding the reliability and the life expectancy.
G-Cam/HFD-1430 IR Dome IP Camera Quick Guide
Remarks
Definition Remarks
For analog video output
Power connection
Audio In (Line In)
Ground connection
Audio Out (Line Out)
Alarm connection
#Do NOT connect external power supply to the
alarm I/O connector of the IP camera .
Camera Cabling
Please follow the instructions below for cable connections.
Power Connection
Please use a DC 12V / AC 24V power adaptor and plug it to the camera and the power outlet. Alternatively, users can
use an Ethernet cable and connect it to the RJ-45 connector of the camera and a Power Sourcing Equipment (PSE)
switch.
NOTE: If PoE is used, make sure PSE is in use in the network.
Zero Downtime Power Switching (ZDT)
Please connect the camera to an AC 24V or PoE power source as the main power supply, and then connect DC 12V
as the secondary power supply. If the main power source fails, the camera will switch power input seamlessly to the
DC12V port until the main power source is restored.
Ethernet Cable Connection
Connect one end of the Ethernet cable to the RJ-45 connector of the camera, and plug the other end of the cable to
the network switch or PC.
NOTE: In some cases, Ethernet crossover cable might be needed when connecting the camera directly to the
PC.
NOTE: Check the status of the link indicator and the activity indicator LEDs. If the LEDs are unlit, please
check the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
NOTE: The ITE is to be connected only to PoE networks without routing to the outside plant or equivalent
description.
