Brinkmann PRO SERIES 6345
Owner's Manual
Shop genuine replacement parts for Brinkmann PRO
SERIES 6345
Find Your Brinkmann Grill Parts - Select From 1001 Models
-------- Manual continues below --------
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Brinkmann Pro 6345
Summary of Contents for Brinkmann Pro 6345
- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Brinkmann PRO SERIES 6345 Owner's Manual Shop genuine replacement parts for Brinkmann PRO SERIES 6345 Find Your Brinkmann Grill Parts - Select From 1001 Models -------- Manual continues below --------...
- Page 2 6345 Gas Outdoor Grill Parrilla a Gas para Uso Exterior OWNER’S MANUAL / MANUAL DEL PROPIETARIO ASSEMBLY AND OPERATING INSTRUCTIONS INSTRUCCIONES DE ARMADO Y OPERACIÓN SAVE THIS MANUAL FOR FUTURE REFERENCE GUARDE ESTE MANUAL PARA REFERENCIA FUTURA WARNING/ADVERTENCIA NOTICE TO INSTALLER: HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND INSTRUCTIONS LEAVE THESE INSTRUCTIONS ARE IGNORED.
- Page 3 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
- Page 4 TABLE OF CONTENTS General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use.
- Page 5 GENERAL WARNINGS WARNING • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal or wood briquets in a gas grill. Flavoring chips must be contained in a metal smoking box to contain ash and prevent fires. •...
- Page 6 WARNING • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill be situated at least 10 feet (3.1 m) from buildings.
- Page 7 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...
- Page 8 WARNING FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •...
- Page 9 WARNING • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. WARNING The pressure regulator and hose assembly supplied with your gas grill must be used. •...
- Page 10 DANGER LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. •...
- Page 11 6. Check each place listed (A– K) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure in hose. 9. Turn control knobs to "OFF" position. 10.
- Page 12 WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. WARNING LIGHTING INSTRUCTIONS: Follow the instructions exactly. 1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside the grill.
- Page 13 LIGHTING THE SIDE BURNER: 1. Open lid before lighting side burner. 2. Make sure control knob is in the "OFF" position. 3. Push and turn side burner control knob to the "HIGH" position. 4. Press the electronic igniter on the main control panel and hold for 3 –...
- Page 14 WARNING OPERATING THE GRILL: Never use charcoal or wood briquets in a gas grill. Flavoring chips must be contained in a metal smoking box to contain ash and prevent fires. Read and follow all warnings and instructions contained in the preceding sections of this manual. BREAKING IN YOUR GRILL: •...
- Page 15 ROTISSERIE COOKING: • Your grill was pre-drilled from factory to include mounting holes for a rotisserie (sold separately). Do not use a rotisserie not specifically manufactured for this grill. • Read and follow all instructions provided with the rotisserie. Save instructions for future reference. •...
- Page 16 • To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not in use. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 or 800-527-0717. • Wash cooking grills and heat distribution plates with hot, soapy water, rinse well and dry. Lightly coat cooking grill with vegetable oil or vegetable oil spray.
- Page 17 CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors and liquids. • Keep the ventilation openings of the cylinder enclosure free and clear of debris. • Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under Proper Care and Maintenance).
- Page 18 COOKING GRILLS • Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used to remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the cooking grills.
- Page 19 TROUBLE SHOOTING Problem: Possible Causes: 1. Check LP cylinder fuel level. 2. Bad electrode spark. Check to see if the grill will match light. Electrode or collector may need adjustment. • Burner will not light 3. Burner may not be properly seated. 4.
- Page 20 If the fuel line is blocked, replace with a new hose / regulator assembly. • If an obstruction is suspected in the hose / regulator assembly, orifice or gas valves call Brinkmann Customer Service at 800-527-0717. Question: Why does my LP gas grill have a low flame or a flame with orange / yellow color? Answer: You need to purge air from the gas line or reset the regulator's flow limiting device.
- Page 21 Regulator Resetting Procedure under Connecting LP Cylinder and Hose/Regulator to Grill. This procedure should be done every time a new LP gas tank is connected to your grill. For help, refer to your owner’s manual or call Brinkmann Customer Service at 800-527-0717.
- Page 22 PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS CARD CONTENTS before you begin the installation process. PARTS CARD CONTAINS: Qty. Qty. Hex Nut Wrench 14 Star Washers AA/1.5V Alkaline Battery Wheel Axle Bolts Screwdriver Wheel Washers 26 M6 X 12mm Bolts...
- Page 23 READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. ™ The following provided tools are required to assemble this Brinkmann ProSeries 6345 Gas Grill: • Flathead Screwdriver •...
- Page 24 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
- Page 25 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary. Step 1 Assemble bottom cart shelf and right side cart panel by using two M6 X 12mm bolts and star...
- Page 26 Step 4 With the help of a friend, turn the assembled cart over. Try to minimize the stress to the bottom Locking Caster plate. Hex Nut Wrench Step 5 Attach locking casters to the bottom of the left side cart panel. Tighten caster bolts securely using hex nut wrench provided in parts card.
- Page 27 Step 7 Snap wheel hub caps onto the Hubcap outside of wheels as illustrated. Step 8 With the help of a friend, turn the cart to its upright position. Step 9 Attach front panel to lower left and right leg of cart assembly using two M6 X 12mm bolts and star washers.
- Page 28 Step 11 Attach heat shield plate and front panel to the front of the cart frame Heat Shield Plate assembly using two M6 X 12mm bolts with star washers. Step 12 Heat Shield Plate Attach heat shield plate to the back of the cart frame assembly using two M6 X 12mm bolts with star washers.
- Page 29 Note: When performing Step 14, Lift grill body from front and Grill Body rear panels to avoid injury to Assembly hands and fingers. Be sure to pass hose/regulator assembly above cart frame crossbar. Step 14 With the help of a friend, place grill body assembly on assembled cart frame.
- Page 30 Side Table Step 15 Front Panel Side Table Attach the side table front panel to side table with two M5 x 10mm bolts. Step 16 Attach the side burner front panel to Side Burner side burner base with two Side Burner Front Panel M5 x 10mm bolts.
- Page 31 Step 18 Attach the side burner assembly to the right side of the grill body. Insert two M6 x 12mm bolts halfway into both right legs. Place side burner assembly over bolts and slide toward front of grill, then tighten securely.
- Page 32 Side Burner Step 21 Control Knob Place the bezel over the control knob mounting stem and position Bezel over holes in side burner base and side burner valve assembly. Attach with two M4 bolts with lock washers which come with valve. Then install the side burner control knob onto valve stem.
- Page 33 Step 25 Warming Rack Place the heat distribution plates on lower level of grill body assembly directly above burners. Cooking Grills Heat Distribution Step 26 Plates Place cooking grills on support ribs directly above heat distribution plates. Step 27 Place warming rack in grooves so Grooves that it sits above the cooking grills.

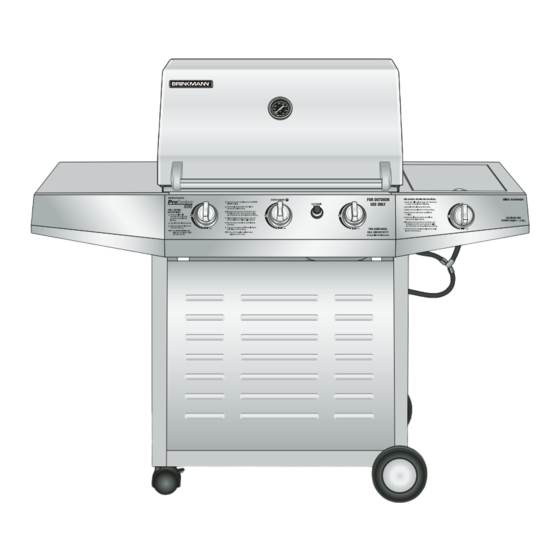

- Page 34 ™ ProSeries 6345 (Assembled)
