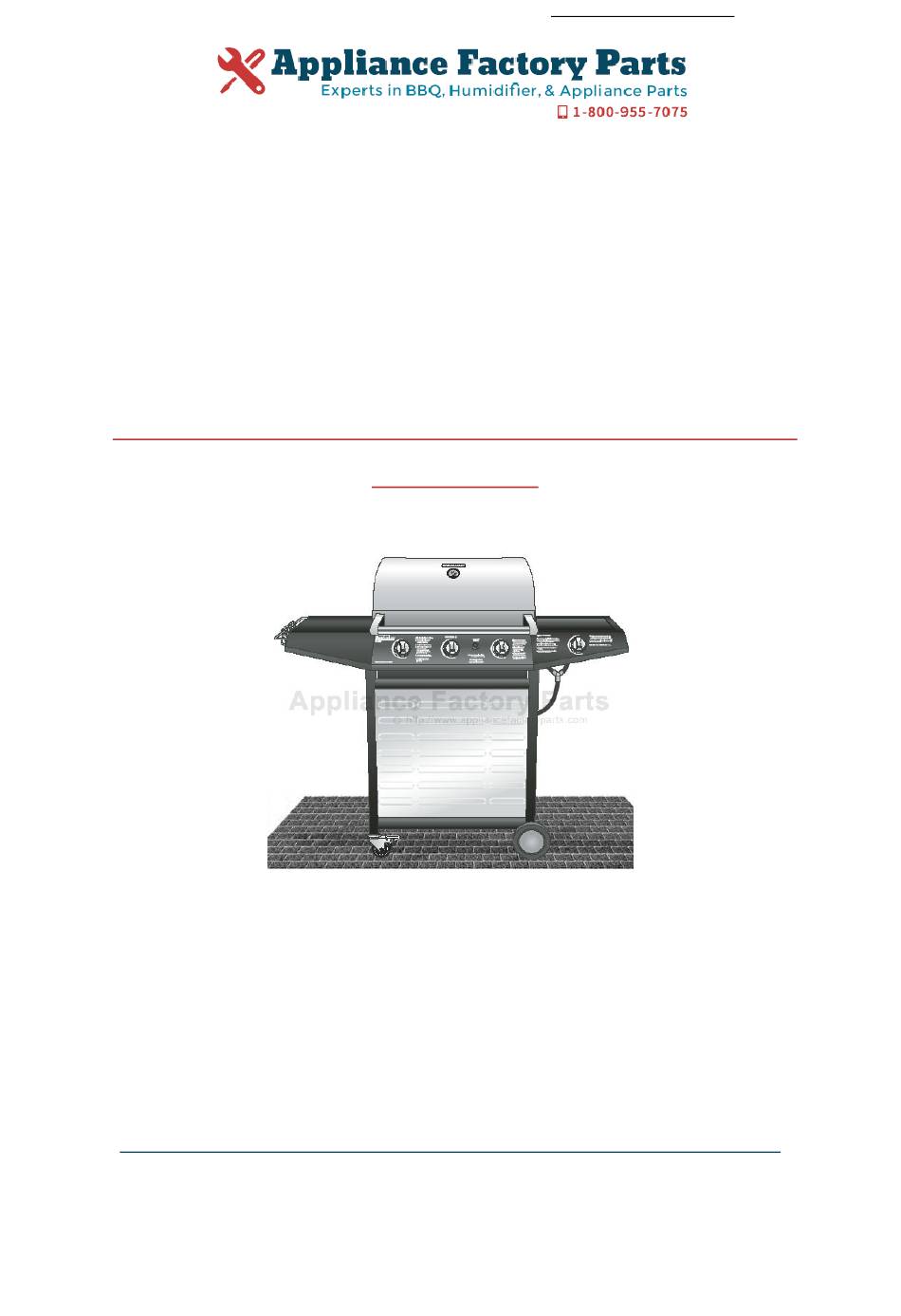

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Brinkmann 810-6330-W Owner's Manual Shop genuine replacement parts for Brinkmann 810-6330-W Find Your Brinkmann Grill Parts - Select From 1001 Models -------- Manual continues below --------...
  • Page 2 6330 Heavy-Duty Gas Grill OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE WARNING HAZARDOUS EXPLOSION MAY NOTICE TO INSTALLER: RESULT IF THESE WARNINGS AND LEAVE THESE INSTRUCTIONS INSTRUCTIONS ARE IGNORED. READ WITH THE GRILL OWNER FOR AND FOLLOW ALL WARNINGS AND FUTURE REFERENCE.
  • Page 3 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use.

  • Page 5: General Warnings

    GENERAL WARNINGS WARNING • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal briquets or lighter fluid in a gas grill. • Leak test all connections before first use, even if grill was purchased fully assembled and after each tank refill.

  • Page 6: Installation And Lp Cylinder Specifications And Safe Use

    WARNING • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill be situated at least 10 feet (3.1 m) from buildings.
  • Page 7 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...

  • Page 8: Connecting Lp Cylinder And Hose / Regulator To Grill

    WARNING FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •...
  • Page 9 WARNING • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. WARNING The pressure regulator and hose assembly supplied with your gas grill must be used. •...

  • Page 10: Leak Testing

    DANGER LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. •...

  • Page 11: Pre-Start Check List

    6. Check each place listed (A– K) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure in hose. 9. Turn control knobs to "OFF" position. 10.

  • Page 12: Lighting Instructions

    WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. WARNING LIGHTING INSTRUCTIONS: Follow the instructions exactly. 1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside the grill.
  • Page 13 LIGHTING THE SIDE BURNER: 1. Open lid before lighting side burner. 2. Make sure control knob is in the "OFF" position. 3. Push and turn side burner control knob to the "HIGH" position. 4. Press the electronic igniter on the main control panel and hold for 3 –...

  • Page 14: Operating Grill And Helpful Hints

    WARNING OPERATING THE GRILL: Never use Charcoal or Lighter Fluid inside your Gas Grill. Read and follow all warnings and instructions contained in the preceding sections of this manual. BREAKING IN YOUR GRILL: • In manufacturing and preserving the components of your grill, oil residue may be present on the burner and cooking surfaces of your grill.
  • Page 15 ROTISSERIE COOKING: • Your grill was pre-drilled from factory to include mounting holes for a rotisserie (sold separately). Do not use a rotisserie not specifically manufactured for this grill. • Read and follow all instructions provided with the rotisserie. Save instructions for future reference. •...

  • Page 16: Proper Care And Maintenance

    • To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not in use. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 or 800-527-0717. • Wash cooking grills and heat distribution plates with hot, soapy water, rinse well and dry. Lightly coat cooking grill with vegetable oil or vegetable oil spray.
  • Page 17 CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors and liquids. • Keep the ventilation openings of the cylinder enclosure free and clear of debris. • Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under Proper Care and Maintenance).

  • Page 18: Transporting And Storage

    These nests can cause fires in burner tubes or under grill. • If storing the grill outdoors, cover the grill with a grill cover for protection from the weather. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 or 800-527-0717.

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING Problem: Possible Causes: 1. Check LP cylinder fuel level. 2. Bad electrode spark. Check to see if the grill will match light. Electrode or collector may need adjustment. • Burner will not light 3. Burner may not be properly seated. 4.

  • Page 20: Frequently Asked Questions

    If the fuel line is blocked, replace with a new hose / regulator assembly. • If an obstruction is suspected in the hose / regulator assembly, orifice or gas valves call Brinkmann Customer Service at 800-527-0717. Question: Why does my LP gas grill have a low flame or a flame with orange / yellow color? Answer: You need to purge air from the gas line or reset the regulator's flow limiting device.
  • Page 21 Regulator Resetting Procedure under Connecting LP Cylinder and Hose/Regulator to Grill. This procedure should be done every time a new LP gas tank is connected to your grill. For help, refer to your owner’s manual or call Brinkmann Customer Service at 800-527-0717.

  • Page 22: Parts List And Assembly Instructions

    PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before you begin the installation process. PARTS BAG CONTAINS: Qty. Qty. Hex nut wrench 14 Star washers AA/1.5V Alkaline battery Wheel axle bolts Screwdriver Wheel washers 24 M6 X 12mm bolts...
  • Page 23 WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. The estimated time of assembly for this grill is approximately 15 minutes. The following provided tools are required to assemble this Brinkmann ProSeries 6330 Grill: • Flathead Screwdriver • Hex Nut Wrench...
  • Page 24 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
  • Page 25 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary. Step 1 Assemble bottom cart shelf and right side cart panel by using two M6 X 12mm bolts and star washers...
  • Page 26 Step 3 With the help of a friend, turn the assembled cart over. Try to minimize the stress to the bottom plate. Locking Caster Step 4 Attach locking casters to the bottom of the left side cart panel. Tighten caster bolts securely using hex nut Hex Nut Wrench wrench provided in parts pack.
  • Page 27 Step 6 Snap wheel hub caps onto the outside of wheels as illustrated. Hubcap Step 7 With the help of a friend, turn the cart to its upright position. Heat Shield Plate Step 8 Tank Heat Shield Attach tank heat shield to heat shield plate using one #8 self-tapping screw.
  • Page 28 Step 10 Attach heat shield plate and front panel to the front of the cart frame Heat Shield Plate assembly using two M6 X 12mm bolts with star washers. Heat Shield Plate Step 11 Attach heat shield plate to the back of the cart frame assembly using two M6 X 12mm bolts with star washers.
  • Page 29 Note: When performing Step 13, Lift grill body from front and Grill Body Assembly rear panels to avoid injury to hands and fingers. Be sure to pass hose/regulator assembly above cart frame crossbar. Step 13 With the help of a friend, place grill body assembly on assembled cart frame.
  • Page 30 Step 14 Attach side table to left side of cart frame assembly. Insert four M6 X 12mm bolts halfway into cart frame assembly. Step 15 Place table over bolts and slide toward front of grill, then tighten securely. Fasten side table front panel to grill body with one M6 X 12mm bolt.
  • Page 31 Step 18 Attach the hose heat shield to the right side of the cart frame using Hose two #8 self-tapping screws. Heat Shield Step 19 Burner Venturi Remove two bolts and washers from the side burner valve. Insert Side the side burner valve assembly Burner through the hole in the side burner Valve...
  • Page 32 Step 21 Attach side burner igniter lead wire to the electrode as illustrated. Side Burner Igniter Lead Electrode Side burner grate Step 22 Place side burner grate over side burner. Step 23 Insert grease tray into opening on backside of grill. Make sure to slide tray onto tracks as illustrated.
  • Page 33 Step 24 Warming Rack Place the porcelain coated heat distribution plates on lower level of grill body assembly directly above burners. Cooking Grills Heat Distribution Step 25 Plates Place porcelain cast iron cooking grills on support ribs directly above porcelain coated heat distribution plates.

  • Page 34: Grilling Accessories

    Step 28 Insert tank lock wire through two small holes in cart base as illustrated. Tank Lock Wire ProSeries 6330 (Assembled) 6330 MAXIMUM SIDE BURNER WEIGHT = 15 lbs.
  • Page 35 ACCESSORIES PROFESSIONAL SHISH-KABOB SKEWERS RIB RACK These heavy-duty, 18" shish-kabob skewers are extra-long for fabulous Chrome-plated rack can greatly increase the cooking capacity of your grill. Holds ribs, chicken halves, restaurant style kabobs. Made of rust resistant stainless potatoes and corn vertically to triple cooking capacity. steel to last for years.
  • Page 36 The reusable Marinade Injector includes a heavy-duty stainless steel needle and heavy-gauge plastic syringe to last for years. 812-5059-0 LOOK FOR THESE AND OTHER BRINKMANN ACCESSORIES AT YOUR LOCAL RETAILER WHERE SMOKERS ARE SOLD, OR ORDER DIRECT BY CALLING 800-468-5252.
  • Page 37 • This warranty does not cover surface scratches, rust or heat damage to the finish, which is considered normal wear. • The Brinkmann Corporation may elect to repair or replace damaged units covered by the terms of this warranty. • This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
