User's Manual
FOR YOUR SAFETY: This product must be installed and serviced by a professional service technician,
qualified in hot water boiler and heater installation and maintenance. Improper installation and/or operation
could create carbon monoxide gas in flue gases which could cause serious injury, property damage, or
death. Improper installation and/or operation will void the warranty.
If the information in these instructions is
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency, or gas
supplier.

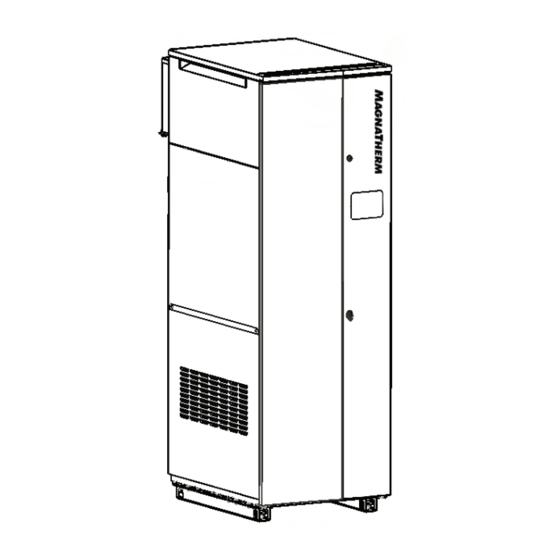

User's Manual for
M
Modulating Boiler
Model MGH1600
1,600 MBTU/h
Model MGH2000
1,999 MBTU/h
Model MGH2500
2,499 MBTU/h
Model MGH3000
3,000 MBTU/h
Model MGH3500
3,500 MBTU/h
Model MGH4000
4,000 MBTU/h
WARNING
T
AGNA
HERM
Water Heater
Model MGV1600
1,600 MBTU/h
Model MGV2000
1,999 MBTU/h
Model MGV2500
2,499 MBTU/h
Model MGV3000
3,000 MBTU/h
Model MGV3500
3,500 MBTU/h
Model MGV4000
4,000 MBTU/h
Assurez-vous de bien suivres les instructions
données dans cette notice pour réduire au
minimum le risque d'incendie ou d'explosion ou
pour éviter tout dommage matériel, toute blessure
ou la mort.
Ne pas entreposer ni utiliser d'essence ou ni
d'autres vapeurs ou liquides inflammables dans
le à proximité de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareils.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones dans le bâtiment où vous vous trovez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le sservice des incendies.
L'installation et l'entretien doivent être assurés par
un installateur ou un service d'entretien qualifié ou
par le fournisseur de gaz.
Doc. 1277C
®
AVERTISSEMENT

Advertisement

loading
Need help?

Need help?

Do you have a question about the LAARS MAGNATHERM MGH1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bradford White LAARS MAGNATHERM MGH1600

  • Page 1 User’s Manual Doc. 1277C User’s Manual for AGNA HERM ® Modulating Boiler Water Heater Model MGH1600 Model MGV1600 1,600 MBTU/h 1,600 MBTU/h Model MGH2000 Model MGV2000 1,999 MBTU/h 1,999 MBTU/h Model MGH2500 Model MGV2500 2,499 MBTU/h 2,499 MBTU/h Model MGH3000 Model MGV3000 3,000 MBTU/h 3,000 MBTU/h...
  • Page 2 LAARS Heating Systems Page 1 CONTENTS Familiarizing yourself with the Laars MagnaTherm ..1 FOR YOUR SAFETY, PLEASE READ THIS BEFORE OPERATING ....2 What to Do If You Smell Gas ..........2 Lighting the Unit ..............2 Turning Off the Gas to the Unit ..........2 POUR VOTRE SÉCURITÉ, LISEZ AVANT DE METTRE EN MARCHE ......3 Que Faire si Vous Sentez une Odeur de Gaz ......3...
  • Page 3 MagnaTherm Boilers and Water Heaters Page 2 Start-Up and Shut-Down Decal. Located on the inside of the right side door. FOR YOUR SAFETY READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
  • Page 4 TO TURN OFF GAS TO APPLIANCE Turn off all electric power to the appliance if service is to be performed. LAARS Heating Systems Page 3 Open front doors. Set the thermostat to lowest setting. Turn off manual gas valve. Valve is off when valve handle is at a right angle to gas pipe. Close front doors.
  • Page 5 MagnaTherm Boilers and Water Heaters Page 4 SHUTTING DOWN THE MAGNATHERM It may sometimes be necessary to shut down the MagnaTherm. Here are the steps required to do this: 1. Switch off the main electrical disconnect switch. 2. Open the front access doors and close the main manual gas valve. 3.
  • Page 6 LAARS Heating Systems Page 5 CONTROLS AND INDICATORS Touch Screen Display Power Switch Each MagnaTherm has one burner and one burner controller. A complete lead lag system can include up to eight MagnaTherms. After the system starts, the Touch Screen will automatically present the Home screen: The icon for each burner controller will appear in one of four colors:...
  • Page 7 MagnaTherm Boilers and Water Heaters Page 6 ABOUT LOCKOUTS, HOLDS, AND ALERTS The system responds to three kinds of trouble indications: • A”lockout” is caused by a serious problem that might involve a safety issue. Once the controller enters a lockout, the burners will shut down, and will not be allowed to run again until the cause of the problem is corrected, and you reset the control system.
  • Page 8 LAARS Heating Systems Page 7 GENERAL CARE Keep the area around the MagnaTherm clear and free from combustible materials, gasoline and other flammable vapors and liquids. Clean the jacket surfaces with a damp cloth and mild soap. Do not use flammable cleaning materials. Keep the vent terminal free of obstructions.
