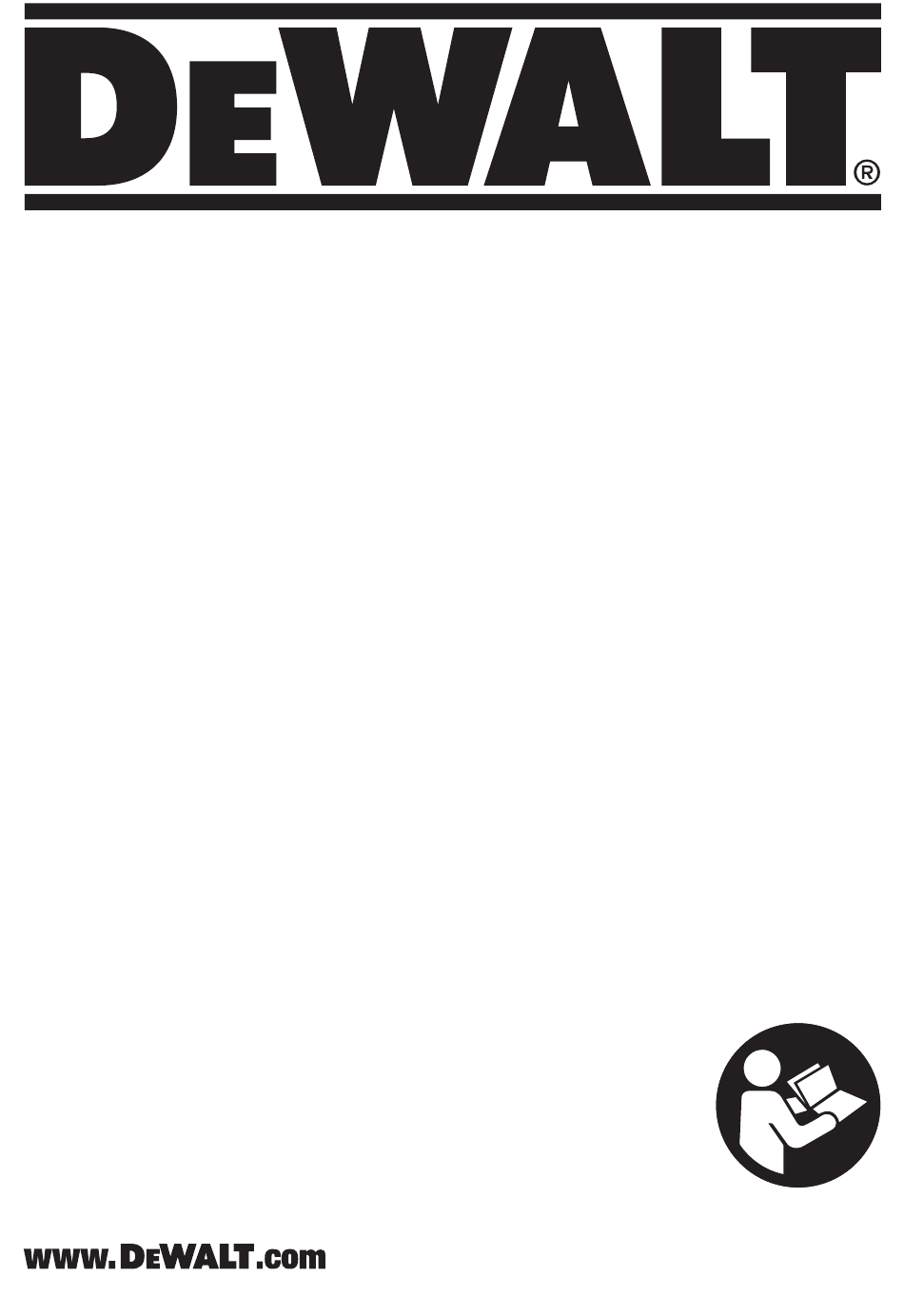

  • Page 1 DCD150...
  • Page 2 Fig. A Fig. B XXXX XX XX Copyright D WALT...
  • Page 3 Fig. C1 Fig. C2 Fig. C3 Fig. D Fig. E...
  • Page 4 Fig. F Fig. G Fig. H Fig. I...
  • Page 5 English CORE DRILL DCD150 WARNING: Read all safety warnings, instructions, Handheld 12–38 illustrations, and specifications in this manual, Stand 12–38 including the battery and charger sections provided in an original tool manual or the separate Batteries and Handheld Chargers manual. Manuals can be obtained by contacting Customer Service (refer to the back page of this manual).
  • Page 6 English The undersigned is responsible for compilation of the technical d ) Do not abuse the cord. Never use the cord for carrying, file and makes this declaration on behalf of D WALT. pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 7 English Safety Instructions for All Operations these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. • Wear ear protectors. Exposure to noise can cause hearing loss. e ) Maintain power tools and accessories. Check for •...
  • Page 8 Main handle • Risk of personal injury due to prolonged use. Intended Use Package Contents Your DCD150 Diamond Core Drill has been designed for dry The package contains: drilling into masonry materials such as brick, breeze block, etc., 1 Diamond drilling machine with a dry diamond core bit in conjunction with a dust extractor.
  • Page 9 This adaptor is included with the System. This feature senses the motion of the tool and shuts WALT POWERSHIFT® DCD150 Core Drill Kit. the tool down if excessive. The red heavy load indicator and 3.
  • Page 10 English Regulating the Water Flow (Fig. F) Switching On and Off (Fig. A) The water tap  on the side handle can be adjusted to  18  WARNING: DO NOT lock the switch ON during handheld regulate the flow of cooling water towards the drill bit. use.
  • Page 11 English Wet Drilling Optional Accessories 1. Connect the core drill to an appropriate water supply WARNING: Since accessories, other than those offered by system, such as the recommended DCE6820 D WALT 18V XR WALT, have not been tested with this product, use of such Water tank.
  • Page 12 English Troubleshooting If your core drill seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your repair agent. Problem Probable cause Solution Core bit does not cut Material too hard for core bit. Choose a more appropriate core bit (with softer segments).
  • Page 13 English Problem Probable cause Solution no water is flowing The flow of water is blocked. 1. Stop drilling. The water source is empty or hindered. 2. Close the water valve. 3. Close the water supply source. 4. Disconnect the battery and store it safely. 5. Disconnect the drill from the stand and check if the water inlet hole is not clogged on the drill side.
  • Page 14 Belgique et WALT ‑ Belgium BVBA Tel: NL 32 15 47 37 63 www.dewalt.be luxembourg België en luxemburg enduser.BE@sBDinc.com Egide Walschaertsstraat 16 Tel: FR 32 15 47 37 64 2800 Mechelen Fax: 32 15 47 37 99 Danmark WALT (Stanley Black&Decker AS)

This manual is also suitable for:

Dcd150x2
