Cordless Diamond Drill – #4285

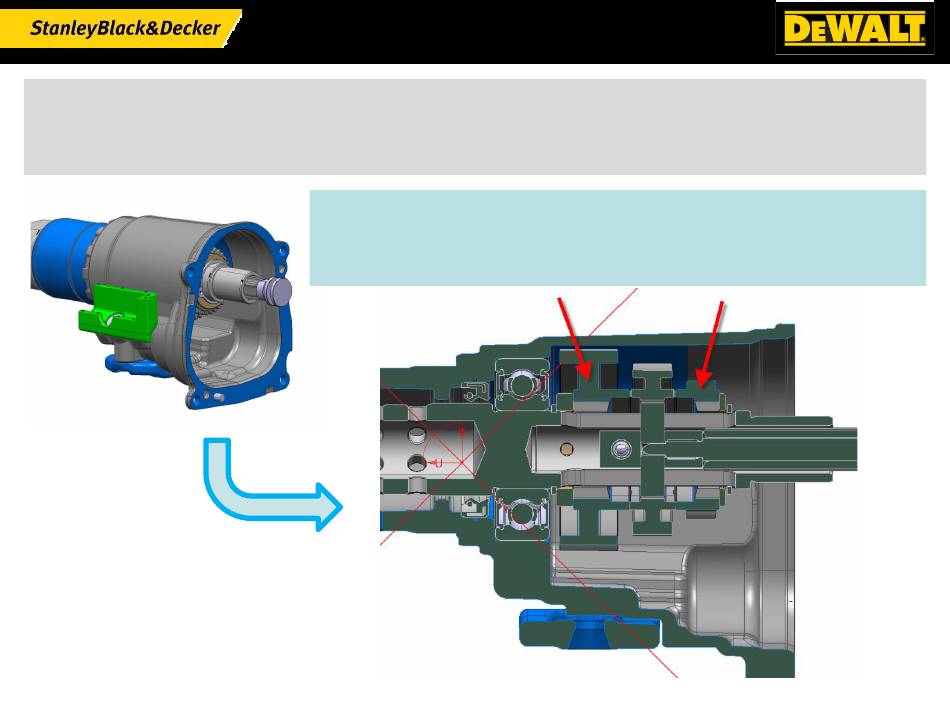

In case SERVICE has to open the DD Unit Gearbox for repair and requires to
remove the GEARS on the spindle we need to ensure that the parts marked
with
red arrow
are
assembled in the orientation shown
!
When replacing/removing the gears from the spindle
please be aware that the ones marked with red arrow
have an orientation for assembly !
