REACT ALS GMBa
Instructions for Use
Key to symbols
Symbols on the machine
This product complies with applicable EU directives
Symbols in these Instructions for Use
Warning/Caution!
Risk of crushing
Application area

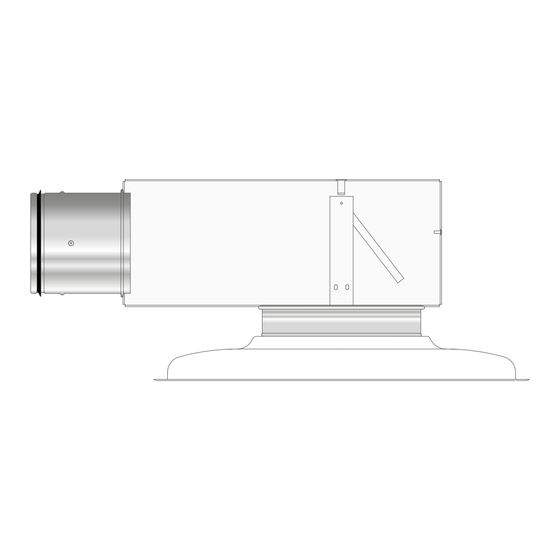

The product is a commissioning box with variable flow regulation
or constant flow regulation, designed for comfort ventilation
indoors. The product is used to regulate the supply air flow in
ventilation ducts.
The product may not be used for anything other than its
intended use.
General
Read through the entire instructions for use before you
install/use the product and save the instructions for
future reference. It's not permissible to make changes
or modify this product other than those specified in this
document.
The packaging contains the following items
1 x REACT ALS GMB
1 x Instructions for Use
Protective equipment
Always use appropriate personal protective equipment for
the work in question, in the form of gloves, respirators
and protective glasses during handling, installation, cleaning
and service/maintenance.
Electrical safety
Permitted voltage, see "Electrical data". It is not permissible
to insert foreign objects into the product's contactor
connections or the electronics's ventilation openings;
risk for short circuiting.
24 V isolation transformer to be connected should comply with
the provisions of IEC 61558-1.
Cable sizing must be carried out for cabling between the product
and the power supply source.
Disconnect the power supply when working on the product and
it is not required to be running.
Always follow the local/national rules for who shall be permitted
to carry out this type of electrical installation.
The document was originally written in Swedish
Other risk
When the product is voltage fed, the damper cone will
either open or close. This can entail a certain risk for
pinch injuries, for example, to the fingers if these are
placed within the damper cone.
Handling
• Always use appropriate transport and lifting devices when the
product is to be handled to reduce ergonomic loads.
• The product must be handled with care.
• It is not permissible to carry the product by the measuring
tubes.
Installation
• Moist, cold and aggressive environments must be avoided.
• Avoid installing the product near a heat source.
• Assemble the product according to applicable industry
regulations.
• Install the product so that it is not accessible by unauthorized
persons, for example in a suspended ceiling.
• Install the product for easy access during service/maintenance.
• If the product is mounted in a fixed ceiling, the inspection
hatch must be located so that the product is accessible for
inspection.
• If the product is mounted in cold areas, the whole product
must be insulated on the outside against condensation.
• The product must be installed horizontally.
• The product must be laid down prior to installation so that it
cannot fall over.
• Check to make sure that the product doesn't have any visible
defects.
• Check that the product is properly secured after it has been
installed.
• Check that all cables are properly secured in place after
installation.
• If the product is mounted so that it is possible to gain access
to the inside of the product, it must be supplemented with
appropriate protection, for example, a ventilation unit.
• It is recommended to mount the product so that the associated
diffuser face can be opened.
12/02/2024
Art. 1546102
