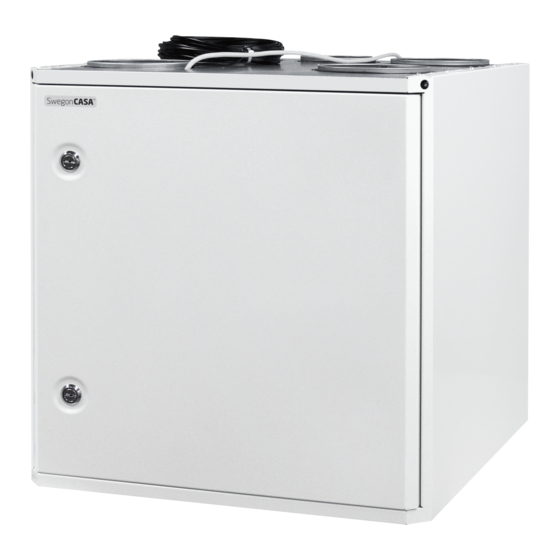

Swegon CASA
Ventilation unit with rotary heat exchanger
►
Ventilation unit for residential houses, multi-storey
buidings and holiday cottages under 230 m
is equipped with rotary heat exchanger. Suitable also
for renovation projects.
►
Maximum air volume: 120 l/s.
►
Temperature efficiency: up to 80 %.
►
Low sound level.
►
For installation in a machine room, storage space,
laundry room, etc.
►
A separate extract air connection for the cooker hood,
and the extract air does not pass the heat exchanger.
►
The ventilation system can be controlled from a sepa-
rate control panel or from the cooker hood.
►
Premium control technique.
R120_g_EN-p
R120
®
. The unit
2
HOME VENTILATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swegon CASA R120
Summary of Contents for Swegon CASA R120
- Page 1 Swegon CASA R120 ® Ventilation unit with rotary heat exchanger ► Ventilation unit for residential houses, multi-storey buidings and holiday cottages under 230 m . The unit is equipped with rotary heat exchanger. Suitable also for renovation projects. ► Maximum air volume: 120 l/s.
-
Page 2: Technical Data
HOME VENTILATION Technical data General The Swegon CASA R120 is an ideal ventilation unit for homes and similar premises. The unit has a RECOnomic rotary heat exchanger for high heat recovery perfor- mance. The ventilation unit is designed to be mounted on a wall by means of the installation kit included in the supply. -
Page 3: Control System
• Freeze protection. Prevents freezing in the heat • Summer operation. When certain limit values are exchanger. met, the ventilation unit stops the heat exchanger (when heat recovery isn’t needed). Swegon reserves the right to alter specifications. www.swegon.com/casa... - Page 4 • Home−Away switch. Should be located close to the • Modbus gateway front door. When the button is pushed, the ventilation unit switches to operation in the Away mode and this saves energy. Swegon reserves the right to alter specifications. www.swegon.com/casa...
-
Page 5: Optional Equipment
Replacement filters Replacement filters The set of filters contains two class F7 fine filters and one class G3 wide-mesh filter. Roof mounting frame Mounting frame with moisture barrier Swegon reserves the right to alter specifications. www.swegon.com/casa... - Page 6 System products The ventilation unit is a part of an economical and attrac- tive ventilation system for homes. Swegon offers a com- plete series of products for home ventilation. In that all the components are supplied by the same subcontractor, you are assured that they operate reliably together and this enables you to select properly sized products.
-
Page 7: Installation Alternatives
The best way to control the power roof ventilator is from the cooker hood control panel. Swegon reserves the right to alter specifications. www.swegon.com/casa... - Page 8 HOME VENTILATION Bypass for kitchen The Swegon CASA R series ventilation units make it • Adequate suction power from the cooker hood possible to install a so-called kitchen bypass. This is an • Fewer ducts and roof penetration collars effective way to remove cooking odours from the kitchen •...
- Page 9 Fans 238 W 238 W 57 % 54 % 50 % Rotor motor 10 W 10 W 46 % Air heater, reheat 800 W Total output 250 W 1050 W Airflow, l/s Swegon reserves the right to alter specifications. www.swegon.com/casa...
-
Page 10: Acoustic Data
Sound power level broken down into octave bands, L , dB Weighted sound wokt setting power level 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz , dB(A) Swegon reserves the right to alter specifications. www.swegon.com/casa... - Page 11 Sound power level broken down into octave bands, L , dB Sound pressure Weighted wokt level sound power setting 10 m² sound 1000 2000 4000 8000 level absorption , dB(A) (10), dB(A)*) *) Equivalent to a normally insulated room. Swegon reserves the right to alter specifications. www.swegon.com/casa...
-
Page 12: Power Connection
Premium control panel, e.g. for entering settings or service work Cable with modular connectors Mains power plug connection 230 V, 10 A R120 Cooker hood Premium Modbus Gateway (no provision for extension) control panel Modbus RTU Swegon reserves the right to alter specifications. www.swegon.com/casa... - Page 13 - Control of fan speed - Control of temperature Misc. When the control voltage is interrupted, 2 x 0.5 the control system returns to the user mode for use by the occupants. Swegon reserves the right to alter specifications. www.swegon.com/casa...
- Page 14 Swegon CASA R120 L Swegon CASA R120 R Supply air 1 Extract air 2 Outdoor air 3 Exhaust air 4 Extract air from cooker hood K Swegon reserves the right to alter specifications. www.swegon.com/casa...
-
Page 15: Wall-Mounting Bracket
Swegon CASA R120 R Swegon CASA R120 L Duct Connections Supply air Extract air Outdoor air Exhaust air Cooker hood’s ∅ 160 ∅ 160 ∅ 160 ∅ 160 exhaust air ∅ 125 Weight: 78 kg. Swegon reserves the right to alter specifications. www.swegon.com/casa... - Page 16 HOME VENTILATION Ordering key Ventilation unit Optional equipment Ventilation unit Swegon CASA R120 Premium EC Humidity sensor 117KKH R right-hand version 10212RRE Carbon dioxide sensor 117HDL L left-hand version 10212RLE Temperature thermostat 117T Presence detector 102LT Ventilation unit Swegon CASA R120 Premium EC...
