Summary of Contents for Winncare A641-00

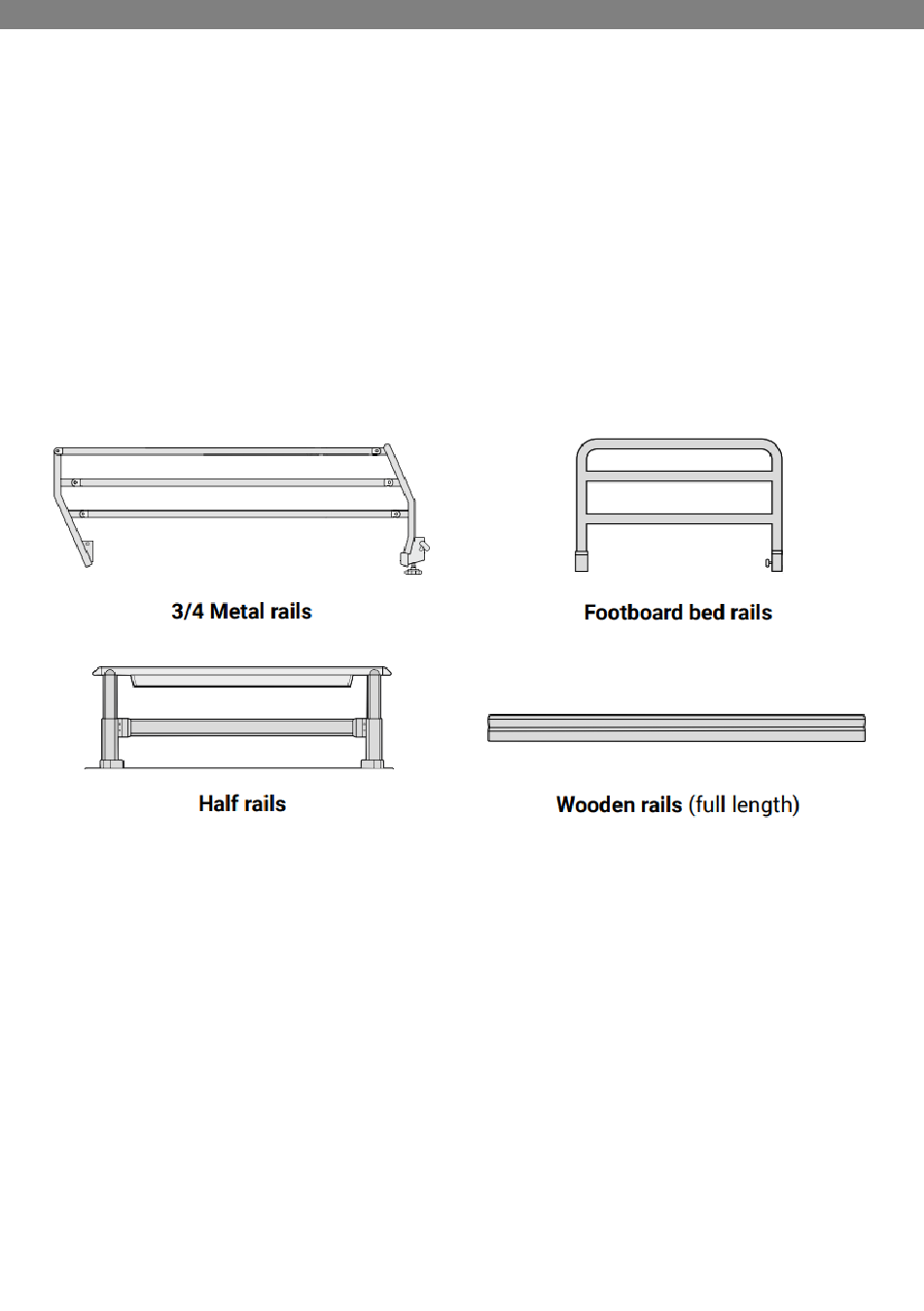

- Page 1 WINNCARE France Technical Manual Medical beds accessories TM_ALM_EN 12/09/2024 - 1 -...
- Page 2 Assembling of the ¾ metal side rails A637-00 / A638-00 / A639-00 / A640-00 ....... - 7 - Assembling of the ¾ metal side rails A641-00 / A642-00 / A643-00 / A644-00 ....... - 8 - Assembling and installing the A671-00 / A672-00 fixed footboard barriers ........- 8 - Assembling and installing the A682-00 / A683-00 fixed footboard rails (compatible with bed extension) ............................
- Page 3 Stacking packages weighing over 60 kg/m is strictly prohibited, irrespective of their position. ASSEMBLY CONDITIONS ¾ METAL SIDE RAILS Only WINNCARE France medical beds listed below are compatible with metal side rails: Bed reference Side rails reference Bed reference Side rails reference...
- Page 4 IDO5 to DO8 00/A644-00 00/A640-00 The metal side rails are intended to be used on 2000 mm long WINNCARE France medical beds with a square tube frame of no more than 40 mm. IXED FOOTBOARD BED RAIL Fixed footboard bed rails should always be combined with A637-00 or A638-00 rails and a bed board distributed by WINNCARE France.
- Page 5 WINNCARE France ELESCOPIC ALUMINIUM BARRIERS Always combine the rails with the bed in accordance with the table below: Bed reference Reference barriers Bed reference Reference barriers XN… A688-00 / A689-00 AF… A688-00 / A689-00 XO… A688-00 / A689-00 AX… A688-00 / A689-00 XH…...
- Page 6 WINNCARE France OODEN BARRIERS Bed base High position position Bed base High position position Warning: Be sure to check the position of the panels and the correct sliding of the barrier. - 6 -...
- Page 7 WINNCARE France SETTING UP THE SIDE RAILS ¾ A637-00 / A638-00 / A639-00 / A640-00 SSEMBLING OF THE METAL SIDE RAILS Fixing jaw on the bed if it is not already installed, for this: n°4 Remove the cap of the side rail by pushing inside or outside (depending on the assembly) then remove it with a screwdriver if necessary.
- Page 8 . Take the SAM with one hand at each end to remove it completely. ¾ A641-00 / A642-00 / A643-00 / A644-00 SSEMBLING OF THE METAL SIDE RAILS Block the two jaws through the clamping rondo and ensure its blocking.
- Page 9 WINNCARE France Attach the fixed footboard rail to the bed (see instructions for use). A682-00 / A683-00 SSEMBLING AND INSTALLING THE FIXED FOOTBOARD RAILS COMPATIBLE WITH BED EXTENSION Using a 13-mm socket wrench, remove the board mount and replace with the new part.
- Page 10 WINNCARE France Attach the fixed footboard rail to the bed: ➔ Footboard rails may be compatible with the use of a bed base extension. - 10 -...
- Page 11 Warning: Incompatible side barriers can create hazards. The wooden barriers are designed to be used on WINNCARE beds with a bed frame length of 1,700 mm for junior beds and 2,000 mm for adult beds that have panels with recesses needed for their assembly and that are not equipped with bed frame extensions.
- Page 12 WINNCARE France Warning: Make sure that the high crossbeam guide is engaged in the correct direction in the low cross- bar guide. ➔ The assembly is identical for all full-length wooden barriers and only the barrier of the A680- 00 junior bed is composed of a low wood / metal cross member to respect the standard spacings.
- Page 13 WINNCARE France - 13 -...
- Page 14 WINNCARE France - 14 -...
- Page 15 WINNCARE France SPECIFIC PRECAUTIONS FOR USE OODEN BARRIERS Positioning the side rails A579-00 / A580-00 / A581-00 poorly may undermine safety and cause a malfunction. Side rails must not be used when patients are not adults or are ≤ 146 cm tall.
- Page 16 WINNCARE France Allow the disinfected product to dry and separate it from other non-disinfected products, indicating the date of disinfection. • Fixed footboard rails The fixed footboard rail is a non-critical appliance requiring “Low Level” disinfection. We draw your attention to the fact that the recommendations below are drawn up according to the rules of good practice but are not a protocol.
- Page 17 Product for external use only. Do not swallow. Store in a cool place and avoid contact with eyes. SPARE PARTS A list of spare parts is available from WINNCARE France after-sales service: Mail: sav@winncare.fr - 17 -...
- Page 18 WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE Tél. : +33 (0)4.66.02.15.15 Fax. : +33 (0)4.66.02.15.00 Email: contact@winncare.fr www.winncare.com...
