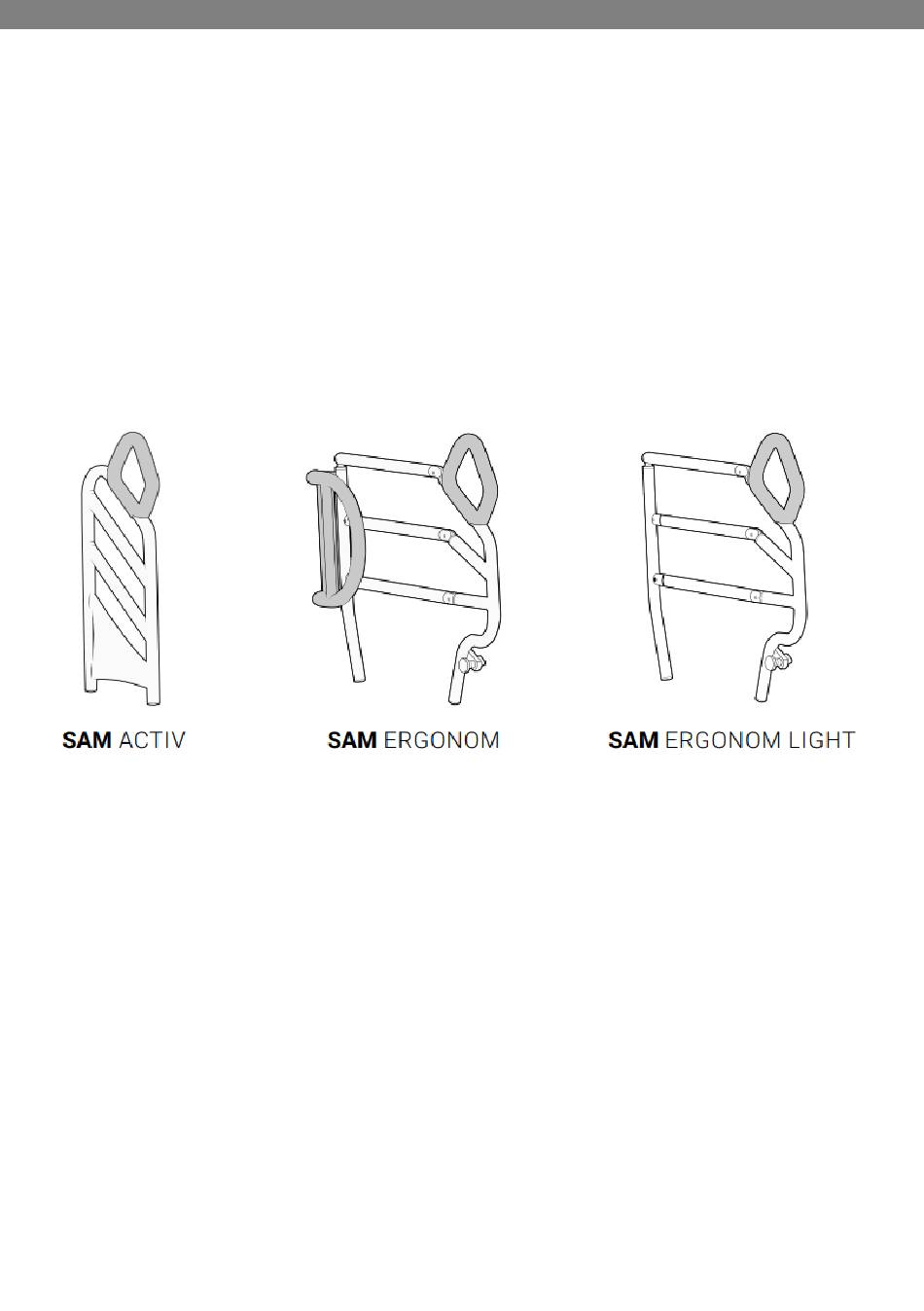

- Page 1 WINNCARE France Technical Manual Mobility Assistance Systems (SAM) TM_SAM_EN 15/07/2024 - 1 -...
-
Page 2: Table Of Contents
WINNCARE France TABLE OF CONTENTS TRANSPORT ANS STORAGE ....................... - 3 - Assembling of SAM A614-00/A615-00, A618-00/A619-00, A628-00/A629-00 ........ - 5 - Assembling of SAM A647-00/A648-00, A649-00/A650-00, A651-00/A652-00 ........ - 6 - Assembling of SAM A616-00/A617-00 ..................... - 7 - MAINTENANCE ............................. -
Page 3: Transport Ans Storage
Stacking packages on the mobility assistance systems is strictly prohibited. Stacking packages weighing over 60 kg/m is strictly prohibited, irrespective of their position. ASSEMBLY CONDITIONS Only WINNCARE France medical beds listed below are compatible with SAM. Bed reference SAM reference Bed reference... - Page 4 * is height less than 240 mm SAM are delivered folded up. The mobility support system is intended to be used on 2000 mm long WINNCARE France medical beds with a square tube frame of no more than 40 mm.
-
Page 5: Assembling Of Sam A614-00/A615-00, A618-00/A619-00, A628-00/A629-00
WINNCARE France SETTING UP THE SAM SAM A614-00/A615-00, A618-00/A619-00, A628-00/A629-00 SSEMBLING OF The mobility assistance system is marked left and right by the grip jaws. Position the grip jaws as shown in the diagrams below. 4 cm space max Head side... -
Page 6: Assembling Of Sam A647-00/A648-00, A649-00/A650-00, A651-00/A652-00
WINNCARE France SAM A647-00/A648-00, A649-00/A650-00, A651-00/A652-00 SSEMBLING OF Fixing jaw on the bed if it is not already installed, for this: n°4 Remove the cap of the SAM by pushing inside or outside (depending on the assembly), then remove it with a screwdriver if necessary. -
Page 7: Assembling Of Sam A616-00/A617-00
To assemble them on the bed, the SAM must be positioned by tightening the two adjustment knobs under the grip jaws. Head side Feet side Tighten the grip jaws Respect a space of 32 cm between all accessories and the SAM Activ - 7 -... -
Page 8: Maintenance
WINNCARE France MAINTENANCE DENTIFICATION PKEEP A detailed examination must be carried out on the mobility assistance system at least once a year on such parts as: the adjustment rondo screws, index pins, pins, and rivets. LEANING AND DISINFECTION Clean the structure with soapy water and a soft cloth then rinse and wipe dry. All aggressive or scouring products such as detergents, powders, solvents, and bleach are prohibited. -
Page 9: Spare Parts
Product for external use only. Do not swallow. Store in a cool place and avoid contact with eyes. SPARE PARTS A list of spare parts is available from WINNCARE France after-sales service: Mail: sav@winncare.fr - 9 -... - Page 10 WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE Tél. : +33 (0)4.66.02.15.15 Fax. : +33 (0)4.66.02.15.00 Email: contact@winncare.fr www.winncare.com...
