Delfield
™
®
4472N Mega Top
Front-Breathing Self-Contained Compact Mega Top Refrigerators
Models
•
4472N-18M
Three section with doors eighteen pan capacity
•
D4472N-18M
Three section with drawers eighteen pan capacity
•
4472N-24M
Three section with doors twenty-four pan capacity
•
D4472N-24M
Three section with drawers twenty-four pan capacity
•
4472N-30M
Three section with doors thirty pan capacity
•
D4472N-30M
Three section with drawers thirty pan capacity

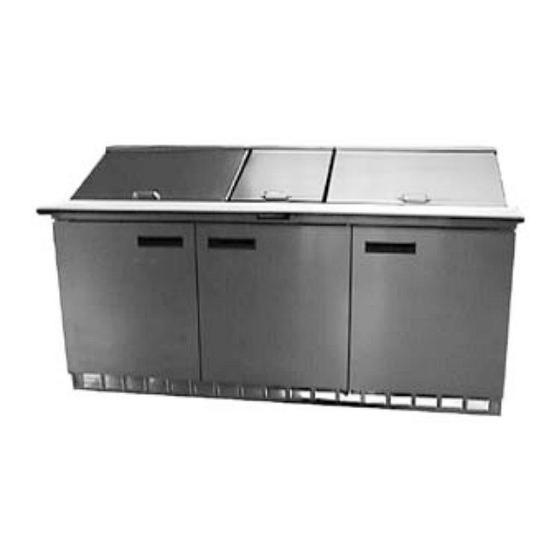

4472N-30M
Specifications
Exterior top is one-piece 22-gauge stainless steel with
integral 2.12" (5.1cm) square nosing on the front. Telescoping
lid is constructed of 20-gauge stainless steel. Top opening
can accept 18, 24 or 30 1/6 size plastic pans 4"-6" (10.1cm-
15.2cm) deep. Adapter bars and 1/6 size pans are supplied by
Delfield. Temperature in top openings maintains 33°F (1°C) to
41°F (5°C), with pans recessed 2.5" (6.4cm) at 86°F ambient
room temperature, meeting NSF 7 requirements. One 72" x
8" x .5" (183cm x 20.3cm x 1.3cm) polyethylene cutting board
treated with antimicrobial agent is mounted on the top at the
front edge.
Exterior back and bottom are two-piece 24-gauge galvanized
steel. Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic with shelf
supports. Base is fully insulated with high-density foamed in
place environmentally friendly, Kyoto Protocol Compliant, Non
ODP (Ozone Depletion Potential), Non GWP (Global Warming
Potential) polyurethane.
Refrigeration system uses HFC-404A refrigerant. Compressor
is 1/2 H.P., with condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet. Evaporator coils
and temperature control are located on the interior rear wall of
the cabinet. Refrigerant flow is controlled by a capillary tube.
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Standard Features
•
Patented air screen ensures product stays cold without
drying it out
•
All 4400 Series units are 100% front breathing, which allows
the unit to be pushed against a wall or built into a cabinet
or an existing line up
•
Durable, rugged stainless steel sides, top and front
•
Features Delfield's exclusive ABS interior (on sides). ABS
is extremely durable - it won't dent, chip or corrode and is
backed by a limited lifetime warranty
•
Delfield supplies 1/6 size pans and adapter bars for top
opening
•
Mega top refrigerators are standard with 8" wide, dishwasher
safe polyethylene cutting board treated with anitmicrobial
agent
•
"D" prefix models feature Delfield's new drawer system.
Drawers are backed by a 10-year warranty on the track
assembly
•
Environmentally friendly R404A refrigerant
•
High density foamed in place environmentally friendly, Kyoto
Protocol Compliant, Non ODP (Ozone Depletion Potential),
Non GWP (Global Warming Potential) polyurethane keeps
energy costs low
•
Black recessed quick grip handle
•
Standard on 2" casters for easy cleaning and installation
•
7' cord and plug supplied
•
Cord spring relief - prevents cord rollover
•
One epoxy coated wire shelf standard, installed per door
section
•
ACT solid state electronic control
•
One year parts and 90 day labor standard warranty.
Cabinet maintains an interior cabinet temperature of 36°F to
40°F (2°C to 4°C).
ACT control. ACT electronic, solid state control, mounted on
the exterior rear of the cabinet, allows unit to maintain precise
temperatures in heavy duty conditions.
Electrical connections are 115 volt, 60 Hertz, single phase.
Unit has a 7' (2.1m) long electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 2" (5.08cm) diameter plate
casters with front two locking. Equipment clearance above the
floor is 2.5" (6.35cm).
Doors have a 24-gauge stainless steel exterior, with
thermoformed ABS plastic interior liner. Cabinet has one
adjustable epoxy-coated wire shelf per door opening.
Drawers have 24-gauge stainless steel exterior with
thermoformed ABS plastic interior liner. Drawer frames are
12-gauge stainless steel. Drawer slides are 11-gauge stainless
steel with Delrin bearings. Each top drawer holds one 12" x 20"
(30.5cm x 50.8cm) pan and three 1/9 size pans 4"-6" (10.1cm-
15.2cm) deep. Each bottom drawer holds one 12" x 20" (30.5cm
x 50.8cm) pan and three 1/9 size pans 4" (10.1cm) deep. Pans
are supplied by others.
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
www.delfield.com
Options &
Accessories
•
Flat lift off cover
•
18" wide single tier overshelf
•
Stainless steel finish on back
•
Plastic laminate on front
•
Additional wire shelves
•
Door lock
•
Exterior thermometer
•
Glass door(s)
•
*220V/50 Hertz electrical system
* Inclusion of this option will
alter electrical specifications
of the unit.
