4472N FLAT TOP
Front-Breathing Flat Top Refrigerated Base
MODELS:
❑ 4472N
Three section refrigerator
with doors

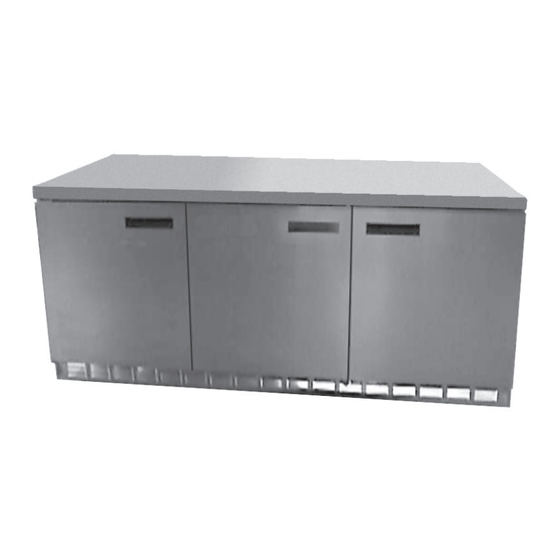

Model 4472N
SPECIFICATIONS
Exterior top is one-piece, 22-gauge stainless steel
with integral square nosing on the front.
Exterior back and bottom are two-piece 24-gauge
galvanized steel.
Exterior ends are stainless steel.
Interior sides are thermoformed ABS plastic with
shelves supported on plugs. Interior back is one-
piece 22-gauge stainless steel. Interior bottoms are
thermofoamed ABS plastic. Base is fully insulated with
high-density foamed in place polyurethane.
Refrigeration system uses HFC-404A refrigerant.
Compressor is 1/5 H.P., with condenser coil and hot
❑ D4472N
STANDARD FEATURES
All 4400 and 4500 Series units are 100% front
breathing, which allows the unit to be pushed against
a wall or built into a cabinet or an existing line up
Durable, rugged stainless steel sides, top and front
Features Delfield's exclusive ABS interior (on sides).
ABS is extremely durable - it won't dent, chip or
corrode and is backed by a limited lifetime warranty
Heavy duty self-closing hinges
"D" prefix models feature Delfield's exclusive new
drawer system. Drawers are backed by a 10-year
warranty on the track assembly
Environmentally friendly R404A refrigerant
High density foamed in place polyurethane keeps
energy costs low
Black recessed quick grip handle
Standard on 2" casters for easy cleaning and
installation
60-cycle single phase electrical system
7' cord and plug supplied
Cord spring relief - prevents cord rollover
One epoxy coated wire shelf standard, installed per
door section
ACT solid state electronic control
One year parts and 90 day labor standard warranty.
gas condensate evaporator mounted on rear of the
cabinet. Evaporator coils are located on the interior
rear wall of the cabinet. Refrigerant flow is controlled
by a capillary tube. Cabinet maintains an interior
cabinet temperature of 36°F to 40°F (2°C to 4°C).
ACT control. ACT electronic, solid state control,
mounted on the exterior rear of the cabinet, allows
unit to maintain precise temperatures in heavy duty
conditions.
Electrical connection is 115 volt, 60 Hertz, single
phase. Unit has a 7' (2.1m) long electrical cord and
NEMA 5-15P plug.
Casters Equipment is mounted on 2" (5.08cm) (2.5"
ride height), diameter plate casters with front two
locking.
980 S. Isabella Road
Phone: 800-733-8948
Mt. Pleasant, MI 48858
Fax: 800-669-0619
www.delfield.com
Email: info@delfield.com
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
Three section refrigerator
with drawers
OPTIONS AND ACCESSORIES
Flat lift off cover
18" wide single tier overshelf
Stainless steel finish on back
Plastic laminate on front
Additional wire shelves
Door lock
Exterior thermometer
Interior lights
Glass door(s)
*220V/50 Hertz electrical system
*Inclusion of this option will alter electrical
specifications of the unit.
Door has a 24-gauge stainless steel exterior, with
thermoformed ABS plastic interior liner.
Drawers have 24-gauge stainless steel exterior with
thermoformed ABS plastic interior liner. Drawer frames
are 12-gauge stainless steel. Drawer slides are 11-
gauge stainless steel with Delrin bearings. Top drawer
holds one full size 12" x 20", 4"-6" (30.5cm x 50.8cm
x 10.2cm) deep pan, and three 1/6 size pans. Bottom
drawer holds one full size 12 x 20" and three 1/6 size
4" deep pans. Pans are supplied by others.
Approval _________________
Date____________________
