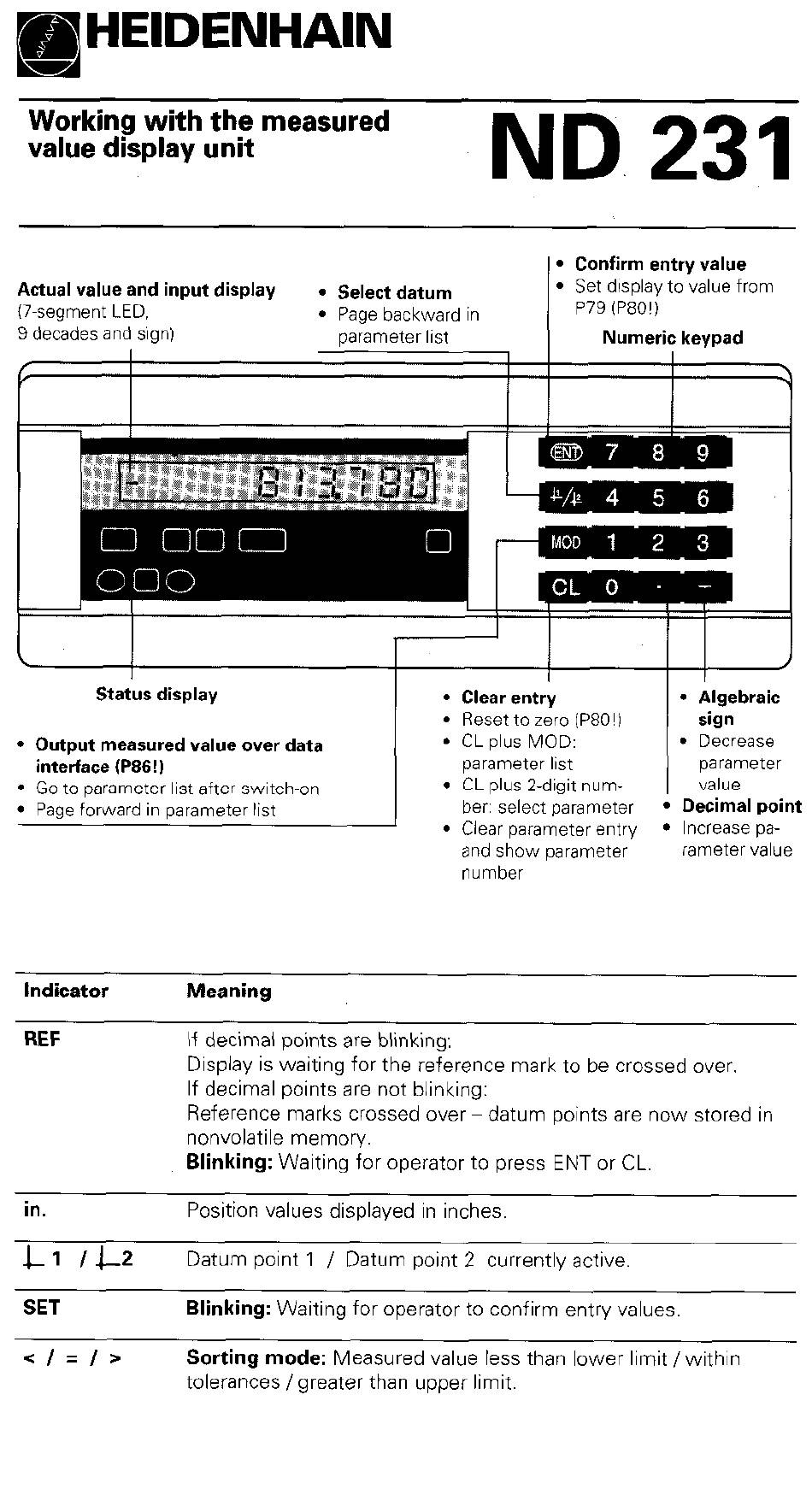

Working with the measured
value display unit
ND. 231
* Confirm entry value
Actual value and input display
. Select datum
. set display to Value iron.
Wsegmenr LED,
*
Page
backward in
P79 iP801l
9 decades and sign)
parameter list
Numeric keypad
I I
I
Indicator
REF
Meaning
If decimal points are blinking:
Display is waiting for the reference mark to be crossed over.
If decimal points are not blinking:
Reference marks crossed over datum points are now stored in
nonvolatile memory.
Blinking: Waiting for operator to press ENT or CL.
in.
Position values displayed in inches.
l-1
IC2
Datum point 1 I Datum point 2 currently active.
SET
Blinking: Waiting for operator to confirm entry values.
<I=/>
Sorting mode: Measured value less than Iower limit 1 within
tolerances I greater than upper limit.
