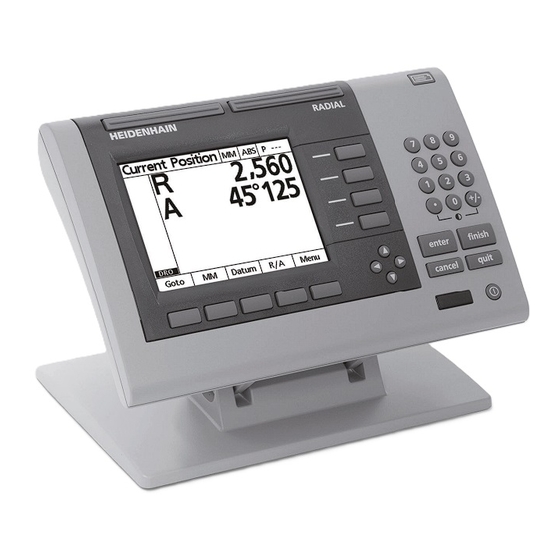

HEIDENHAIN ND 1200R Radial Operating Instructions Manual

Hide thumbs Also See for ND 1200R Radial:
Table of Contents

Advertisement

Quick Links

Download this manual

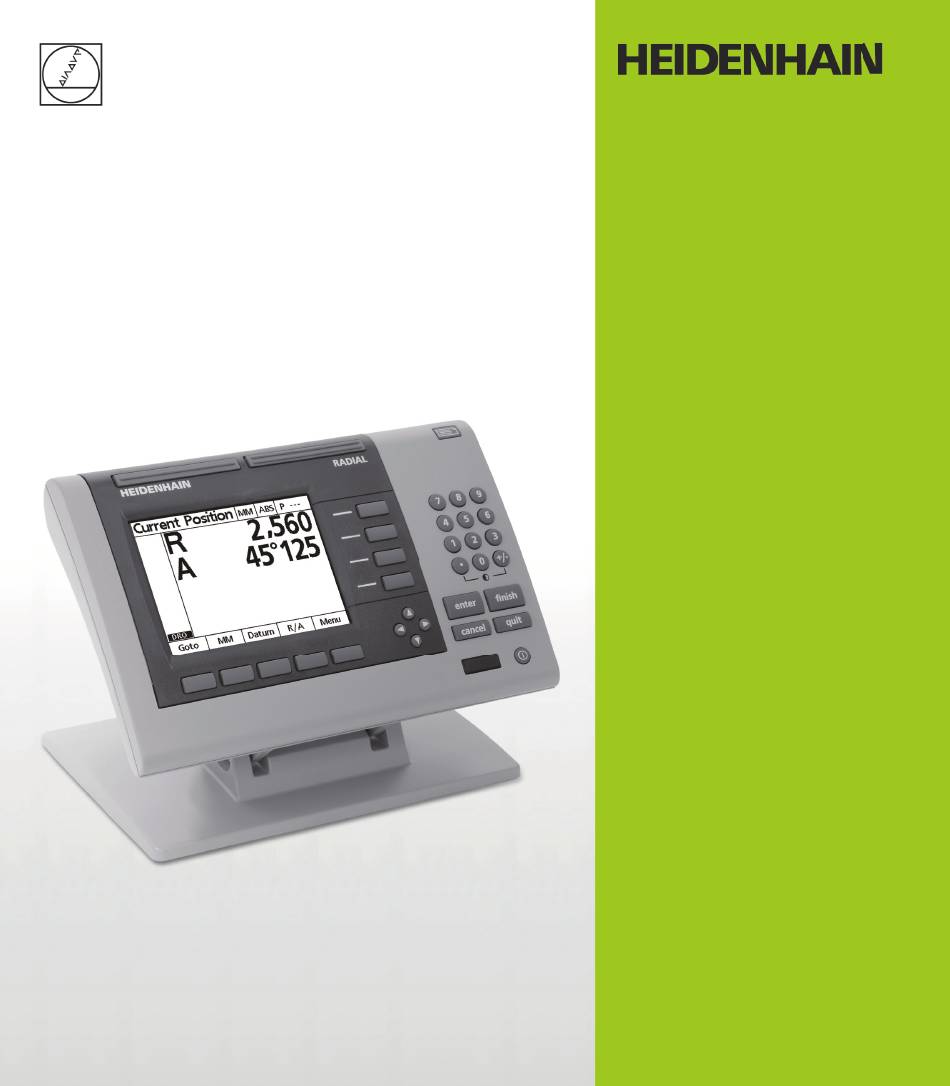

Operating Instructions
ND 1200R
Radial
Software Version
2.8.x
English (en)
6/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ND 1200R Radial and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HEIDENHAIN ND 1200R Radial

Summary of Contents for HEIDENHAIN ND 1200R Radial

  • Page 1 Operating Instructions ND 1200R Radial Software Version 2.8.x English (en) 6/2013...
  • Page 3 LCD. Axis keys: used to enter target positions. Command keys: Control target and data entry processes. enter finish quit cancel Arrow keys: Used to scroll through lists and navigate menus and setup screen data fields. ND 1200R Radial...
  • Page 4 Panel function key Panel key Wide keys: Two programmable Wide keys are used to perform frequently used functions. These keys can easily be located by touch without taking your eyes off the part. By default the left fast track key is assigned the SEND2 function and the right is assigned the ZERO2 function.
  • Page 5 ND 1200R rear panel Power switch Power cord connector and fuse holder Power ground access HEIDENHAIN 15 pin universal touch probe sensor Measurement axis connectors RS-232 serial port connector Not supported in the ND 1200R Tilt base mechanical tightness adjustment...
  • Page 6 Information contained in this manual This User's manual covers the operation, installation, setup and specifications of the ND 1200R. Operating information is contained in chapter 1. Installation, setup instructions and specifications are contained in chapter 2. Fonts used in this manual The following fonts are used to indicate operator controls or to show emphasis: ...
  • Page 7 Use only a cloth dampened with water and a mild detergent for cleaning the exterior surfaces. Never use abrasive cleaners, and never use strong detergents or solvents. Only dampen the cloth, do not use a cleaning cloth that is dripping wet. ND 1200R Radial...
  • Page 8 Preface...

  • Page 9: Table Of Contents

    Line pattern..............................41 Circle pattern ............................... 42 1.6 Target programs..............................43 Saving a program ............................43 Running a program ............................44 Mirroring a program ............................. 45 Deleting a program ............................46 1.7 Navigating to a target ............................47 ND 1200R Radial...
  • Page 10 2 Installation, Setup and Specifications 2.1 ND 1200R Shipment Contents ..........................50 Items included with the ND 1200R ......................50 Optional items possibly included........................50 Repackaging the ND 1200R .........................51 2.2 Hardware Installation ............................52 Assembling the mounting stand ........................52 Benchtop location and mounting ...................... 52 Arm mounting (optional) ........................

  • Page 11: Operation

    Operation...

  • Page 12: Nd 1200R Overview

    1.1 ND 1200R Overview The ND 1200R is an advanced digital readout (DRO) system for radial drilling machines using analog or TTL encoders. The system allows the operator to directly enter either cartesian or polar coordinates for target positions. This alleviates the requirement of either pre-drilling holes or a previous operation of marking out the holes on an expensive machine elsewhere.
  • Page 13  Rectangular pattern  Line pattern  Circle pattern  Speaker jack outputs for quiet or noisy environments  Optional remote foot switch and keypad facilitate measurement when the user is not close to the front panel ND 1200R Radial...

  • Page 14: Basic Functions Of The Nd 1200R

    1.2 Basic Functions of the ND 1200R Switching on the ND 1200R Switch on the ND 1200R. The POWER switch is located on the rear of the enclosure. After switching the power on, or after a power failure, the power-up screen will be displayed.

  • Page 15: Establishing A Repeatable Machine Zero

    ND 1200R will not be applied. Switching off the ND 1200R Switch the ND 1200R off. The parameter settings, error compensation tables and recorded programs that have been saved during operation will be retained in memory. ND 1200R Radial...

  • Page 16: Panel Key Descriptions

    Panel key descriptions Descriptions of panel key functions are provided in the following pages for COMMAND, AXIS, WIDE, SEND, LCD ON/OFF and ARROW keys. Soft key functions are also described later in the next section as part of screen and soft key layout descriptions. Command keys Function Enter data: Press the enter key to enter...
  • Page 17 Turn the LCD off or clear data: Press the LCD ON/OFF key to toggle between LCD on and LCD off, or to clear target data, datums and part alignments (skews). ARROW keys Function Navigate menus and setup screen data fields. ND 1200R Radial...

  • Page 18: Lcd Screen And Soft Key Layout

    LCD screen and soft key layout ND 1200R LCD screens display information in one of three operating modes:  DRO mode displays current positions of axes  Distance from target mode displays the distance from a target position  Setup mode displays ND 1200R setup screens Soft keys change to support activities shown on the screens.

  • Page 19: Distance From Target Mode Screen And Soft Keys

    INC or ABS Toggles between incremental and absolute distances. R/A or X/Y Toggles between cartesian and polar coordinates. Menu Press the MENU soft key to access program, datum, pattern and setup menus. ND 1200R Radial...

  • Page 20: Nd 1200R Menus

    ND 1200R Menus Press the MENU soft key to display menu titles over the soft keys at the bottom of the LCD screen. Press a menu soft key to display the corresponding menu screen. Menus include: PROGRAMS menu PROGRAMS functions Press the PROG soft key to display the PROGRAMS screen and soft keys for...
  • Page 21 Move 0 Press the MOVE 0 soft key to move the datum to a new location. Skew Press the SKEW soft key to compensate electronically for non-square part alignment on the primary axis. ND 1200R Radial...
  • Page 22 PATTERN menu PATTERN functions Press the PATTERN soft key to select a drilling pattern. Soft keys include: Frame Press the FRAME soft key to enter the parameters to define a frame drilling pattern. Refer to "Frame pattern” on page 39 Rect Press the RECT soft key to enter the parameters to...
  • Page 23 ND 1200R. Use of the setup menu is explained in Chapter 2: Installation, Setup and Specifications. Access to setup menu configuration data fields is password restricted to supervisors and other technically qualified personnel. Configuration mistakes can result in serious measurement errors. ND 1200R Radial...

  • Page 24: Preparing To Drill

    1.3 Preparing to drill Power-up the ND 1200R  Switch on the ND 1200R. The POWER switch is located on the rear of the enclosure. After switching the power on, or after a power failure, the power-up screen will be displayed. See "Switching on the ND 1200R"...

  • Page 25: Adjust Lcd Screen Contrast

    Select unit of linear measure  Press the MM or IN soft key to toggle between millimeters and inches. Select a coordinate system  Press the X/Y or R/A key to toggle between cartesian and polar coordinate systems. ND 1200R Radial...

  • Page 26: Probing A Position

    Probing a position A position can be probed with a hard probe or a touch probe. To probe a point with a hard probe:  Touch the edge of the workpiece with the probe.  Press the ENTER key.  Enter the probe diameter.

  • Page 27: Select A Probe Diameter

    To assign a probe diameter:  Press the DATUM soft key.  Press the PROBE soft key.  Enter the probe size.  Press the FINISH key. ND 1200R Radial...

  • Page 28: Aligning The Part To An Axis

    Aligning the part to an axis Accurate drilling requires the part to be perfectly aligned along an axis. Misaligned parts result in targeting errors. Use the SKEW function to convert machine coordinates to part coordinates and compensate for part misalignment. Perform a skew each time a new part is mounted. Measure a skew line by probing a straight edge of the part on a major measurement axis or by probing two or more pre-drilled holes.
  • Page 29 Press the FINISH key to complete the second hole measurement.  Press the FINISH key to complete the skew. Distributing the probed points evenly around the circumference of the hole will provide a more accurate placement for the center of the hole. ND 1200R Radial...

  • Page 30: Establish A Datum

    Establish a datum A datum can be created from a probed point, the center point of a probed hole or a point created from the intersection of the skew alignment line and another line perpendicular to the skew alignment line. Setting a datum from a probed point To set the datum from a probed point: ...

  • Page 31: Moving A Datum

    Press DATUM>MOVE 0.  Enter the X distance in relationship to the probed datum point.  Press the ENTER key.  Enter the Y distance in relationship to the probed datum point.  Press the FINISH key. ND 1200R Radial...

  • Page 32: Targets

    1.4 Targets Entering a target The ND 1200R allows simple entry of target position coordinates. As target position coordinates are entered a target list is created. The target list is shown on the left side of the LCD screen. Target list shown on left side of screen Entering an absolute target position To enter an absolute target position: ...
  • Page 33 Press the ENTER key.  Enter the drill diameter.  Press the FINISH key. Optional: Enter the drill bit diameter The new target is added to the target list and the Dist from Trgt screen is displayed ND 1200R Radial...

  • Page 34: Entering An Incremental Target Position

    Entering an incremental target position To enter an incremental target position:  Press the X axis key.  Enter the X coordinate for a new target relative to a previously entered target.  Press the ABS/INC soft key to toggle to incremental mode. ...
  • Page 35  Press the FINISH key. Enter the Y coordinate for the new target Press the ABS/INC soft key to toggle to Enter the number of the previously relative to a previously entered target incremental mode entered target ND 1200R Radial...

  • Page 36: Editing And Clearing Targets

    Editing and clearing targets Editing a target To edit a target:  Use the UP and DOWN ARROW keys to select a target in the target list.  Press the EDIT soft key. The Target Edit screen is displayed.  To edit target position coordinates, follow the previous instructions for entering a target position.

  • Page 37: Marking A Target

    To mark a target:  Use the UP and DOWN ARROW keys to select a target in the target list.  Press the AXIS key next to the checkmark symbol to mark a target. Target marked for future machining operation ND 1200R Radial...

  • Page 38: Target Patterns

    1.5 Target patterns Target patterns allow a way to quickly create targets by entering parameters for target coordinates arranged in one of four patterns. Available patterns are:  Frame  Rectangle  Line  Circle 1 Operation...

  • Page 39: Frame Pattern

    Y axis prior to an angle being applied to the pattern. Angle of Array Angle applied to the pattern in relation to the X axis. Frame pattern Drill Diameter Diameter of the drill. ND 1200R Radial...

  • Page 40: Rectangle Pattern

    Rectangle pattern To create a Rectangle pattern:  Press MENU>PATTERN>RECT.  Use the UP and DOWN ARROW keys to navigate between parameter data fields and enter the parameter values required for the pattern.  Press the FINISH key. The targets in the pattern are added to the Target list and the Current Position screen is shown.

  • Page 41: Line Pattern

    X axis prior to an angle being applied to the pattern. Line pattern Angle of Line Angle applied to the pattern in relation to the X axis. Drill Diameter Diameter of the drill. ND 1200R Radial...

  • Page 42: Circle Pattern

    Circle pattern To create a Circle pattern:  Press MENU>PATTERN>CIRCLE.  Use the UP and DOWN ARROW keys to navigate between parameter data fields and enter the parameter values required for the pattern.  Press the FINISH key. The targets in the pattern are added to the Target list and the Current Position screen is shown.

  • Page 43: Target Programs

    Enter a number for the program. A maximum of 12 digits may be used for the number.  Press the OK soft key. Create a target list Press MENU>PROG>SAVE Enter a program number and press the OK soft key ND 1200R Radial...

  • Page 44: Running A Program

    Running a program To run a target program:  Press MENU>PROG.  Use the UP and DOWN ARROW keys to select a program.  Press the RUN soft key. The Distance to Target screen is displayed and the program number is displayed in the upper right corner of the screen.

  • Page 45: Mirroring A Program

    Press the AXIS key for the axis to mirror the program along. The DIstance from Target screen is displayed. Press MENU>PROG and select a Press the MIRROR soft key Press an axis key to select an axis to program mirror along ND 1200R Radial...

  • Page 46: Deleting A Program

    Deleting a program To delete a target program:  Press MENU>PROG>.  Use the UP and DOWN ARROW keys to select a program.  Press the DELETE soft key.  Press the YES soft key to confirm program deletion. Press MENU>PROG and select a Press the DELETE soft key and the YES program soft key to confirm program deletion...

  • Page 47: Navigating To A Target

    R axis, the zero on the A axis will be lost. Move the tool in or out until the R axis Move the radial arm until the A axis reads reads zero zero ND 1200R Radial...
  • Page 48 1 Operation...

  • Page 49: Installation, Setup And Specifications

    Installation, Setup and Specifications...

  • Page 50: Nd 1200R Shipment Contents

    ND 1200R Protective cover  QC-Wedge communication software If any components were damaged in shipment, save the packaging materials for inspection and contact your shipping agent for mediation. Contact your Heidenhain distributor or OEM for replacement parts. 2 Installation and Specifications...

  • Page 51: Repackaging The Nd 1200R

     Replace the warranty card and slip sheets originally found at the top of the carton when shipping on to an end-user. The “Before you begin” slip sheet should be inserted last. ND 1200R Radial...

  • Page 52: Hardware Installation

    2.2 Hardware Installation The ND 1200R is easy to install. This section describes how to install the ND 1200R hardware. Assembling the mounting stand The ND 1200R is secured to the swivel slots of the mounting stand by a shoulder screw, a cap screw and associated washers. ...

  • Page 53: Arm Mounting (Optional)

    Arm mounting (optional) Secure the arm mount adapter to the ND 1200R and bolt the adapter and ND 1200R to the arm as shown at the right. Optional arm mounting ND 1200R Radial...

  • Page 54: Connecting Power

    Connecting power Connect the ND 1200R to power through a high-quality power surge suppressor. Surge suppressors limit the amplitude of potentially damaging power line transients caused by electrical machinery or lightning, and protect the ND 1200R from most power line transients that can corrupt system memory or damage circuits.

  • Page 55: Connecting Encoders And Probes

    To connect the encoder cables and probe:  Verify that the ND 1200R is off.  Connect the axis encoders tightly to their connectors. An axis label is provided near each connector. If the connectors include mounting screws, do not overtighten them. ND 1200R Radial...

  • Page 56: Connecting A Computer

    Connecting a computer Measurement result data can be sent to a computer over the RS-232 port (1) using a serial cable that does not include crossed wires. To connect a computer:  Verify that the ND 1200R and the computer power are off. ...

  • Page 57: Connecting A Headphone

    Connecting a USB printer The ND 1200R supports certain USB printers. Printer models are specified by Heidenhain at the time of purchase, or approved by Heidenhain later. The USB port (2) is located on the side of the ND 1200R.

  • Page 58: Connecting An Optional Foot Switch Or Remote Keypad

    Connecting an optional foot switch or remote keypad The optional foot switch and remote keypad are connected to the RJ-45 connector on the side of the ND 1200R. Often, only the optional foot switch or remote keypad is used. However, two options can be connected simultaneously using a RJ-45 splitter.

  • Page 59: Software Setup

    Parameters configured in setup screens will be retained until:  The data-backup battery is changed  The data and settings are cleared by maintenance personnel  Parameters are changed using the setup menu screens  Certain software upgrades are performed ND 1200R Radial...

  • Page 60: Setup Menu

    Setup menu Most operating parameters of the ND 1200R are configured using screens and data fields accessed from the setup menu. Highlighting setup menu items on the left side of the setup screen displays the corresponding setup parameter data fields and choice fields on the right side of the screen.

  • Page 61: Setup Example: Entering The Supervisor Password

    UP/DOWN ARROW keys. The MENU soft key is pressed to display The SETUP soft key is pressed to display The UP/DOWN ARROW keys are used the menu soft keys the setup menu to highlight the Supervisor menu item ND 1200R Radial...
  • Page 62  Navigate from the menu to the Password setup field using the RIGHT ARROW key.  Enter the supervisor password using the NUMERIC KEYPAD. The RIGHT ARROW key is used to The supervisor password is entered The FINISH key is pressed to save the highlight the Password data field using the NUMERIC KEYPAD password and return to the setup menu...

  • Page 63: Order Of Setup

    Remaining setup tasks Setup screens Hot key assignments Hot keys Print formatting Print and Form characters screens RS-232 and USB port configuration Ports Audio volume Misc Key repeat delay Misc Screen saver activation Misc. Time and date Clock ND 1200R Radial...

  • Page 64: Language Selection And Product Version

    Language selection and product version The About screen contains selections for changing the language of text displayed on the screen and included in transmitted or printed data. Product software and hardware information is also provided on the About screen. The product software and hardware version information will be required if technical support is needed.

  • Page 65: Supervisor Password

    Press MENU>SETUP to display the setup menu and then highlight the Supervisor menu item.  Highlight the Password data field.  Enter the supervisor password. Highlight the Supervisor menu item Highlight the Password data field Enter the password ND 1200R Radial...
  • Page 66 To enable Startup Zero:  Highlight the Startup Zero choice field.  Press the YES soft key. Highlight the Startup Zero choice field Press the YES soft key  Press the FINISH key to save parameters and return to the setup menu.

  • Page 67: Encoder Configuration

    The setup process for all axes is identical.  Highlight the Res data field and then enter the encoder resolution in the units shown in the Units choice field. Encoders menu item is highlighted Press an axis soft key Enter the encoder resolution ND 1200R Radial...
  • Page 68  Highlight the Type choice field and then press a soft key to select the encoder type.  Highlight the Ref Marks choice field and then press a soft key to select the encoder reference mark type. The M.Z. Cnts (Machine zero counts) data field is rarely used to specify an offset from the machine zero position created by crossing encoder reference marks.
  • Page 69  Highlight the Reversed choice field and then press the YES soft key to reverse the encoder count direction. Choose a count direction  Press the FINISH key to save parameters and return to the setup menu. ND 1200R Radial...

  • Page 70: Misc Screen

    Misc screen The Misc screen encoder configuration fields include:  Auto DRO counts: The number of least significant DRO counts required to refresh the DRO with new axis values.  Slew limit for the axes: High input slew rates resulting from rapid input encoder motion can result in erroneous measurements.

  • Page 71: Probe Configuration

    Highlight the Probe Size data field and then enter the diameter of the probe.  Highlight the Drill Prompts choice field and then press a soft key to select prompting for drill changes. Select a touch probe type Enter a probe size Select display of drill prompts ND 1200R Radial...
  • Page 72  Highlight the Side Oper choice field and then press a soft key to select side operation.  Highlight the Probe Level choice field and then press a soft key to select High or Low probe level.  Highlight the Prb Debounce data field and then enter the minimum time the probe must be stable in seconds.

  • Page 73: Error Correction

    Press MENU>SETUP to display the setup menu.  Highlight the LEC menu item and make sure that all correction values are 1.0. Press MENU>SETUP to display the Highlight the LEC menu item and make Setup menu sure that all correction values are 1.0 ND 1200R Radial...
  • Page 74  Position the standard artifact along the R axis.  Align the artifact as closely as possible to the axis and then perform a skew alignment as described in chapter 1 (see "Aligning the part to an axis" on page 28). ...
  • Page 75 The standard and observed values for axes should be 1.000 when no LEC correction is applied. Highlight the LEC screen Enter the standard and observed values for the R axis  Press the FINISH key to save parameters and return to the setup menu. ND 1200R Radial...

  • Page 76: Display Formatting

    Display formatting The Display screen contains data and choice fields for configuring display resolution and other display parameters. Display screen The Display screen configuration fields include:  Startup linear units of measure  Selection of a comma or decimal point radix ...
  • Page 77 Enter the Angle Display Resolution  Highlight the axis selection field.  Select the A axis and repeat the display resolution entry steps.  Press the FINISH key to save parameters and return to the setup menu. ND 1200R Radial...

  • Page 78: Hot Key Assignments

    Hot key assignments The Hot Keys setup screen is used to map frequently used functions to front panel keys, remote keypad keys and foot switch keys. Hot keys can save time by eliminating the need to navigate through menus to initiate a function, or by making a function more accessible through a foot switch or remote keypad.
  • Page 79 Press a soft key to select a function type to assign. In this example a Special function will be assigned. Press a soft key to select a key or switch Highlight a specific key or switch for Press a soft key to select a function type type assignment ND 1200R Radial...
  • Page 80  Highlight the specific function and press the ENTER key to complete the assignment. In this example the Zero 2 function is assigned to foot switch 2. After the assignment, pressing foot switch 2 will zero the X and Y axes. Highlight a specific function to assign Press the ENTER key to complete the assignment...

  • Page 81: Print Formatting

    Highlight the Print Axis Labels choice field and press the YES or NO soft key to include or exclude axis labels in data sent to a computer or printer. Highlight the Print menu Select a line terminator Press a soft key to enable or disable printing of axis labels ND 1200R Radial...
  • Page 82  Highlight the Print Axis Units choice field and press the YES or NO soft key to include or exclude axis units in data sent to a computer or printer.  Highlight the Destination choice field and then press a soft key to select the RS-232 or USB port to send data to.

  • Page 83: Port Configuration

    Baud rate  Word length  Stop bits  Parity  Type of data sent on the serial port  End of character and end of line delay  Type of data sent on the USB port ND 1200R Radial...
  • Page 84 To configure ports:  Press MENU>SETUP to display the setup menu and then highlight the Ports menu item.  Highlight the Baud choice field and then press a soft key to increase (INC) or decrease (DEC) the baud rate.  Highlight the Word Len choice field and press a soft key to select a 7 or 8 bit word length.
  • Page 85 RS-232 port. Data choices include:  None: No data will be sent  Position: Current position Press the ODD or EVEN soft key to Press the NONE or POSITION soft key to select parity select an RS-232 data choice ND 1200R Radial...
  • Page 86  Highlight the EOC (end of character) Delay and EOL (end of line) Delay data fields and enter any delays in milliseconds that might be required to optimize RS-232 communication negotiations with external devices.  Highlight the USB Data choice field and press a soft key to select the data to be printed using the USB port.

  • Page 87: Audio Volume

    Highlight the Volume data field and enter a value between 0 and 10. A value of zero will disable sounds. Enter a value to adjust the volume  Press the FINISH key to return to the setup menu. ND 1200R Radial...

  • Page 88: Key Repeat Rate Adjustment

    Key repeat rate adjustment When a front panel key is pressed and held, the function repeats. The auto-repeat rate for front panel keys can be adjusted. Misc screen The Misc screen contains a data field for adjusting key repeat rate. To adjust the key repeat rate: ...

  • Page 89: Screen Saver Activation

    ND 1200R is idle prior to activation of the screen saver. The screen saver is disabled if a value of 9999 is entered. Enter the minutes the DRO is idle prior to screen saver activation  Press the FINISH key to return to the setup menu. ND 1200R Radial...

  • Page 90: Time And Date Settings

    Time and date settings Clock screen The Clock screen contains data fields for setting the time and date. To set the time and date:  Press MENU>SETUP to display the setup menu and then highlight the Clock menu item.  The date and time are set using the same method: Highlight a date or time data field and enter the value.

  • Page 91: Specifications

    Enclosure (W x H x D): 11.5” X 7.5” X 2.75” (29.21cm X 19.05 cm X 6.99 cm)  Base (W x H x D: 10” X 2” X 7.8” (25.4 cm X 5.8 cm X 19.81 cm)  Weight Enclosure: 3.5 lbs (1.6 kg)  Base: 7 lbs (3.2 kg) ND 1200R Radial...

  • Page 92: Dimensions

    Dimensions The ND 1200R enclosure, tray stand and arm mount bracket dimensions are shown in the format: mm. 2 Installation and Specifications...

  • Page 93: Arm Mount Bracket

    Arm mount bracket ND 1200R Radial...
  • Page 94 2 Installation and Specifications...
