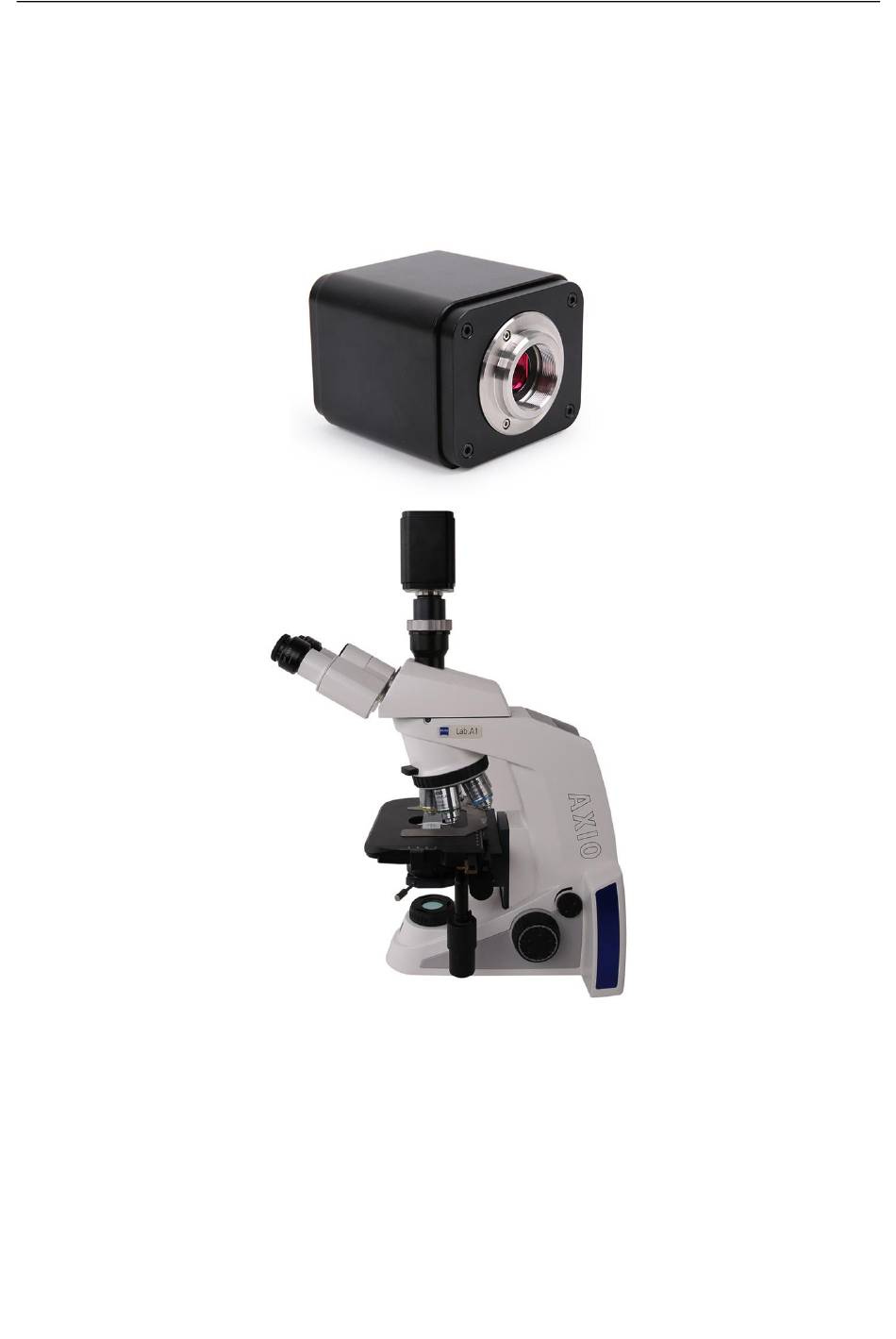

- Page 1 XCAMTOP4K Series Camera Help Manual...
- Page 2 Setting>Magnification ........................19 7.4.6 Settings>Image Format ......................19 7.4.7 Setting>Video ..........................19 7.4.8 Setting>Storage ..........................20 7.4.9 Setting>Files ..........................20 7.4.10 Setting>Time ..........................20 7.4.11 Setting>Language ........................21 7.4.12 Setting>Miscellaneous ....................... 21 Sample Photos Captured with XCAMTOP4K Series Camera ................23 Contacting Customer Service ..........................24...

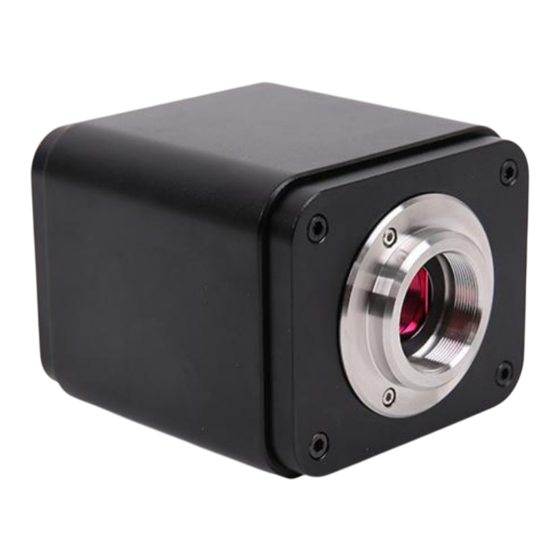

- Page 3 XCAMTOP4K Series Camera Application Figure 1 The XCAMTOP4K Series Camera The XCAMTOP4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching. The basic characteristic is listed as below: Sony Exmor/STARVIS back-illuminated CMOS sensor ...
- Page 4 XCAMTOP4K Series Camera Help Manual Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and HDMI 1080P format according to the connected monitors LAN port to connect router and switch to transfer video Comply with SDIO3.0 standard and SD card could be inserted for video and images saving...
- Page 5 XCAMTOP4K Series Camera Help Manual Dimension of XCAMTOP4K Series Installation drawings(Click to enlarge). The XCAMTOP4K series camera body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor.
- Page 6 108007/FMA075 Note: For optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube...
- Page 7 XCAMTOP4K Series Camera Help Manual XCAMTOP4K Series Camera Configurations You can use the XCAMTOP4K series camera in 5 different ways. Each application requires different hardware environment. Camera working standalone with built-in XCAMView software For this application, apart from the microscope, you only need an HDMI monitor, the supplied USB mouse,...
- Page 8 UI, different control panel or toolbar will pop up and users could operate with the mouse at ease. Figure 6 XCAMView And XCAMTOP4K Series Camera in HDMI Mode Connecting camera to computers with USB2.0 Port For Windows user (Windows XP (32bit), Windows 7/8/10/11 (32/64 bit) ), please use ToupView.
- Page 9 XCAMTOP4K Series Camera Help Manual cable and restart the camera. Figure 7 ToupView and XCAMTOP4K Series Camera in USB Mode Camera working in WLAN mode (AP mode) Please make sure your PC is WLAN enabled. Figure 8 The PC or Mobile Device Connect to the Camera through WLAN For Windows user (Windows XP (32bit), Windows 7/8/10/10/11 (32/64 bit) ), please use ToupView.
- Page 10 ToupView App and check the configuration. Normally, the active XCAMTOP4K series cameras will be automatically recognized. The live image of each camera is shown in Figure 9. For the display, the Camera List tool window is used in...
- Page 11 XCAMTOP4K Series Camera Help Manual Figure 9 ToupView and XCAMTOP4K Series Camera in WLAN AP Mode Connecting camera to the PC with LAN port This application uses the camera as the network camera. User must configure the IP of the camera and PC manually and ensure their IP addresses are in the same net.
- Page 12 Ethernet cable as shown below: Connect the port with the Ethernet cable to the PC’s network port; Insert the supplied SD card/USB flash drive (USB2.0 slot) into the XCAMTOP4K series camera’s SD card slot/USB2.0 slot; Install ToupView...
- Page 13 XCAMTOP4K Series Camera Help Manual Figure 13 Multi XCAMTOP4K Series Cameras Connecting to the Router through the LAN Port/WLAN Style The connection and configuration are just the same as in Sec.6.1 or Sec. 6.4. But here, users need to check...
- Page 14 USB2.0 port(for those connected to router with WLAN STA mode); Finally, as shown below, 2 XCAMTOP4K series cameras are connected to the router with cable and 2 XCAMTOP4K series cameras are connected to the same router with WLAN...
- Page 15 XCAMTOP4K Series Camera Help Manual wireless connection experience. Figure 14 ToupView and XCAMTOP4K Series Camera in LAN port/WLAN STA mode 13 / 26...
- Page 16 Synthesis Camera Control Toolbar on the bottom of the video window. Figure 15 The XCAMTOP4K Series Camera’s Control GUI Notes To show the Camera Control Panel move your mouse to the left of the video window. See Sec.7.2 for details...
- Page 17 XCAMTOP4K Series Camera Help Manual increased accordingly Slide to left or right to decrease or increase the proportion of on video Green Slide to left or right to decrease or increase the proportion of Green on video Blue Slide to left or right to decrease or increase the proportion of...
- Page 18 XCAMTOP4K Series Camera Help Manual Polygon Curve Scale Bar Arrow Execute Calibration to determine the corresponding relation between magnification and resolution, which will establish the corresponding relationship between measurement unit and the sensor pixel size. Calibration needs to be done with the help of a micrometer. For detailed steps of carrying out...
- Page 19 XCAMTOP4K Series Camera Help Manual Figure 19 Comprehensive Network LAN Settings Page Dynamic host control protocol allows DHCP server to automatically assign IP information to the camera. Only in Sec 6.4 DHCP networking this item should be checked, so that cameras can automatically get information from routers/switches to facilitate networking operation;...
- Page 20 XCAMTOP4K Series Camera Help Manual Figure 21 Manual DHCP and Multicast 7.4.3 Setting>Network>WLAN Wi-Fi Mode AP/STA mode to select; Channel/SSID Channel for the mode and SSID for the mode. Here, the SSID is the router’s SSID; Password Camera Password for the mode.
- Page 21 XCAMTOP4K Series Camera Help Manual Left-click the along with the Measurement command mentioned above will unfold the corresponding attribute settings to set the individual property of the Measurement Objects. 7.4.5 Setting>Magnification This page’s items are formed by the Measurement Toolbar ’s...
- Page 22 XCAMTOP4K Series Camera Help Manual Figure 26 Comprehensive Setting of Video page 7.4.8 Setting>Storage Figure 27 Comprehensive Setting of Storage Page List the file system format of the current storage device File System FAT32: The file system of SD Card is FAT32.
- Page 23 XCAMTOP4K Series Camera Help Manual Figure 29 Time Setting Time User can set Year, Month, Day, Hour, Minute Second ital.in this page. 7.4.11 Setting>Language Figure 30 Comprehensive Setting of Language Selection Setting Page English Set language of the whole software into English;...
- Page 24 XCAMTOP4K Series Camera Help Manual Ruler Select to display the ruler in the video window, otherwise not to display the ruler; Measurement Select to display the measurement toolbar in the video window, otherwise not to display the measurement toolbar; Overlay Select to support saving graphics overlay information in fusion mode, otherwise it will not support;...
- Page 25 XCAMTOP4K Series Camera Help Manual Sample Photos Captured with XCAMTOP4K Series Camera Figure 32 Cucurbit Stem.L.S. Captured with XCAMTOP4K8MPA Figure 33 Two Year Tilia Stem.C.S. Captured with XCAMTOP4K8MPA 23 / 26...
- Page 26 XCAMTOP4K Series Camera Help Manual Figure 34 Simple Cuboidal Epithelium.Sec. Captured with XCAMTOP4K8MPA Figure 35 Circuit Board Captured with XCAMTOP4K8MPA Contacting Customer Service Please contact your local distributor if you have any questions about the product. 24 / 26...
