Summary of Contents for ToupTek ATR3CMOS10300KMA

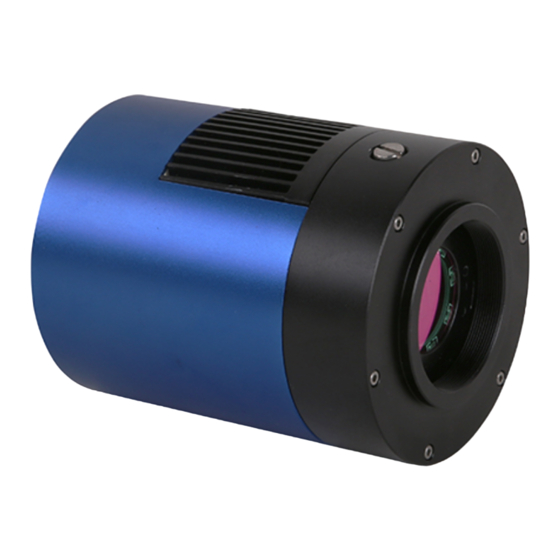

- Page 1 ATR3CMOS10300KMA Manual ATR3CMOS10300KMA User Manual Version 2.1 Apr 2020 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek-astro.com.
-
Page 2: Table Of Contents
ATR3CMOS10300KMA Manual Contents ATR3CMOS10300KMA User Manual ........................1 Description and Features ............................. 1 ATR3CMOS10300KMA Specifications and Performance ................1 Camera Specifications ............................. 1 Sony IMX492 Sensitivity ..........................1 14bit ADC and ROI ............................2 DDR3 Buffer ..............................2 Binning ................................2 Conversion Gain Switch .......................... -
Page 3: Description And Features
ATR3CMOS10300KMA Manual 1 Description and Features The ATR3CMOS10300KMA camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled monochrome CMOS sensor, ultra-low readout noise and low amp-glow. It can be also used for planetary photo shooting. -
Page 4: Atr3Cmos10300Kma User Manual
Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) Supported OS OSx(Mac OS X) Linux 2.2 Sony IMX492 Sensitivity The sensor G Sensitivity of ATR3CMOS10300KMA is 350.76mv with 1/30s. Its spectral sensitivity is shown in Figure... -
Page 5: 14Bit Adc And Roi
2.3 14bit ADC and ROI The ATR3CMOS10300KMA has built in 14bit ADC. It also has 12bit output mode for hardware binning and smaller resolution. The camera also supports hardware ROI, and the smaller the ROI size is, the higher the frame rate is. -
Page 6: Low Amp-Glow
2.8 Low Amp-Glow ATR3CMOS10300KMA has been carefully designed and is able to achieve low amp-glow photo shooting. Figure 3 and Figure 4 show the different cameras at 20°C and 5-minute exposure time with high amp glow and low amp glow. By comparison, the image captured by ATR3CMOS10300KMA shows low amp-glow. - Page 7 SNR and better quality of image. Low Noise Mode, which means users could get even It is more impressive that ATR3CMOS10300KMA comes with Low Noise Mode lower readout noise by selecting while the frame rate is reduced as sacrifice. Its significantly low read e-(Low Noise Mode).
- Page 8 ATR3CMOS10300KMA Manual The camera analysis data is shown in Table 3: Table 3 Camera Analysis Data Sensor Analysis Data Gain Value 1000 1584 2511 3981 6309 10000 15848 Rel Gain (dB) 0.00 3.92 11.9 15.8 19.8 23.6 27.6 31.5 35.2 38.9 42.2 e-/ADU 4.01 2.56...
- Page 9 ATR3CMOS10300KMA Manual The camera analysis data is shown in Table 4: Table 4 Camera Analysis Data Sensor Analysis Data Gain Value 1100 2100 3100 4100 5100 6100 7100 8100 9100 10100 Rel Gain (dB) 20.8 26.44 29.8 32.26 34.51 35.71 37.03 38.17 39.18 40.09 e-/ADU 0.44...
-
Page 10: Product Package And Connections
ATR3CMOS10300KMA Manual 3 Product Package and Connections 3.1 Packing List Figure 7 Packing Information of ATR3CMOS10300KMA Table 5 ATR3CMOS10300KMA Packing List Standard Package Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.9Kg/ box); carton size: L:28.2cm W:16.7cm H:25.5cm(TBD) ATR3CMOS series camera (M42x0.75 Mount+2”... -
Page 11: Camera Dimension And Its Mount
ATR3CMOS10300KMA Manual 3.2 Camera Dimension and Its Mount Figure 8 Dimension and Mount of ATR3CMOS10300KMA Table 6 Dimension and Mount of ATR3CMOS10300KMA Item Specification Æ80mm Diameter Height 100mm Mount M42Fx0.75mm 3.3 Camera Outline and Interface Figure 9 Camera Outline and Interface. -
Page 12: Camera Mechanical Connection With Adapter
3.4 Camera Mechanical Connection with Adapter The ATR3CMOS10300KMA can be connected to a telescope with proper adapter, or the camera lens. The most common adapters are already included in the package, but we also provide some specific adaptors based on the requirement. -
Page 13: Camera Mechanical Connection With Lens
ATR3CMOS camera with M42Fx0.75 mount 3.6 Camera Electric Connection with Accessories On the back side of ATR3CMOS10300KMA, there are 3 connection ports: DC 12V/3A power port, USB3.0/ USB2.0 port and USB-HUB. Due to the significantly larger power cunsumption of IMX492, ATR3CMOS10300KMA (including the cooling system) is now booted up only by 12V/3A power supply. - Page 14 ATR3CMOS10300KMA Manual Figure 12 Camera Electric Connection Table 10 Camera Electric Connection Details Item Specification USB3.0/USb2.0 Port To computer with USB3.0/USB2.0 cable To filter wheel with USB2.0 cable USB HUB for Accessories To guiding camera with USB 2.0 cable Power Port DC12V/3A...
-
Page 15: Atr3Cmos10300Kma And Its Software
4 ATR3CMOS10300KMA and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https//touptek-astro.com/download/, to download the latest ToupSky. The ATR3CMOS can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software. -
Page 16: Professional Camera Control Panel
ATR3CMOS10300KMA Manual Figure 14 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain Auto exposure (exposure target preset) and manual exposure (exposure time can be inputted manually); Up to 5 times gain;... -
Page 17: Powerful Compatibility
4.2 ATR3CMOS10300KMA and Dshow ToupTekDshowAstroSetup (Click the left blue link to download) DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: x86: XP SP3 or above; CPU supports SSE2 instruction set or above... -
Page 18: Phd Guiding
4.3.3 PHD Guiding A popular free guide software: http://openphdguiding.org/ ToupTek’s telescope camera support Native/ASCOM/WDM driver to run the video. 4.3.4 Nebulosity A popular cooled camera control/image process software directly supported via ASCOM. 4.3.5 MetaGuide Autoguiding software with novel method to avoid the atmospheric agitation. The latest version support GCMOS01200KPB and the guide port: http://www.astrogeeks.com/Bliss/MetaGuide/... -
Page 19: Service
ATR3CMOS10300KMA Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://Touptek-astro.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: karas@Touptek-astro.com.
