- Page 1 The AIOCAM4K Series All-in-One Camera Help Manual...
-
Page 2: Table Of Contents
Settings>Storage ........................20 7.4.9 Settings>Files ......................... 20 7.4.10 Settings>Time ........................21 7.4.11 Settings>ISP ........................21 7.4.12 Settings>EDF ........................21 7.4.13 Settings>Language ......................22 7.4.14 Settings>Miscellaneous...................... 22 Sample Photos Captured with AIOCAM4K Series All-in-One Camera ............24 Contacting Customer Service ........................26... -
Page 3: Aiocam4K Series All-In-One Camera Application

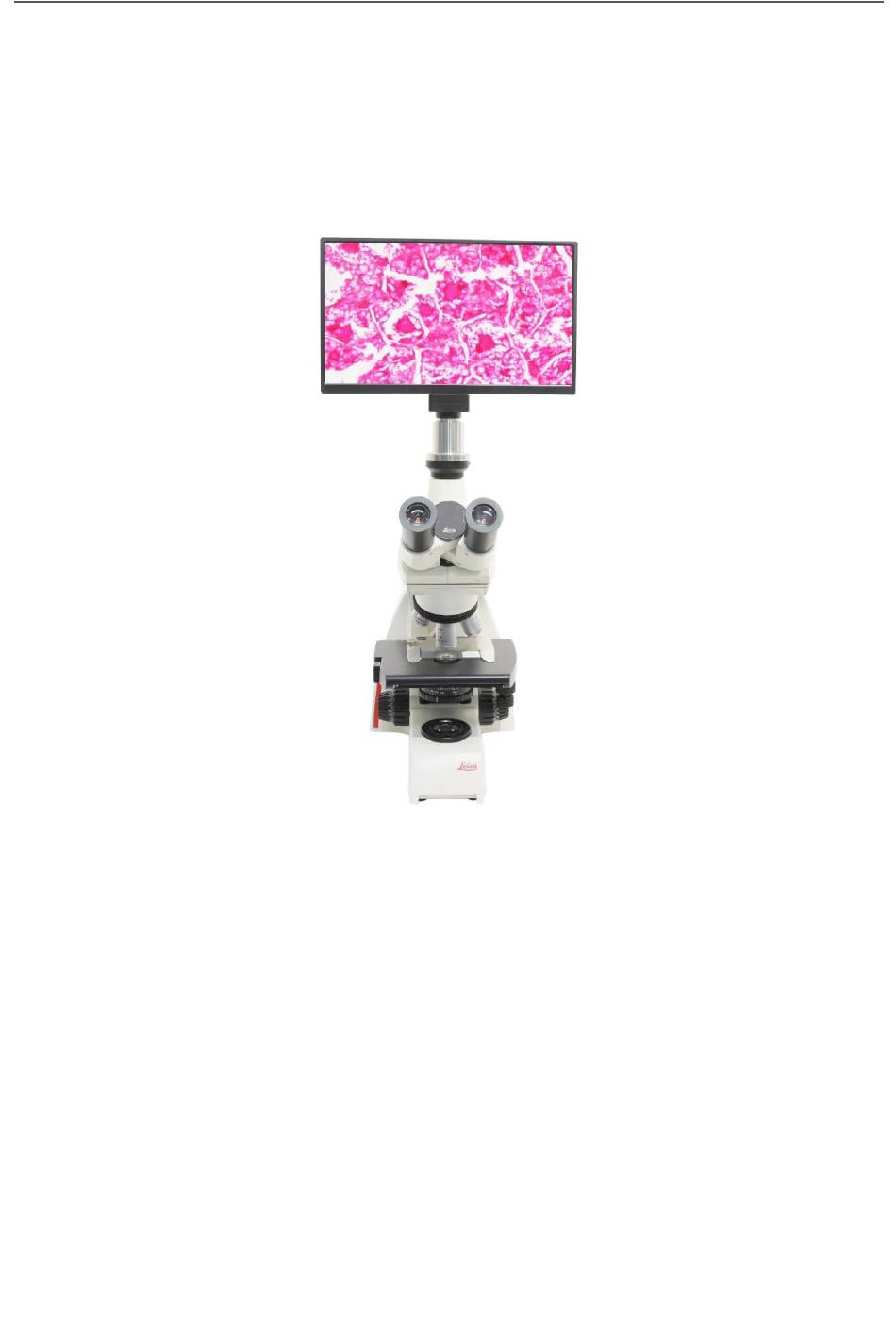

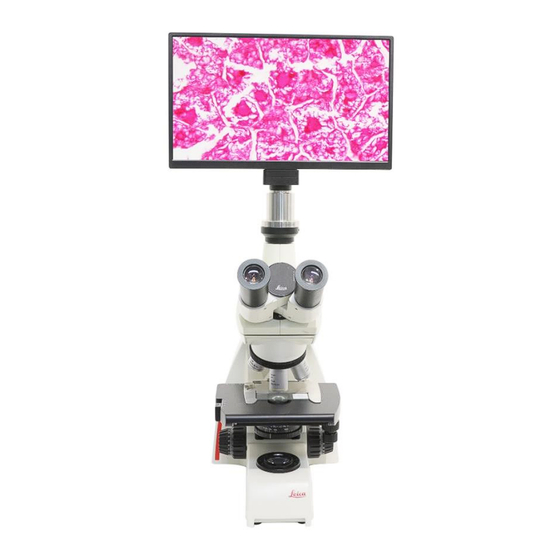

The AIOCAM4K Series All-in-One Camera Help Manual AIOCAM4K Series All-in-One Camera Application Figure 1 The AIOCAM4K Series All-in-One Camera The AIOCAM4K is a multifunctional all-in-one camera that integrates a 13.3-inch display screen and a 4K image acquisition and processing system for capturing digital images of stereo microscopes, biological microscopes, or online interactive teaching. -
Page 4: Aiocam4K Series All-In-One Camera Datasheet And Functions
The AIOCAM4K Series All-in-One Camera Help Manual AIOCAM4K Series All-in-One Camera Datasheet and Functions G Sensitivity Sensor Output Pixel(μm) Order Code Sensor & Size(mm) Binning Exposure(ms) Dark Signal (FPS/Resolution) Sony IMX678(C) 3541mv with 1/30s AIOCAM4K8MPA 2.0x2.0 60@3840*2160 0.019~1000 1/1.8"(7.68x4.32) 0.15mv with 1/30s... - Page 5 The AIOCAM4K Series All-in-One Camera Help Manual English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Multiple Language Support Japanese / Italian / Russian / Dutch / Portuguese Software Environment under WiFi/USB Video Output...
-
Page 6: Dimension Of Aiocam4K Series All-In-One Camera
The AIOCAM4K Series All-in-One Camera Help Manual Dimension of AIOCAM4K Series All-in-One Camera Figure 3 Dimension of AIOCAM4K Series All-in-One Camera 4 / 28... -
Page 7: Aiocam4K Series All-In-One Camera Packing Information
Note: For optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube... -
Page 8: Software And App
The AIOCAM4K Series All-in-One Camera Help Manual Software and App The software or the APP can be downloaded from the following link： Windows: https://www.touptekphotonics.com/download/ Linux & macOS: https://www.touptekphotonics.com/download/ iOS: https://itunes.apple.com/us/app/toupview/id911644970 Android: https://play.google.com/store/apps/details?id=com.touptek.tpview 6 / 28... -
Page 9: Aiocam4K Series All-In-One Camera Configurations
Figure 5 AIOCAM4K Series All-in-One Camera with the HDMI Monitor Insert the supplied USB mouse to the USB 2.0 interface on the right side of the AIOCAM4K series all-in-one camera; Insert the USB flash drive into the right side of the AIOCAM4K series all-in-one camera USB3.0 slot;... -
Page 10: Connecting Camera To Computers With Usb3.0 Port
The AIOCAM4K Series All-in-One Camera Help Manual Short press the power switch on the right side of the AIOCAM4K series all-in-one camera and view the video in the XCamView software. Move the mouse to the left, top or bottom of the... -
Page 11: Camera Working In Wifi Mode (Ap Mode)
ToupView/ToupLite, clicking the camera name in the Camera List group to start the live video as shown in Figure 7. Figure 7 ToupView and AIOCAM4K Series All-in-One Camera in USB Mode Camera working in WiFi mode (AP mode) Please make sure your PC is WiFi enabled. - Page 12 The AIOCAM4K Series All-in-One Camera Help Manual Plug the USB WiFi adapter into the camera’s USB3.0 port, the upper left corner of the HDMI graphics interface will display “AP mode”; Install ToupView ToupLite on your PC or install ToupView App on the mobile device, connect the PC or mobile device to the camera’s...
-
Page 13: Connecting Multi-Cameras To The Router Through The Wifi Sta Mode For The Network Application
Connecting multi-cameras to the router through the WiFi STA mode for the network application Multi AIOCAM4K series all-in-one cameras are connected to router through the WiFi STA mode, and the user can control the HDMI camera on the computer or mobile device through WiFi. - Page 14 HDMI graphics interface will display“STA Mode”; F inally, as shown below, 4 AIOCAM4K series all-in-one cameras are connected to the same router with WiFi STA mode (The number of the cameras are determined by the router performance).
- Page 15 The AIOCAM4K Series All-in-One Camera Help Manual Figure 11 ToupView and AIOCAM4K Series All-in-One Camera in WiFi STA mode 13 / 28...
-
Page 16: Brief Introduction Of Aiocam4K Ui And Its Functions
The AIOCAM4K Series All-in-One Camera Help Manual Brief Introduction of AIOCAM4K UI and Its Functions XCamView UI AIOCAM4K UI shown in Figure 6 includes a Camera Control Panel on the left of the video window, a Measurement Toolbar on the top of the video window and a... -
Page 17: The Measurement Toolbar On Top Of The Video Window
The AIOCAM4K Series All-in-One Camera Help Manual The Measurement Toolbar on top of the video window Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the... -
Page 18: Icons And Functions Of The Synthesis Camera Control Toolbar At The Bottom Of The Video Window
The AIOCAM4K Series All-in-One Camera Help Manual video window. Only when user left-click the button on to exit from the measurement mode Measurement Toolbar will they be able to doing other operations on Camera Control Panel Synthesis Camera Control Toolbar... -
Page 19: Settings>Network>General
The AIOCAM4K Series All-in-One Camera Help Manual Right click on a video file to Copy, Cut, Rename, Delete, Video Compare, and view detailed information(Details). Figure 15 Image Processing Double-click the thumbnail of the picture with the left mouse button to open the picture, and then right-click the... -
Page 20: Settings>Network> Wifi
The AIOCAM4K Series All-in-One Camera Help Manual Figure 16 Comprehensive Network General Settings Page Name The current camera name recognized as the network name 7.4.3 Settings>Network> WiFi Figure 17 Network Setup Wi-Fi Mode AP/STA mode to select; Channel/SSID Channel for the... -
Page 21: Settings>Magnification
The AIOCAM4K Series All-in-One Camera Help Manual Miscellaneous Whether to hide the label when moving the measurement objects; Line Width Used for defining width of the lines for calibration; Color Used for defining color of the lines for calibration; Calibration... -
Page 22: Settings>Storage
The AIOCAM4K Series All-in-One Camera Help Manual Figure 21 Comprehensive Setting of Video page Video Resolution Select a Video Resolution 1920x1080 or 3840x2160; Video Playback Fast Forward/Reverse internal in second unite for Video Playback Select the Video Encode format. Can be H264 or H265. -
Page 23: Settings>Time
The AIOCAM4K Series All-in-One Camera Help Manual Image or Video File Name Provide Auto Manual naming paradigm for Image Video file; Paradigm Auto With specified name as the Prefix XCamView will add digital after the Prefix for the Image Video file;... -
Page 24: Settings>Language
The AIOCAM4K Series All-in-One Camera Help Manual Figure 26 Comprehensive Setting of EDF Automatic Alignment Optionally turn on auto-alignment when there is significant displacement or scaling between images; Sensitivity Select the sensitivity of EDF; Window size Select the window size for displaying real-time images during EDF;... - Page 25 The AIOCAM4K Series All-in-One Camera Help Manual Figure 28 Comprehensive Miscellaneous Settings Page Ruler Select to display the ruler in the video window, otherwise not to display the ruler. You can choose the ruler color; Measurement Select to display the measurement toolbar in the video window, otherwise not to display the measurement toolbar;...
-
Page 26: Sample Photos Captured With Aiocam4K Series All-In-One Camera
The AIOCAM4K Series All-in-One Camera Help Manual Sample Photos Captured with AIOCAM4K Series All-in-One Camera Figure 29 Corn Root Tip.L.S Captured with AIOCAM4K8MPA Figure 30 Three Year Tilia Stem.C.S Captured with AIOCAM4K8MPA 24 / 28... - Page 27 The AIOCAM4K Series All-in-One Camera Help Manual Figure 31 Corn Leaf Captured with AIOCAM4K8MPA Figure 32 Circuit Board Captured with AIOCAM4K8MPA 25 / 28...
-
Page 28: Contacting Customer Service
The AIOCAM4K Series All-in-One Camera Help Manual Contacting Customer Service Please contact your local distributor if you have any questions about the product. 26 / 28...
