- Page 1 The HDMI 4K Series Camera Help Manual The HDMI 4K Series Camera Help Manual...
-
Page 2: Table Of Contents
The HDMI 4K Series Camera Help Manual Contents The HDMI 4K Series Camera Help Manual ........................ 1 The Application of the HDMI 4K Series Camera ....................1 Available Ports on the Back of the Camera Body ....................1 HDMI 4K Camera Datasheet ..........................2 HDMI 4K Camera Function Description ...................... -
Page 3: The Hdmi 4K Series Camera Help Manual

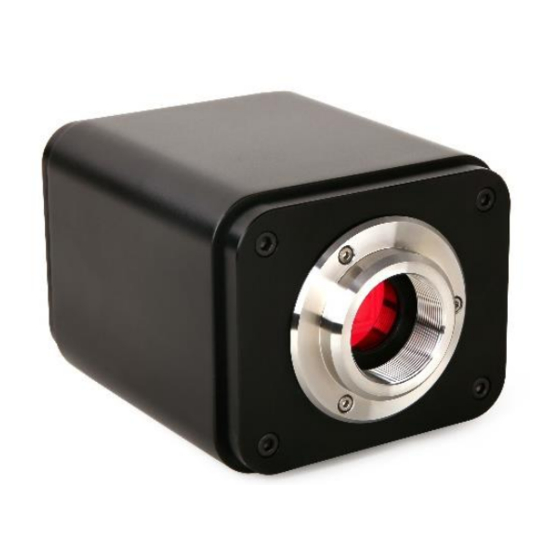

The Application of the HDMI 4K Series Camera Figure 1-1 The HDMI 4K Camera The HDMI 4K series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching. The basic characteristic is listed as below: ... -
Page 4: Hdmi 4K Camera Datasheet
The HDMI 4K Series Camera Help Manual HDMI 4K Camera Datasheet G Sensitivity Sensor & Pixel Exposure Order Code FPS/Resolution Binning Size(mm) (μm) (ms) Dark Signal 60@3840*2160(HDMI) Sony IMX334(C) 505mv with 1/30s XCAM4K8MPA 0.04ms~1000 2.0x2.0 60@1920*1080(HDMI) XP4K8MA 1/1.8"(7.68x4.32) 0.1mv with 1/30s... -
Page 5: Other Functions
The HDMI 4K Series Camera Help Manual Other Functions Function Name Function Description Embedded RTC(Optional) To support accurate time on board Restore Factory Settings Supported Multiple Language Support English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian... -
Page 6: Software And App
(Please choose 1 of them for your telescope) 108013/FTA075 Note: For K and L optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;... -
Page 7: Camera Working In Wlan Mode (Ap Mode)
The HDMI 4K Series Camera Help Manual Insert the supplied SD card/USB flash disk (USB3.0 interface) into the HDMI camera SD card slot/USB3.0 interface; Connect the camera to the power adapter and switch it on; Switch on the displayer and view the video in the XCamView software. - Page 8 The HDMI 4K Series Camera Help Manual Figure 7-2 The PC or Mobile Device Connect to the Camera through WLAN The steps to start the camera are listed below: Start the camera according to Sec. 7.1. After the camera is running, moving the mouse to the bottom...
-
Page 9: Connecting Camera To The Pc With Gigabit Ethernet Port
The HDMI 4K Series Camera Help Manual Camera List tool window is used in the ToupView/ToupLite software, and the Camera Thumbnail is used in the ToupView App. Connecting camera to the PC with Gigabit Ethernet port This application uses the camera as the network camera. User must configure the IP of the camera and PC manually and ensure their IP addresses are in the same net. -
Page 10: Connecting Multi-Cameras To The Router Through The Ge Port For The Network Application
The HDMI 4K Series Camera Help Manual After the above configurations are finished, user can connect the HDMI 4K camera to the computer through the USB to Ethernet adapter as shown below: Connect the GE port with the Ethernet cable to the PC’s network port;... - Page 11 The HDMI 4K Series Camera Help Manual Figure 7-6 Multi HDMI 4K Cameras Connecting to the Router through the Gigabit Ethernet Port/WLAN Style The connection and configuration are just the same as in Sec.7.1 or Sec. 7.3. But here, users need to check DHCP.
- Page 12 The HDMI 4K Series Camera Help Manual Install the ToupView /ToupLite software on your PC. Alternatively, install the free ToupView App on the mobile device; Plug the Ethernet cable into the camera’s port and the other end to the PC (for those connected to router with WLAN STA mode );...
- Page 13 The HDMI 4K Series Camera Help Manual ToupView/ToupLite software or ToupView App and check the configuration. Normally, active HDMI 4K cameras are automatically recognized. The live image of each camera is displayed. For the display, the Camera List tool window is used in the...
-
Page 14: Brief Introduction Of Hdmi 4K Ui And Its Functions
The HDMI 4K Series Camera Help Manual Brief Introduction of HDMI 4K UI and Its Functions XCamView UI HDMI 4K UI shown in Figure 8-1 includes a Camera Control Panel on the left of the video window, a Measurement Toolbar... -
Page 15: The Camera Control Panel On The Left Side Of The Video Window
The HDMI 4K Series Camera Help Manual The camera control panel on the left side of the video window Camera Control Panel controls the camera to achieve the best video or image quality according to the specific applications; It will pop up automatically when the mouse cursor is moved to the left side of the video... -
Page 16: The Measurement Toolbar On Top Of The Video Window
The HDMI 4K Series Camera Help Manual The Measurement Toolbar on top of the video window Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the... - Page 17 The HDMI 4K Series Camera Help Manual Arrow Execute Calibration to determine the corresponding relation between magnification and resolution, which will establish the corresponding relationship between measurement unit and the sensor pixel size. Calibration needs to be done with the help of a micrometer. For detailed steps of carrying out...
-
Page 18: Icons And Functions Of The Synthesis Camera Control Toolbar At The Bottom Of The Video Window
The HDMI 4K Series Camera Help Manual Icons and functions of the Synthesis Camera Control Toolbar at the bottom of the video window Icon Function Icon Function Zoom In the Video Window Zoom Out the Video Window Horizontal Flip Vertical Flip... - Page 19 The HDMI 4K Series Camera Help Manual By default, unicast function is used. Only in Sec 6.4 networking environment, when the router/switch has multicast function, Unicast/Multicast camera can switch to multicast mode, which can save the network bandwidth consumed by the camera and facilitate the connection of more cameras in the same network;...
- Page 20 The HDMI 4K Series Camera Help Manual 8.4.3 Setting>Network>WLAN WiFi Mode AP/STA mode to select; Channel/SSID Channel for the mode and SSID for the mode. Here, the SSID is the router’s SSID; Password Camera Password for the mode. Router Password...
- Page 21 The HDMI 4K Series Camera Help Manual Figure 8-8 Comprehensive Magnification Calibration Settings Page Name Names such as 10X, 40X, 100X are based on magnification of the microscopes. For continuous zoom microscopes, ensure that the selected magnification coincides with the scale alignment line on the microscope zoom knob; Users could also edit the name of the magnification with other information, for example, microscope mode, users name, etc.
- Page 22 The HDMI 4K Series Camera Help Manual 8.4.7 Setting>Storage Figure 8-10 Comprehensive Setting of SD Card Setting Page Prefered Storage SD Card: Select it to save the video and image to the SD card. Page USB Flash Disk: Select it to save the video and image to the SD card.
- Page 23 The HDMI 4K Series Camera Help Manual 8.4.9 Setting>Language Figure 8-12 HDMI 4K Comprehensive Setting of Language Selection Setting Page English Set language of the whole software into English; Simplified Chinese Set language of the whole software into Simplified Chinese;...
-
Page 24: Sample Photos Captured With Hdmi 4K Series Camera
The HDMI 4K Series Camera Help Manual Sample Photos Captured with HDMI 4K Series Camera Rabbit Emdryo captured XCAM4K8MPA Ovary Captured with XCAM4K8MPA 22 / 26... - Page 25 The HDMI 4K Series Camera Help Manual Cotton Stem captured with XCAM4K8MPA Taste Bad Captured with XCAM4K8MPA 23 / 26...
-
Page 26: 10 Contacting Customer Service
The HDMI 4K Series Camera Help Manual MK54-40 Corn Leaf 10 Contacting Customer Service Please contact your local distributor if you have any questions about the product. 24 / 26...
