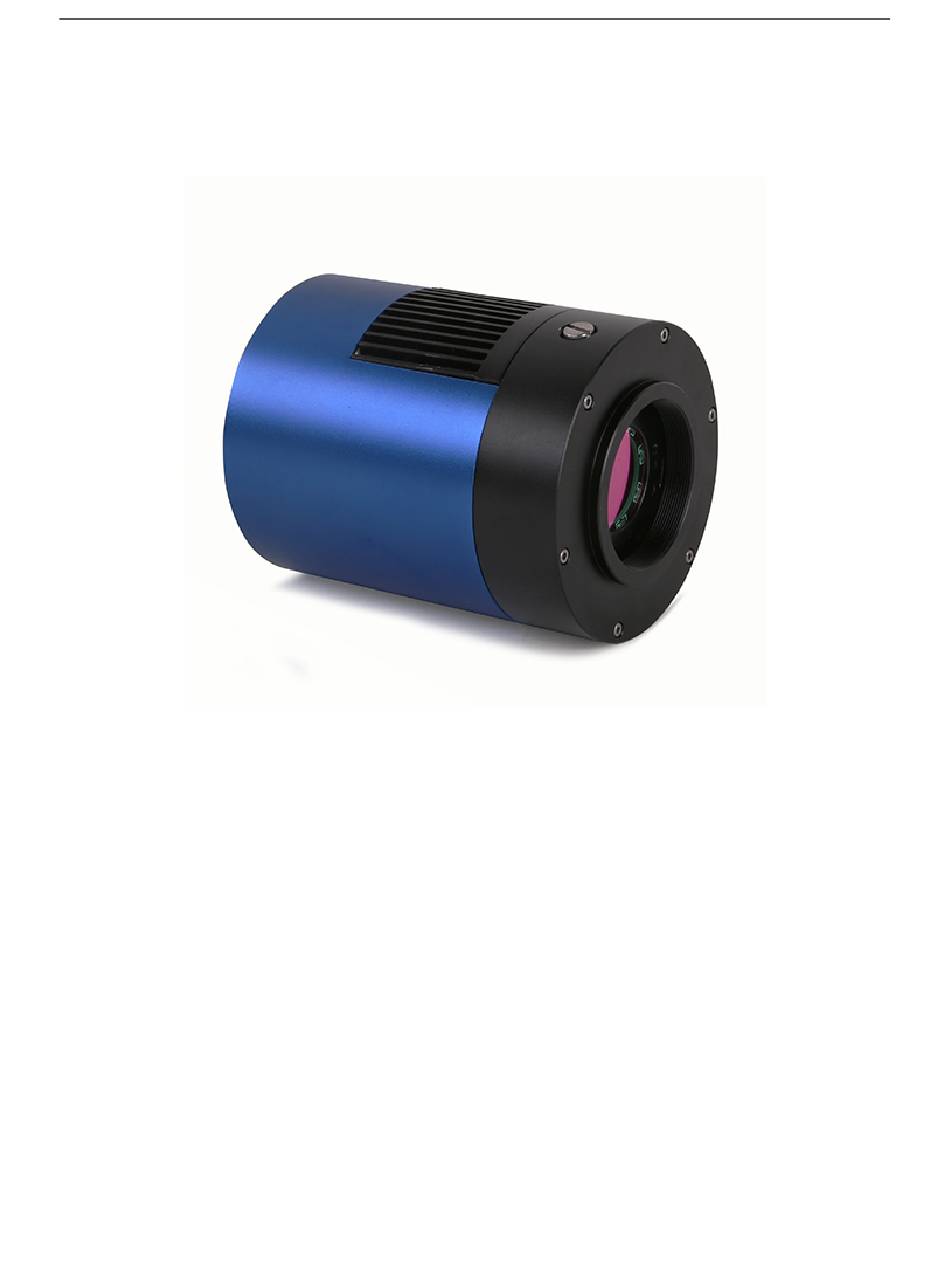

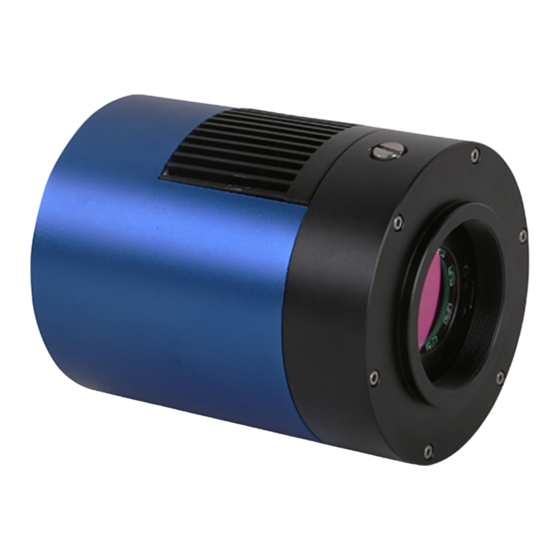

- Page 1 ATR3CMOS01700KMA Manual ATR3CMOS01700KMA User Manual Version 1.0 Aug 2023 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek-astro.com.
-
Page 2: Table Of Contents
ATR3CMOS01700KMA Manual Contents ATR3CMOS01700KMA User Manual ........................1 Description and Features ............................. 1 ATR3CMOS01700KMA Specifications and Performance ................1 Camera Specifications ............................. 1 Sony IMX432 Sensitivity ..........................1 12bit ADC and ROI ............................2 DDR3 Buffer ..............................2 Binning ................................2 Conversion Gain Switch .......................... -
Page 3: Description And Features
1 Description and Features The ATR3CMOS01700KMA camera is designed specifically for astrophotography. It is mainly used for solar photo shooting, since the camera has cooled CMOS sensor, low readout noise. It can be also used for planetary photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography experience. -
Page 4: Atr3Cmos01700Kma User Manual
Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) Supported OS OSx(Mac OS X) Linux 2.2 Sony IMX432 Sensitivity The sensor G Sensitivity of ATR3CMOS01700KMA is 8100mv with 1/30s. Its spectral sensitivity is shown in Figure 1. -
Page 5: 12Bit Adc And Roi
Figure 1 IMX432 Spectral Sensitivity Characteristic 2.3 12bit ADC and ROI The ATR3CMOS01700KMA has built in 12bit ADC. The camera also supports hardware ROI, and the smaller the ROI size is, the higher the frame rate is. Table 2 shows the frame rate of the ATR3CMOS01700KMA in 12/8bit mode, USB3.0 / USB2.0 data transfer interface at different resolutions: Table 2 ATR3CMOS01700KMA Frame Rate at Different Resolution/Data Bit/Data Transfer (USB3.0/ USB2.0) -
Page 6: Camera Performance Analysis
ATR3CMOS01700KMA Manual Thermoelectric Cooling The cooling system of ATR3CMOS01700KMA is two-stage (TEC) with controllable electric fan assisting heat dissipation. The TEC system is controlled by PID algorithm, which allows the TEC to be precisely regulated towards the target temperature with 0.1°C deviation. - Page 7 ATR3CMOS01700KMA Manual Camera setting used for performance analysis is shown below: Full resolution RAW 12-bit mode Temperature: -10°C Figure 2 shows the curves of the camera analysis data in Table 3 Figure 2 e/ADU, Read Noise, Full Well and Dynamic Range for ATR3CMOS01700KMA The camera analysis data is shown in Table 3:...
- Page 8 ATR3CMOS01700KMA Manual Sensor Analysis Data Gain Value 1121 2508 5615 12566 24999 Rel Gain (dB) 0.00 6.97 13.98 20.99 27.99 34.99 41.98 47.96 e-/ADU 4.84 2.15 0.95 0.43 0.19 0.09 0.04 0.02 Read Noise (e-) 4.33 3.33 2.82 2.48 1.85 1.36...
- Page 9 ATR3CMOS01700KMA Manual Camera setting used for performance analysis is shown below: Full resolution RAW 12-bit mode Temperature: -10°C Figure 3 shows the curves of the camera analysis data in Table 4 Figure 3 e/ADU, Read Noise, Full Well and Dynamic Range for ATR3CMOS01700KMA The camera analysis data is shown in Table 4...
- Page 10 ATR3CMOS01700KMA Manual Sensor Analysis Data Gain Value 1121 2508 5615 12566 24999 Rel Gain (dB) 0.00 6.97 13.98 20.99 27.99 34.99 41.98 47.96 e-/ADU 25.04 11.38 2.26 1.02 0.44 Read Noise (e-) 21.94 16.66 13.52 12.2 10.67 8.67 7.37 6.99...
-
Page 11: Product Package And Connections
ATR3CMOS01700KMA Manual 3 Product Package and Connections 3.1 Packing List Figure 4 Packing Information of ATR3CMOS01700KMA Table 5 ATR3CMOS01700KMA Packing List Standard Package Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.9Kg/ box); carton size: L:28.2cm W:16.7cm H:25.5cm(TBD) ATR3CMOS series camera (M42x0.75 Mount+2”... -
Page 12: Camera Dimension And Its Mount
ATR3CMOS01700KMA Manual 3.2 Camera Dimension and Its Mount Figure 5 Dimension and Mount of ATR3CMOS01700KMA Table 6 Dimension and Mount of ATR3CMOS01700KMA Item Specification Æ80mm Diameter Height 100mm Mount M42Fx0.75mm 3.3 Camera Outline and Interface Figure 6 Camera Outline and Interface. -
Page 13: Camera Mechanical Connection With Adapter
3.4 Camera Mechanical Connection with Adapter The ATR3CMOS01700KMA can be connected to a telescope with proper adapter, or the camera lens. The most common adapters are already included in the package, but we also provide some specific adaptors based on the requirement. -
Page 14: Camera Mechanical Connection With Lens
ATR3CMOS camera with M42Fx0.75 mount 3.6 Camera Electric Connection with Accessories On the back side of ATR3CMOS01700KMA, there are 3 connection ports: DC 12V/3A power port, USB3.0/ USB2.0 port and USB-HUB. The USB-HUB provides connection with other devices, which allows user to avoid the mess of cable management. Once... - Page 15 ATR3CMOS01700KMA Manual Figure 9 Camera Electric Connection Table 10 Camera Electric Connection Details Item Specification USB3.0/USb2.0 Port To computer with USB3.0/USB2.0 cable To filter wheel with USB2.0 cable USB HUB for Accessories To guiding camera with USB 2.0 cable Power Port DC12V/3A...
-
Page 16: Atr3Cmos01700Kma And Its Software
4 ATR3CMOS01700KMA and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https//touptek-astro.com/download/, to download the latest ToupSky. The ATR3CMOS can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software. -
Page 17: Professional Camera Control Panel
ATR3CMOS01700KMA Manual Figure 11 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain Auto exposure (exposure target preset) and manual exposure (exposure time can be inputted manually); Up to 5 times gain;... -
Page 18: Powerful Compatibility
4.2 ATR3CMOS01700KMA and Dshow ToupTekDshowAstroSetup (Click the left blue link to download) DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: x86: XP SP3 or above; CPU supports SSE2 instruction set or above... -
Page 19: Phd Guiding
4.3.3 PHD Guiding A popular free guide software: http://openphdguiding.org/ ToupTek’s telescope camera support Native/ASCOM/WDM driver to run the video. 4.3.4 Nebulosity A popular cooled camera control/image process software directly supported via ASCOM. 4.3.5 MetaGuide Autoguiding software with novel method to avoid the atmospheric agitation. The latest version support GCMOS01200KPB and the guide port: http://www.astrogeeks.com/Bliss/MetaGuide/... -
Page 20: Service
ATR3CMOS01700KMA Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://Touptek-astro.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: karas@Touptek-astro.com.
