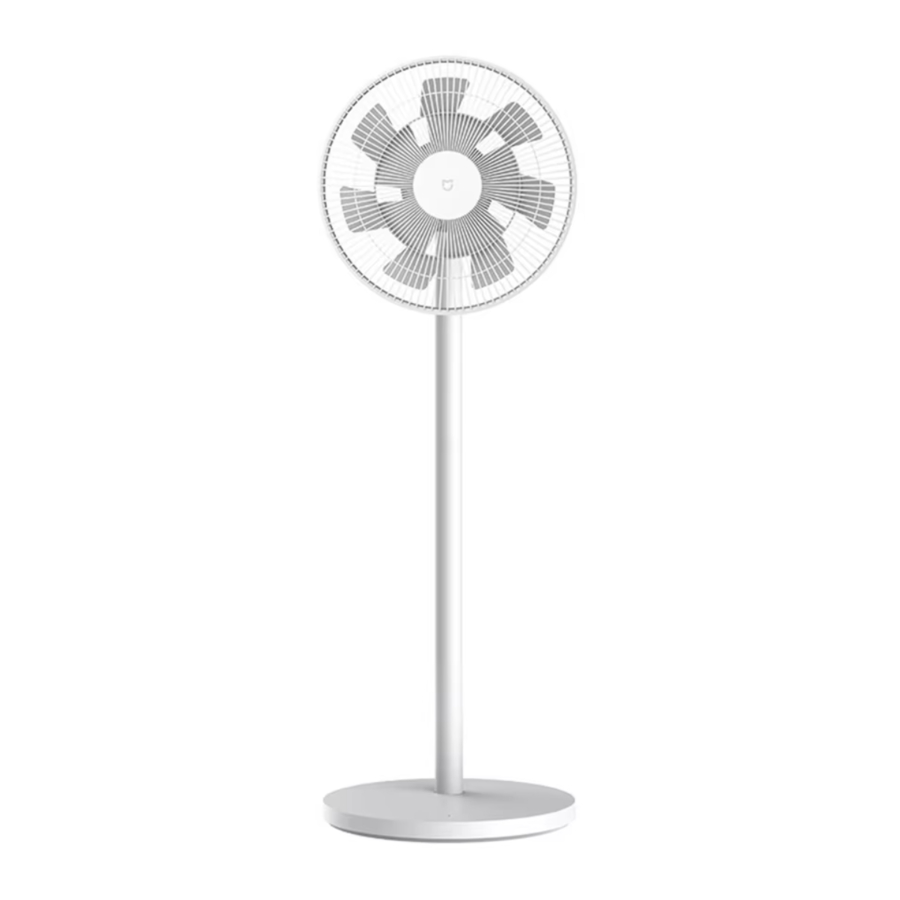

Xiaomi Smart Standing Fan 2 (BPLDS02DM) Manual

Package Contents

Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

Product Overview

Installation

1. Install the fan base
   Standing fan mode:
   Connect motor & upper stand to the lower stand, and then connect lower stand to the base, as illustrated. Once you hear a click, the parts have been installed successfully.
   Table fan mode:
   Connect motor & upper stand to the base. Once you hear a click, the parts have been installed successfully.
   Note: Press the release button to remove the lower stand.

2. Open the fan assembly
   Turn the front grille counterclockwise until it separates from the rear grille. Remove the front and rear grille, then take out the fan blade assembly.

3. Install the rear grille
   Install the rear grille onto the motor with " " facing upwards, and then install and turn the rear grille knob clockwise to firmly fix the rear grille to the shaft of the motor.

4. Install the fan blade assembly
   Align the center hole of the fan blade assembly with the motor's shaft to install it into position, then install the fan blade assembly knob onto the motor's shaft. Turn the knob counterclockwise to fix the fan blade assembly to the motor's shaft.

5. Install the front grille
   Align the front grille alignment mark with the rear grille le alignment mark, and make sure the front grille is properly embedded into the rear grille. Turn the front grille clockwise until the front grille alignment mark aligns the rear grille right alignment mark. Make sure the grilles are securely fastened.

6. Fasten the front grille
   Insert fan grille screw into the hole at the bo om of the fan grille. Turn the screw clockwise by using the included hex key to tighten it.


How to Use

Connect to a power outlet

Plug the power cord into a power outlet. Once you hear a beep, the fan is connected successfully.

Turning On/Off

Turning On
Press the button to start the fan. When turned on for the first time, the default speed is slow (1) and the mode is direct breeze.

Turning Off
Press the button to stop the fan while it is running.

Switching Speed/Mode

Switching Speed
Press the button to adjust the speed, and the corresponding indicators will light up (see table below). After the fan is turned off and turned back on again, the speed will be the last used one.

Speed	Slow (1)	Medium (2)	Fast (3)	Turbo (4)
Indicator

Note: means the indicator is on; means the indicator is off.

Switching Mode
Press and hold the button to switch between direct breeze and natural breeze. The indicator is off while in direct breeze mode and is on while in natural breeze mode. After the fan is turned off and turned back on again, the mode will be the last used one.

Enable/Disable Oscillation

Press the button to enable or disable oscillation. You can set the oscillation angle range in the app. After the fan is turned off and turned back on again, the oscillation setting will be the last used one. Unplug then plug the fan in or reset the Wi-Fi connection, then turn on the fan. It will automatically oscillate its angle if enabling the oscillation function. The oscillation time varies depending on different angles, please wait with patience.
Note: When the Wi-Fi connection is reset, the oscillation angle range will change to the default angle of 90°.

Scheduled Turn-off

Press the button to cycle through the scheduled turn-off times: 1 hour, 2 hours, 3 hours, 4 hours, and disabled, and the corresponding indicator(s) will light up (see table below). Five seconds after using the scheduled turn-off function, the indicator(s) resume to indicate the corresponding status of the current speed.

Scheduled	Disabled	1 hour	2 hours	3 hours	4 hours
Indicator

Note: means the indicator is on; means the indicator is off.
For more scheduled turn-off options (up to 8 hours), please go to the Mi Home/Xiaomi Home app.

Adjust the Airflow Direction

Gently lift or push down the fan's head or fan grille to adjust the airflow upwards or downwards.

Connect with the Mi Home App

This product works with Mi Home/Xiaomi Home app*. Control your device with Mi Home/Xiaomi Home app.
Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search "Mi Home/Xiaomi Home" in the app store to download and install it. Open Mi Home/Xiaomi Home app, tap "+" on the upper right, and then follow prompts to add your device.
* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

3D74CD75

Note: The version of the app might have been updated, please follow the instructions based on the current app version.

Connecting to Wi-Fi

Simultaneously press and hold the buttons and . Once you hear a long beep, the fan is awaiting a connection, then you can pair it with a device via the app.

Wi-Fi Status & Indicator Description

Resetting Wi-Fi Connection

Simultaneously press and hold the buttons and . Once you hear a long beep, the Wi-Fi connection has been reset successfully and then the fan is awaiting a connection. The Wi-Fi connection needs to be reset on the circumstances listed below.

• The Xiaomi account that the fan is paired with has been changed.
• The router that the fan is connected to has been changed.
• The account or password of the router that the fan is connected to has been changed.
• The Mi Home/Xiaomi Home app is unable to control the fan.

Enabling/Disabling Wi-Fi Connection

Simultaneously press the buttons and when the fan is working, then the Wi-Fi connection is disabled and the fan is turned off. When the fan is turned on, the Wi-Fi connection is enabled automatically.

Child Lock Function

To disable the function of child lock, go to the page of Mi Smart Standing Fan 2 in the Mi Home/Xiaomi Home app, or simultaneously press and hold the buttons and until you hear a long beep.
Note: Resetting the Wi-Fi connection or unplugging and plugging in the fan again can also disable this function.

Care & Maintenance

Washable Parts

The parts listed below can be cleaned with a soft cloth or sponge using water or neutral detergent.

Note: Stop and unplug the fan, then disassemble it and clean its parts. After cleaning, make sure all parts are completely dry before installing them and using the fan again. Avoid direct sunlight.

Not Washable Parts

The parts listed below can be wiped clean with a soft, dry cloth.

Note: Do not rinse the parts listed above with water.
Do not use thinner, gasoline, detergent or alkaline detergent to clean any parts.

Troubleshooting

Specifications

Safety Instructions

READ AND SAVE THESE INSTRUCTIONS

WARNINGS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• Do not use this fan in a place where it will easily fall over or where there are other unstable objects nearby.
• Do not use this fan in hot and humid environments such as a bathroom.
• Do not use this fan if its power cord is damaged or its power plug is loose.
• Do not use this fan if its front grille is not installed, or its rear grille is loose or fell off.
• Do not allow children or adults who are incapable of operating this fan to use this product.
• Do not attempt to disassemble or repair this fan by yourself.
• Do not excessively pinch, bend, or twist the power cord to prevent from exposing or breaking its core.
• Do not insert your fingers or any object into the front grille, rear grille, or the fan blades when the fan is in use.
• Keep hair and fabrics away from the fan to avoid ge ing them caught in the fan.
• Do not use any improper power outlet.
• Do not use the power cord provided with this fan for any other device.
• Make sure the fan is disconnected from the electrical outlet before removing the grille.
• When maintaining and cleaning, disassemble the fan base before removing other parts. Make sure you install the fan base last when assembling the fan.
• Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.
• Ensure that the fan is switched off from the supply mains before removing the guard.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• Do not strike, crush, and drop the product, or expose it to pressure.
• Keep the product away from water and heat sources.
• Do not use this product in environments where the temperatures and humidity are extremely high. Avoid direct sunlight.
• A separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation.
  To ensure compliance, operations at closer than this distance is not recommended.
• Limited by local law regulations, version for North America does not have region selection option.

PRECAUTIONS

Installation

To avoid electric shocks, fire, personal injury, or other damage, please strictly follow the installation steps instructed by the user manual, and make sure the fan base is assembled in the last step.
Do not connect the fan to the electrical outlet until it is fully assembled.

Transportation
Turn off and unplug the fan before moving it.
Firmly hold the fan stand to avoid it from falling down and causing personal injury.

Using the Fan
Immediately stop using the fan if it makes unusual sounds, gives off bad odors, overheats, or rotates irregularly.
Do not lean on or tilt the fan while it is running.
Do not shake the fan's head repeatedly so as to avoid damage to the internal mechanism.

Power Cord
Disconnect the fan from the electrical outlet before doing maintenance or moving it.
Always unplug the fan by pulling the power plug rather than the cord.

Manufactured for: Xiaomi Communications Co., Ltd.
For further information, please go to www.mi.com

Manufactured by: Zhejiang Xingyue Electric Equipment Co., Ltd. (a Mi Ecosystem company)
Address: South Side, 24th Floor, Jinpin Building, Headquarters Center, Yongkang City, Zhejiang Province, China
