维修手册
适用机型

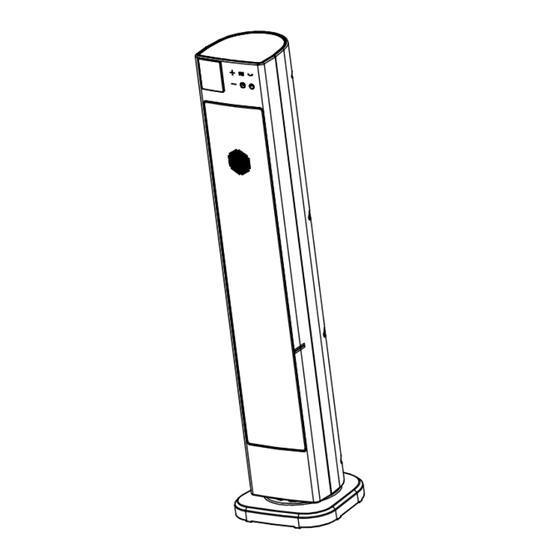

（本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and
specific appearance and configuration are subject to the real product)
编制
审核
批准
Service Manual
Applicable Models
NTH15-22GR
Prepared by
Reviewed by
Approved by
维修手册
Service Manual, 2021 v1.0
机型编码
Model No.
22057019000301
张益
吴耿耿
王俊彬
1 / 9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea NTH15-22GR
Summary of Contents for Midea NTH15-22GR
- Page 1 Service Manual, 2021 v1.0 Service Manual 维修手册 适用机型 Applicable Models 机型编码 Model No. 22057019000301 NTH15-22GR （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) Prepared by 编制 张益 Reviewed by 审核 吴耿耿...
-
Page 2: Important Safety Notice
Midea Environment Appliance Technical Maintenance Manual Copyright @2016 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales Corporation of Midea Environment Appliance. 2 / 9... -
Page 3: Safety Warning Code
维修手册 Service Manual, 2021 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions. - Page 4 维修手册 Service Manual, 2021 v1.0 整机拆卸 Dismantling of appliance Remove the front shell 拆前壳 松开固定前后壳的 8 螺钉，轻拿后壳底部，松 开顶部卡扣，即可拿出后壳。 Loosen the 8 screws that fix the front and rear housings, and pat the bottom of the rear housing to loosen the buckle to remove the front housing. 2.2 拆直流风机...
-
Page 5: Function And Operation
维修手册 Service Manual, 2021 v1.0 拆摇头结构 Dismantling the oscillation parts 松开底盖及同步电机的螺钉，取下底盖和同步 电机。 Loosen the screws that fix the Synchronous motor and the bottom cover. Then remove them. 整机的安装 Function and operation 安装前网 Install enclosure 1、将前网安装到前壳上 Install the enclosure into the front housing。 安装... - Page 6 维修手册 Service Manual, 2021 v1.0 装上风道盖板及风道，将直流风机用螺钉固 定在前壳上。 Put the wind channel cover and Wind channel on the PTC bracket. Then fix the DC fan and the front housing with 4 screws. 安装电源板及控制板 Install the PCB 将电源电路板及控制板卡入前壳的卡槽中， 并插好线束。 Install the power PCB and Control PCB into the front housing, and then plug in the harness.
- Page 7 维修手册 Service Manual, 2021 v1.0 Appendix: 附录 Electrical Schematic Diagram 整机接线图 暖风机维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 7 / 9...
- Page 8 维修手册 Service Manual, 2021 v1.0 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 平口螺丝刀/小铲刀 拆卸螺钉和铆钉 screw and slotted screwdriver/scraper rivet assemble and disassemble 尖嘴钳 辅助工具 Nipper pliers assistive tool 8 / 9...
- Page 9 如需获得厂家详细技术咨询，请联系： xxx@midea.com 环境电器事业部 海外营销公司 地址：中国广东省中山市东凤镇东阜路 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Refrigeration Division Overseas Sales Company Address: No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town, Zhongshan, Guangdong 528425 P.R.China...
