Bose CineMate 520 Manual

Introduction

About your product

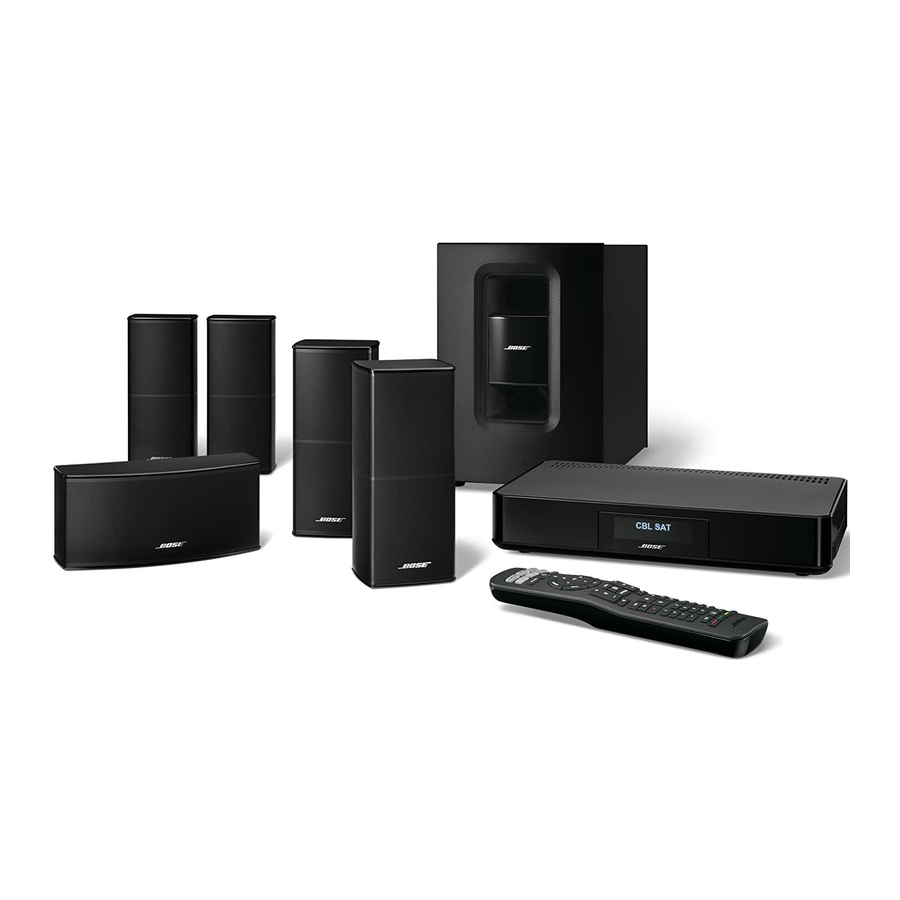

The CineMate 520 system delivers spacious, true 5.1 surround sound from small, high-performance speakers for consistent audio performance regardless of content, source or room layout.

System Features

• Advanced Bose audio processing provides natural and lifelike sound.
• ADAPTiQ audio calibration optimizes sound quality.
• Display provides access to system settings and information.
• HDMI connectivity allows easy setup and ensures high-quality audio from your connected sources.
• Supports Consumer Electronics Control (CEC).
• Programmable universal remote can control your TV, cable/satellite box and other connected sources.
• Hideaway wireless Acoustimass module provides impactful bass sound.
• Speakers can be mounted on the wall or floor stands (kit available separately).
• Supports the SoundTouch wireless adapter (available separately).

Introducing SoundTouch from Bose
With the SoundTouch wireless adapter (available separately), you can stream Internet radio, music services (where available) and your music library. If you have Wi-Fi at home, you're ready to enjoy your favorite music in any room you want.

Key Benefits

• Enjoy wireless access to Internet radio, music services and your music library.
• Stream your favorite music easily with personalized Presets.
• Works with your existing Wi-Fi network.
• Free SoundTouch app for your computer, smartphone or tablet provides more powerful control.
• Simply add additional systems at any time for a multi-room listening experience.
• Wide selection of Bose audio systems lets you choose the right solution for any room.

Unpacking the system

Carefully unpack the carton and confirm that the following parts are included:

The appropriate power cords for your region are supplied.

Note: If part of the system is damaged, do not use it. Contact your authorized Bose@ dealer or Bose customer service. Refer to the contact sheet in the carton.

Placement guidelines

To avoid wireless interference, keep other wireless equipment away from the system. Place the system outside of and away from metal cabinets, away from other audio/video components and away from direct heat sources.

Acoustimass module	Stand the Acoustimass module on its rubber feet along the same wall as your TV, or along any other wall in the front third of the room. Choose a stable and level surface. Vibration can cause the Acoustimass module to move, particularly on smooth surfaces like marble, glass or highly polished wood. Make sure there is an AC (mains) outlet nearby.
Front speakers	Place one speaker to the left and one speaker to the right of the TV. Keep each speaker within 3 ft. (1 m) of the TV, if possible. If placing the speakers in an enclosed bookcase shelf, position them at the front edge of the shelf.
Center speaker	Place the center speaker on a stable and level surface directly above or below your TV.
Rear speakers	Place the rear speakers toward the back of the room behind you at ear height (when seated) or higher, if possible.
Console	Place the console near your TV. Do NOT place the TV on top of your console. Make sure there is an AC (mains) outlet nearby.
SoundTouch adapter (available separately)	Place the SoundTouch wireless adapter within 1-6 ft. (.3-18 m) of the console. If you have the SoundTouch wireless adapter, you can begin set up. Refer to the SoundTouch wireless adapter's owner's guide for more information. Note: Do not connect the adapter to the console until prompted by the SoundTouch app.

Sample system placement

Setting Up the Acoustimass Module

Attaching the rubber feet to the Acoustimass module

Attach the rubber feet to the Acoustimass module to protect your floor.

1. Turn the Acoustimass module upside down onto a soft surface to protect it from being damaged.
2. Attach the rubber feet to the bottom of the Acoustimass module.

3. Place the Acoustimass module on its feet.

Do not place the Acoustimass module on its front, back end, side or top when in use.

4. Remove all protective films. These may affect acoustic performance if left in place.

Connecting the Acoustimass module to power

1. Plug the power cord into the connector on the Acoustimass module.

2. Plug the power cord into an AC (mains) outlet.

Setting Up the Speakers

Connecting the front speakers

1. Insert the front speaker cable's L plug into the left speaker.

2. Insert the front speaker cable's C plug into the center speaker.

3. Insert the front speaker cable's R plug into the right speaker.
4. Insert the other end of the front speaker cable into the 6-pin Speaker Connections connector on the console.


Connecting the rear speakers

1. Insert the rear speaker cable's LR plug into the left rear speaker.

2. Insert the rear speaker cable's RR plug into the right rear speaker.
3. Insert the other end of the rear speaker cable into the 4-pin Speaker Connections connector on the console.


Wall mounting the speakers

You can mount the speakers on wall brackets, floor stands or table stands. To purchase these accessories, contact your local Bose dealer or visit www.Bose.com

Do not use any other hardware to mount the speakers.

Setting Up the Console

Connecting the console to your TV's HDMI ARC connector

Use the Bose HDMI cable to connect the console to your TV.

1. Disconnect your HDMl-connected sources, such as a cable/satellite box, DVD or Blu-ray Disc player or game system, from your TV.
2. Insert one end of the Bose HDMI cable into the TV connector on the console.

3. Insert the other end of the HDMI cable into your TV's HDMI connector.
   Note: Use your TV's HDMI connector labeled ARC or Audio Return Channel if available. If your TV does not have an HDMI ARC connector, see below.


TVs without an HDMI ARC connector

If your TV does not have an HDMI ARC connector, you may need to make a secondary connection to the console with an optical, coaxial or analog stereo audio cable. Without this secondary connection, you may not hear audio from the Bose system.

Use a secondary connection in the following configurations

• You are using internal sources (such as Internet applications or an over-the-air antenna).
• You are connecting sources to your TV.

Refer to your TV owner's guide for more information.

Tip: If your TV has IN and OUT audio connector panels, use audio OUT for your secondary connection.

Connecting the console to other sources

You can connect the console to other sources, such as a cable/satellite box, DVD or Blu-ray Disc player or game system with an HDMI cable (available separately).
If your source is non-HDMI compatible, use different audio and video cables (see "Connecting to non-HDMI compatible sources")

1. Insert one end of an HDMI cable into your source's HDMI (OUT) connector.
2. Insert the other end of an HDMI cable into the appropriate HDMI connector on the console. For example, to connect a game system, connect an HDMI cable to the GAME connector.


Connecting to non-HDMI compatible sources

If your source is non-HDMI compatible, connect it to your TV using audio and video cables (available separately). Refer to your TV owner's guide for more information.

Tip: If your source has IN and OUT audio connector panels, use audio OUT.

Audio-only sources
If your audio-only source, such as a media or CD player, is non-HDMI compatible, connect it to the console's optical, coaxial or analog connector. You can use an optical, coaxial or analog cable (available separately).
Note: After connecting your audio-only source, you must set the optical, coaxial or analog input for the appropriate source. You can access these settings using the System menu (see "Using the System menu").

Connecting the console to power

1. Plug the power cord into the Power connector on the console.

2. Plug the power cord into an AC (mains) outlet.

Installing the remote control's batteries

1. Slide open the battery compartment cover on the back of the remote control.

2. Insert the two provided AA (IEC-LR6) 1.5V batteries. Match the + and - symbols on the batteries with the + and - markings inside the compartment.
3. Slide the battery compartment cover back into place.

Powering on the system

Press on the remote.
The console powers on.
The display defaults to CBL SAT for first time power on. Otherwise, the display defaults to your last used source.

Note: The system powers off after sixteen minutes of inactivity. You can disable AUTO OFF using the System menu (see "Using the System menu").

Finishing Setup

Checking for sound

1. Power on your TV.
2. If you are using a cable/satellite box or other secondary source, power on this source.
   Tip: If your secondary source is connected to your TV, select the appropriate TV input. You may need to use a different remote.
3. Power on the system.
4. Press the appropriate source button.
5. Check if sound is coming from the Bose speakers.
   Note: If you do not hear sound from the Bose speakers, see "Troubleshooting".
6. Press on the remote control. Check that no sound is coming from the TV speakers.
   Note: If you hear sound coming from your TV speakers, see "Troubleshooting".

Changing the language on the console

Use the remote control to change the language on the console.

1. Power on the system.
2. Press on the remote control.
3. Press until 10 LANGUAGE appears on the display.

4. Press and to select your language.
5. Press
   Tip: Look for the icon in the System menu if you select the wrong language.

Running the ADAPTiQ audio calibration

The ADAPTiQ audio calibration customizes the sound of the system to the acoustics of your listening area by taking five audio measurements. To perform an audio calibration, you need 10 minutes when the room is quiet.

1. Put the ADAPTiQ headset on your head
   During the ADAPTiQ audio calibration, a microphone on the top of the headset measures the sound characteristics of your room to determine optimal sound quality.

2. Insert the ADAPTiQ headset cable into the connector on the console.
3. Press on the remote control.
4. Press until 14 ADAPTiQ appears on the display.
5. Press
6. Follow the voice prompts until the system completes the process.
7. Unplug the ADAPTiQ headset from the console and store it in a safe place.
   Note: If you move the system or any furniture, run ADAPTiQ again to ensure optimal sound quality.

Using the System

Remote control buttons

Use the remote to control sources connected to your system, adjust the system volume, change channels, use playback functions, enable cable/satellite box functions and navigate the System menu.

Programming the universal remote control

You can use the remote to control your TV, cable/satellite box, DVD or Blu-ray Disc player, game system, DVR or other auxiliary source.

Consumer Electronics Control

The system supports Consumer Electronics Control (CEO). CEC allows you to control multiple HDMl-connected sources without programming the remote. You can turn on/off CEC using the System menu (see "Using the System menu").
Your source may support CEC, but refer to it with a different name. Refer to your source owner's guide for more information.

Tip: You may need to use your source's system menu to enable CEC. Refer to your source owner's guide for more information.

Test your HDMI-connected sources for CEC

Test each of your sources for CEC using the remote control.

Note: Your HDMI-connected source may not support CEC. Refer to your source owner's guide for more information.

1. Power off the Bose system.
2. Prepare your source:
   • If you are testing your TV, power off your TV.
   • If you are testing another source, power off the source. Power on your TV.
3. Press the button for the source you are testing.
   The source button glows. The source and system power on.

4. To ensure your source works properly with your remote control, press a variety of buttons that correspond with your source's functions.
   If your source does not perform one of the functions, program the remote control (see below).

Program the remote to control your source

If your source does not support CEC, you can program the remote to control your source.

1. Power on your source.
2. Locate the code for your source's brand in the Universal Remote Device Codes book (provided).
3. On the remote control, press and hold the appropriate source button until all six source buttons glow, then release.
   For example, to program your TV, press and hold
   Only the appropriate source button glows.
4. On the number keypad, enter the code for your source's brand.
   Note: If all six buttons blink three times, you entered an invalid code. Repeat steps 3 and 4.
5. Press + on the volume button.
6. Test the source for basic functions:
   • TV: press the channel buttons. Press . The settings menu appears. Press and to navigate.
   • Cable/satellite box: press . The programming guide appears. Press and to navigate.
   • DVD or Blu-ray Disc player: press . The settings menu appears. Press and to navigate.
   • Game system: press and to navigate through your menu.
7. If your source responds to basic functions, press to save your settings.

If your source does not respond
Use the remote control's code scanner to find the code for your source.

1. Press + on the volume button to try another code.
   Note: If all six buttons blink three times, you have cycled through all codes for your source.
2. Test the source for basic functions (see step 6 in "Program the remote to control your source").
3. Repeat steps 1 and 2 until your source responds.
4. Press to save your settings.

Note: Your source may not be compatible with universal remote controls. Refer to your source owner's guide for more information.

Source selection

You can switch between sources by pressing the appropriate source button on the remote control. Before you begin, program the remote to control your source (see "Program the remote to control your source").

Select a source connected to the Bose system

If your source is connected to the console and does not use CEC, follow this procedure to set the console to the appropriate mode and turn on the source.

1. Power on the system.
2. Press the button for the source you want to control.
   The source button glows.
3. Press .
   The source powers on.

Select a source connected to your TV

If your source is connected to your TV, follow this procedure to select the appropriate TV input.

1. Power on the system, your TV and the appropriate source.
2. Press to select the correct input on your TV.
   You may need to press several times to select the TV input for the source.
   On some TVs, displays a menu. Use the remote control to choose the correct TV input and close this menu.

Universal source buttons and console connectors

The source buttons on your remote control correspond with the connectors on the back of the console. For example, corresponds with the BD-DVD HDMI connector.
Your source buttons work with any source that is connected to the corresponding connector. If you have a secondary DVD or Blu-ray Disc player and connect it to the CBL-SAT connector, it can be programmed to work with
If you are using the optical, coaxial, or analog connectors, you must set the input for the appropriate source. You can access these settings using the System menu (see "Using the System menu").

Adjusting the volume

On the remote control:

• Press + to increase the volume.
• Press - to decrease the volume.
• Press to mute or unmute the audio.

Note: If you hear sound coming from your TV, see "Troubleshooting".

Function buttons

The red, green, yellow and blue buttons on the remote control correspond with the color-coded function buttons on your cable/satellite box or teletext functions.

• Cable/satellite box functions: refer to your cable/satellite box owner's guide.
• Teletext functions: correspond with color-coded page numbers, headings or shortcuts on a teletext display.

Programming a non-Bose remote control

You can program a non-Bose remote control, such as your cable/satellite box remote, to control the system. Refer to your non-Bose remote control owner's guide or cable/satellite website for instructions.
Once programmed, the non-Bose remote controls basic functions such as power on/off and volume.

Getting System Information from the Display

Understanding messages on the display

The display on the front of the console allows you to access the System menu and shows system information and icons.

Using the System menu

Use the System menu to adjust audio levels, turn on/off features (such as AUTO OFF), change the language, set the coaxial, analog and optical inputs for a particular source, run ADAPTiQ pair your Acoustimass module with the console or factory reset the system.

1. Press on the remote.
2. Press and to scroll through the System menu.
3. Press and to adjust the settings.
4. Press

Display	System state
1 AUDIO COMP	Off: (Default) No change to audio track. Enhance dialogue: Increases the level of dialogue and sound effects at low volume settings while providing full audio impact at high volume settings. Smart volume: Reduces the range of volume levels in a movie soundtrack so the difference between extremely loud outbursts and soft sounds is less noticeable.
2 AUDIO/VIDEO SYNC	Adjusts the audio delay to synchronize audio and video.
3 HDMI-CEC	On: (Default) Enables CEC (see "Consumer Electronics Control"). Off: Disables CECE
4 AUTO OFF	Enable: (Default) The system powers off after sixteen minutes of inactivity (no sound coming from the system). Disable: The system will not automatically power off.
5 SIDE AUX	Audio in: (Default) Sets the connector for an auxiliary source. Headphones: Sets the connector as a headphones input. Note: If set to Headphones input and a cable is connected, the speakers are muted. Disconnect your headphones when not in use.
6 BASS LEVEL	Adjusts bass level.
7 TREBLE LEVEL	Adjusts treble
8 CENTER LEVEL	Increases or decreases the level of dialogue for movies and -ru
9 SURROUND LEVEL	Adjusts the volume of the rear speakers relative to front speakers.
10 LANGUAGE	Changes the language on the console and ADAPTiQ
11 SET OPTICAL INPUT	Sets the optical connector to Aut0/TV (Default), CBC SAT, BD DVD, GAME or AUX source.
12 SET COAXIAL INPUT	Sets the coaxial connector to Auto/TV (Default), CBL SAT, BD DVD, GAME or AUX source.
13 SET ANALOG INPUT	Sets the analog connector to Auto/TV (Default), CBL SAT, BD DVD, GAME or AUX source.
14 ADAPTIQ	Starts the ADAPTiQ audio calibration process.
15 PAIR ACOUSTIMASS	Reconnects the Acoustimass module to the system.
16 FACTORY RESET	Sets the System menu and ADAPTiQ to the factory settings.

Error messages

Display	System state
ERROR Cannot find Acoustimass	The Acoustimass module is not connected to the console.
<SOURCE> No signal	The source is not connected to the console, or the source is connected to the console and powered off.
SIDE AUX Nothing connected	The source is not connected to the connector on the console.
ERROR Call Bose	Call Bose customer service. Refer to the contact sheet in the carton.

Acoustimass module status indicator

The status indicator on the back of the Acoustimass module provides information on system activity.

Indicator activity	Acoustimass module state
Amber	Connected to the console.
Blinking amber	Disconnected from the console.
Slow blinking amber	Available to make a wireless connection to the console.
Red	System error.

Troubleshooting

Problem	What to do
No power	Secure the Acoustimass module's and console's power cords. Reconnect the Acoustimass module's and console's power cords firmly into an AC (mains) outlet. Use the remote control to power on the system. Factory reset the system (see "Factory reset the sytem").
No sound	Unmute the system. Increase the volume. Plug the Acoustimass module and console into a live AC (mains) outlet. Insert the HDMI cable into a connector on your TV labeled ARC or Audio Return Channel. If your TV does not have an HDMI ARC connector, use a secondary audio cable in addition to the HDMI cable (see "TVs without an HDMI ARC connector"). If using a secondary audio cable, insert the cable into a connector on your TV labeled Output or OUT, not Input or IN. Secure all cable connections on the speakers, TV and connected sources. If your source is connected to your TV, select the correct TV input (see "Source selection"), Disconnect headphones when not in use. If connecting your source through the connector, enable Audio in using the System menu (see "Using the System menu"). If you are connecting headphones to the connector, enable Headphones using the System menu (see "Using the System menu"). If you see the error message Cannot find Acoustimass, pair the Acoustimass module with the console (see "Troubleshooting"). Factory reset the system (see "Factory reset the sytem").
Sound is coming from your TV speakers	Insert the HDMI cable into a connector on your TV labeled ARC or Audio Return Channel (if available). Turn off your TV speakers (refer to your TV owner's guide). Decrease your TV volume to its lowest setting.
Remote control is inconsistent or does not work	Match the + and - symbols on the batteries with the + and - markings inside the compartment (see "Installing the remote control's batteries"). Replace the battery (see "Installing the remote control's batteries"). Press the volume button on the remote control and see if the correct source button flashes. If using CEC: Point the remote control at the console. Program the remote to control your source (see "Program the remote to control your source"). If you have programmed the remote to control your source: Point the remote control at the appropriate source. Ensure you have entered the correct code for your source's brand. Program the remote with another code (see "Program the remote to control your source").
Poor or distorted sound	Remove all protective films from the system. Secure all cable connections on the speakers, TV, and connected sources. If you see the error message Cannot find Acoustimass: Plug in the Acoustimass module. Pair the Acoustimass module with the console (see "If your console cannot find the Acoustimass module"). If using the analog or connector, decrease the volume on your source. Factory reset the system (see "Factory reset the sytem") and run the ADAPTiQ audio calibration (see "Running the ADAPTiQ audio calibration").
Intermittent sound	Secure all cable connections on the speakers, TV, and connected sources. Move system away from potential interference, such as a wireless router, cordless phone, television, microwave, etc.

If your console cannot find the Acoustimass module

The Acoustimass module and console are paired at the factory. However, if you see the error message Cannot find Acoustimass on the display, perform this pairing procedure:

1. Unplug the Acoustimass module.
2. Press on the remote control.
3. Press until 15 PAIR ACOUSTIMASS appears on the display.
4. Press
   Plug in Acoustimass appears on the display.
5. Plug the AC power cord into an AC (mains) outlet.
   After the Acoustimass module connects to the console, Pairing complete appears on the display.

Factory reset the system

To troubleshoot problems, reset the System menu and ADAPTiQ to the factory settings.

1. Press on the remote control.
2. Press until 16 FACTORY RESET appears on the display.
3. Press 5
   The system resets.
4. Run the ADAPTiQ audio calibration (see "Running the ADAPTiQ audio calibration").

Reset a source button on the remote control

If you are experiencing problems with a source button on the remote control, reset the source button to the factory settings.
After performing this procedure, your source button is in CEC mode.

1. On the remote control, press and hold the appropriate source button until all six source buttons glow, then release.
   Only the appropriate source button glows.
2. On the number keypad, enter 0140.

Service connectors on the Acoustimass module

The Service and Data connectors are for service use only. Do not insert any cables into these connectors.

Care and Maintenance

Cleaning

• Clean the surface of the system with a soft, dry cloth.
• Do not use any sprays near the system. Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia or abrasives.
• Do not allow liquids to spill into any openings.

Technical information

Acoustimass module
Power rating: 100-240V ~ 50/60Hz 150W

Console
Power rating: 100-240V ~ 50/60Hz 60W

Important Safety Information

Please read this owner's guide carefully and save it for future reference.

The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of uninsulated, dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle alerts the user to the presence of important operating and maintenance instructions in the owner's guide.

•
  To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
•
  Do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the apparatus. As with any electronic products, use care not to spill liquids into any part of the product. Exposure to liquids may create a failure and/or fire hazard
• Replace only with a AA (IEC LR06) alkaline battery (or batteries).
• Do not place naked flame sources, such as lighted candles, on or near the product.

• Do not make unauthorized alterations to the product; doing so may compromise safety, regulatory compliance, system performance, and may void the warranty.
• Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using headphones, especially for extended periods.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product contains magnetic material. Contact your physician if you have questions on whether this might affect the operation of your implantable medical device.

NOTES:

• The product label is located on the bottom of the console.
• Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable.
• This product must be used indoors. It is neither designed nor tested for use outdoors, in recreational vehicles, or on boats.
• The speaker wire and interconnect cables included with the system are not approved for in-wall installation. Please check your local building codes for the correct type of wire and cable required for in-wall installation

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat
9. Protect the power supply or cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way: such as power supply or cord is damaged; liquid has been spilled or objects have fallen into the apparatus; the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Documents / Resources

References

• Headphones, Earbuds, Speakers, Soundbars, & More | Bose

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Bose CineMate 520 Manual
