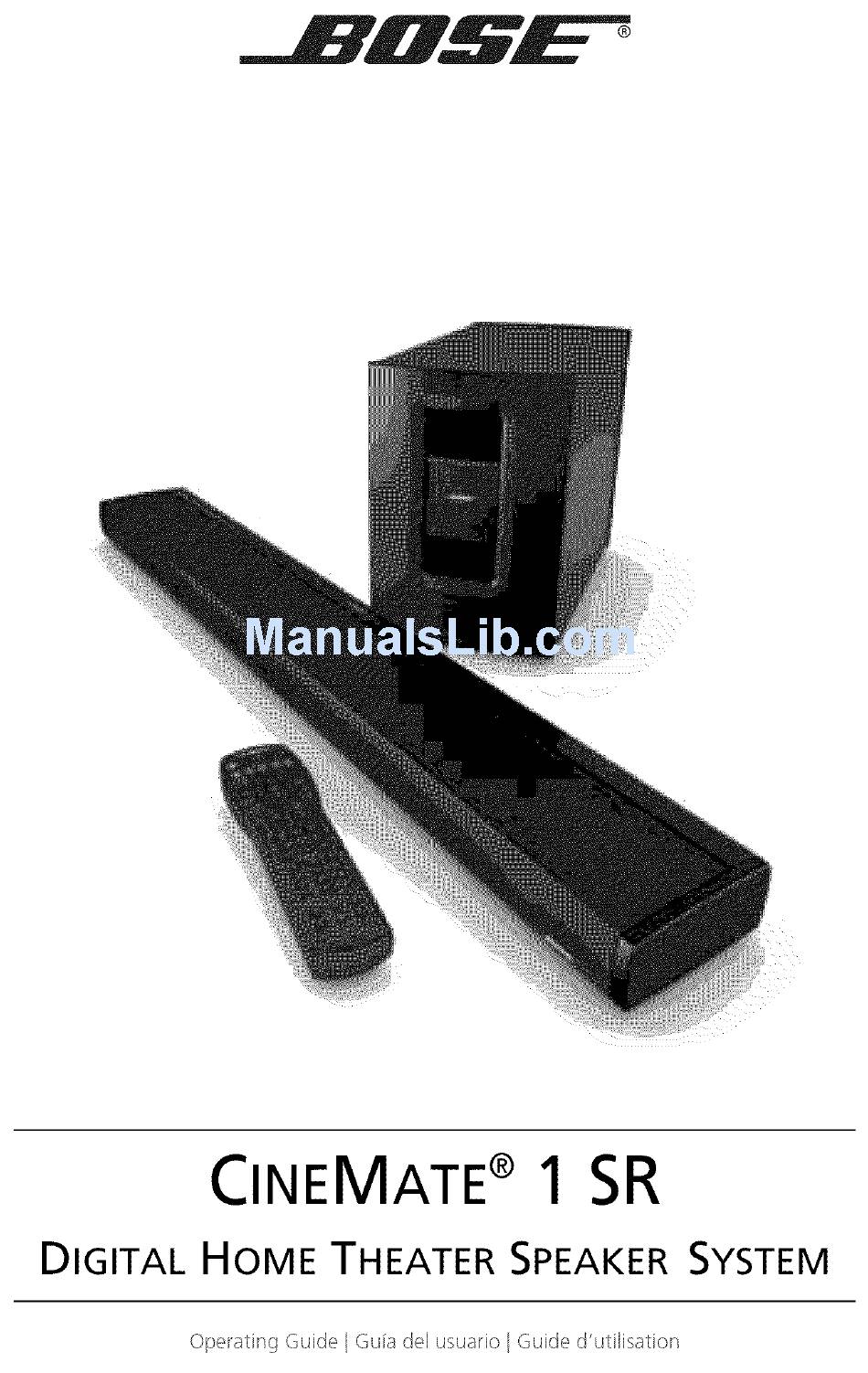

CINEMATE ® 1 SR DIGITAL HOME THEATER SPEAKER SYSTEM OpelatingGuide Guiadelusualio Guided_utilisation...
Page 2
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Bose Corporation could void the user's authority to operate this equipment. These devices comply with FCC and Industry Canada RF radiation exposure limits set forth for the general population.
CONTENTS CONTROLS AND INDICATORS Universal remote control ......... Basic functions ..........Turning the system on and off ........Controlling the volume ......... Programming the universal remote ........ Reading the system indicators ........Adjusting the bass level ........CONTROLLING SOURCES Changing the source control mode ......... Watching TV ...........
Note: Make sure the internal speakers in your TV are turned off. To confirm, press Mute on the Bose remote and check that no sound is coming from the TV..For more information, refer to "Turning off the internal speakers in your TV" in the Setup Guide.
Page 5
CONTROLS AND INDICATORS Source buttons 3, Press and hold W until all five source buttons Setup light. The remote is now in the setup mode. 4. Press _. Only this button will remain lit. 5. On the number keypad, enter the device code for your brand of TV.
CONTROLS AND INDICATORS Reading system indicators Speaker array indicators Status _ [_ Power Power indicator: Solid white ........Power on Fast blinking white ......System is muted Very fast blinking white ....System volume has reached the max or min limit Status indicator: Off ..........
Note: To control your 7-Vand other devices using the Bose remote, you must first program the remote with a device code for each device. See "Programming the universal remote" on page 4. Selects the input on your TV to the source you want to watch.
CONTROLLING SOURCES Watching To watch TV using your cable/satellite set-top box: 1, Press the TV power button to turn on your TV. power 2, Press the TV Input button to select the correct input on your TV. Press the CBL-SAT power button to turn on your cable/satellite set-top box.
CONTROLLING SOURCES To watch TV using the tuner in your TV: 1, Press the TV power button to turn on your TV. power 2, Press the TV Input button to select the correct input on your TV. 3. Press the TV source button to switch to the TV mode (the TV button will flash). source 4, Select a channel.
CONTROLLING SOURCES Navigating onoscreen menus and guides The menu and program selection buttons will control only one source at a time. Select the source you want to use first. Note: If some navigation functions are not working for a particular source, try programming a different device code into the remote.
CONTROLLING SOURCES Using playback ¢ontroJs The functionality of the source playback buttons may vary depending on the type brand of your device. For more information, see the owner's guide that came with your device. Next disc in a Next DVD chapter or music multi-disc player...
CARE MAINTENANCE No sound • Make sure the CineMate ® system is turned on and that the speaker array power indicator is on (solid white). • Make sure the CineMate system is not muted. • Increase the volume. • Verify the wireless connection between the speaker array and the Acoustimass ®...
Page 13
CineMate ®system. Too much or too • Adjust the bass level using the bass control on the Acoustimass module. little bass Refer to "Adjusting the bass level" on page 6. Red status • System error. Call Bose Customer Service. indicator English-...
CARE AND MAINTENANCE Pairing the Acoustimass ® module with the speaker array Your speaker array and Acoustimass module are paired at the factory. However, should you ever need to pair them for any reason, do the following: 1. Unplug the Acoustimass module AC power cord.
2. Label and ship the product, freight prepaid, to the address provided by the Bose organization in your country; and 3. Place any necessary return authorization number prominently on the outside of the carton.
Page 16
® Better sound through research® 2011 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM342773 Rev 00...
