CineMate
120
®
home theater system
Owner's Guide |
|
|
|
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CineMate 120 and is the answer not in the manual?

Questions and answers

Related Manuals for Bose CineMate 120

Summary of Contents for Bose CineMate 120

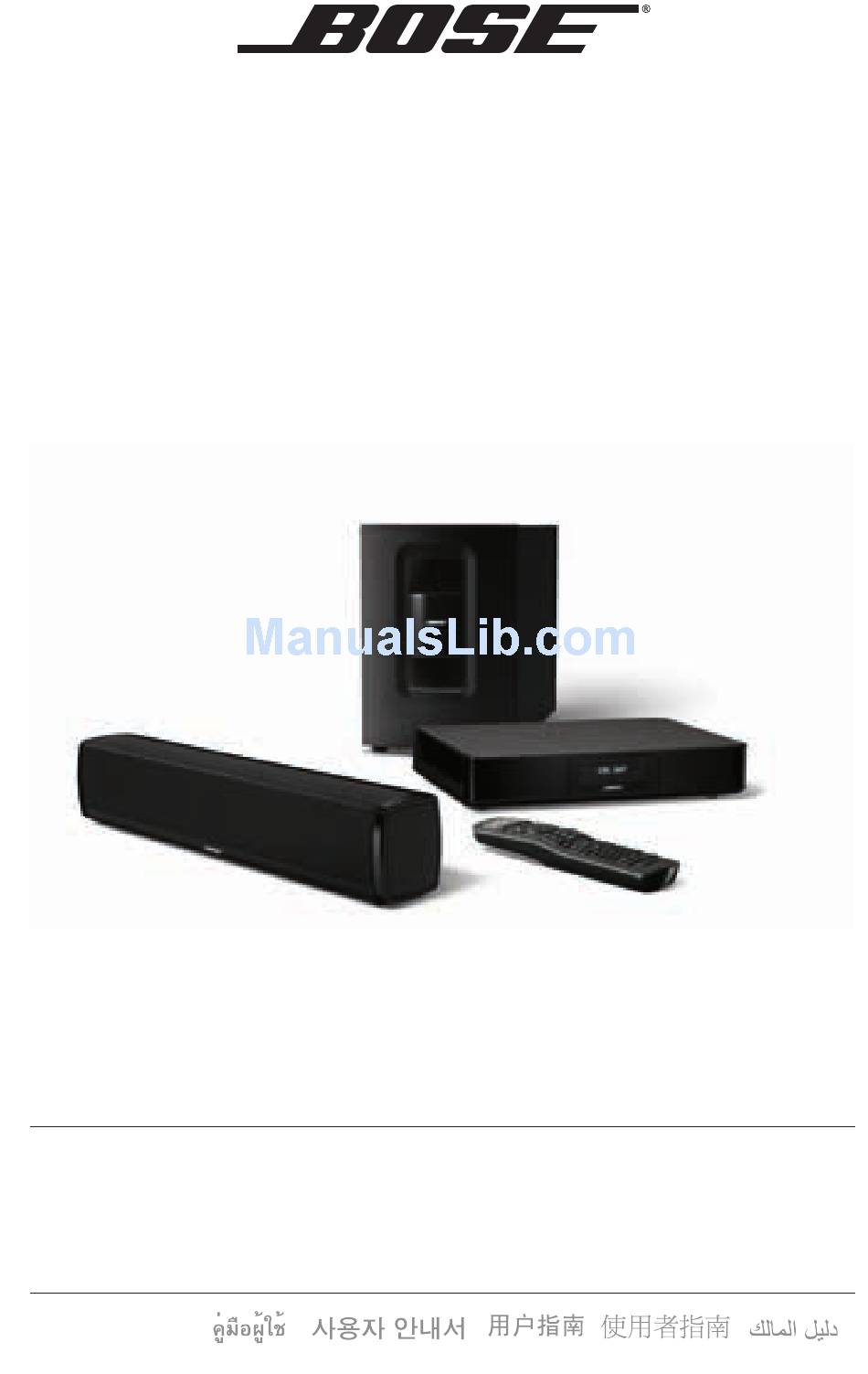

  • Page 1 CineMate ® home theater system Owner’s Guide |...

  • Page 2: Important Safety Information

    •  D onotmakeunauthorizedalterationstotheproduct;doingsomaycompromisesafety,regulatory  c ompliance,systemperformance,andmayvoidthewarranty. •  L ong-termexposuretoloudmusicmaycausehearingdamage.Itisbesttoavoidextremevolumewhen usingheadphones,especiallyforextendedperiods. WARNING: Containssmallpartswhichmaybeachokinghazard.Notsuitableforchildrenunderage3. WARNING: Thisproductcontainsmagneticmaterial.Contactyourphysicianifyouhavequestionsonwhetherthis mightaffecttheoperationofyourimplantablemedicaldevice. NOTES: • Theproductlabelislocatedonthebottomoftheconsole. •  W herethemainsplugorappliancecouplerisusedasthedisconnectdevice,suchdisconnectdeviceshallremain readilyoperable. •  T hisproductmustbeusedindoors.Itisneitherdesignednortestedforuseoutdoors,inrecreationalvehicles,or onboats. •  T hespeakerwireandinterconnectcablesincludedwiththesystemarenotapprovedforin-wallinstallation. Pleasecheckyourlocalbuildingcodesforthecorrecttypeofwireandcablerequiredforin-wallinstallation. BoseCorporationherebydeclaresthatthisproductisincompliancewiththeessentialrequirements andotherrelevantprovisionsofDirective1999/5/ECandallotherapplicableEUdirective requirements.Thecompletedeclarationofconformitycanbefoundat:www.Bose.com/compliance 2 - English...

  • Page 3: Important Safety Instructions

    11. Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsoftime. 12. Referallservicingtoqualifiedservicepersonnel. S ervicingisrequiredwhentheapparatushasbeendamagedinanyway: suchaspowersupplyorcordisdamaged;liquidhasbeenspilledorobjectshavefallenintotheapparatus;theapparatus hasbeenexposedtorainormoisture,doesnotoperatenormally,orhasbeendropped. Note:  T hisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart 15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However, thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon, theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: • Reorientorrelocatethereceivingantenna. • Increasetheseparationbetweentheequipmentandreceiver. • Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. • Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ChangesormodificationsnotexpresslyapprovedbyBoseCorporationcouldvoidtheuser’sauthoritytooperate thisequipment. Thisdevicecomplieswithpart15oftheFCCRulesandIndustryCanadalicense-exemptRSSstandard(s). Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. ThisClassBdigitalapparatuscomplieswithCanadianICES-003. CANICES-3(B)/NMB-3(B) ThisdevicecomplieswithFCCandIndustryCanadaRFradiationexposurelimitssetforthforgeneralpopulation. Itmustnotbeco-locatedorbeoperatinginconjunctionwithanyotherantennasortransmitters. Thetemperaturerangeofthisproductis32ºF(0ºC)to113ºF(45ºC). Thissymbolmeanstheproductmustnotbediscardedashouseholdwaste,andshould bedeliveredtoanappropriatecollectionfacilityforrecycling.Properdisposaland recyclinghelpsprotectnaturalresources,humanhealthandtheenvironment.Formore informationondisposalandrecyclingofthisproduct,contactyourlocalmunicipality, disposalservice,ortheshopwhereyouboughtthisproduct.
  • Page 4 Module serial number: ________________________________________________________________ Remote serial number: ________________________________________________________________ Console serial number: ________________________________________________________________ Purchase date: _______________________________________________________________________ We suggest you keep your receipt with this owner’s guide. Blu-rayDisc™andBlu-ray™aretrademarksoftheBlu-rayDiscAssociation. ManufacturedunderlicensefromDolbyLaboratories.Dolbyandthedouble-Dsymbolare trademarksofDolbyLaboratories. ManufacturedunderlicenseunderU.S.Patent#’s:5,956,674;5,974,380and6,487,535&other worldwidepatentsissued&pending.DTS,theDTSSymbolandDTS+theDTSSymbolare registeredtrademarks&theDTSlogosaretrademarksofDTS,Inc.Productincludessoftware.©2010DTS,Inc. AllRightsReserved. HDMIisatrademarkorregisteredtrademarkofHDMILicensingLLCintheUnitedStatesandothercountries. SoundTouchandthewirelessnotedesignaretrademarksofBoseCorporationintheU.S.andothercountries. Wi-FiisaregisteredmarkoftheWi-FiAlliance. ©2014BoseCorporation.Nopartofthisworkmaybereproduced,modified,distributed,orotherwiseusedwithout priorwrittenpermission. 4 - English...

  • Page 5: Table Of Contents

    Contents Introduction About your CineMate 120 home theater system ............7 ® System Features ......................7 Introducing SoundTouch™ from Bose ..............7 ® Unpacking the system ......................8 Placement guidelines ......................9 Sample system placement ..................9 Setting Up the Acoustimass Module ®...
  • Page 6 Universal source buttons and console connectors ............23 Adjusting the volume ......................24 Function buttons ........................24 Programming a non-Bose remote control ............... 24 Getting System Information from the Display Understanding messages on the display ................ 25 Using the System menu....................25 Error messages ......................

  • Page 7: About Your Cinemate ® 120 Home Theater System

    ™ powerful control. • Simply add additional systems at any time for a multi-room listening experience. • Wide selection of Bose audio systems lets you choose the right solution for any room. English - 7...

  • Page 8: Unpacking The System

    The appropriate power cords for your region are supplied. Note: If part of the system is damaged, do not use it. Contact your authorized Bose dealer or Bose customer service. Refer to the contact sheet in ® the carton. 8 - English...

  • Page 9: Placement Guidelines

    Introduction Placement guidelines To avoid wireless interference, keep other wireless equipment away from the system. Place the system outside of and away from metal cabinets, away from other audio/video components and away from direct heat sources. Acoustimass • Stand the Acoustimass module on its rubber feet along the same wall ®...

  • Page 10: Attaching The Rubber Feet To The Acoustimass Module

    Setting Up the Acoustimass Module ® Attaching the rubber feet to the Acoustimass module Attach the rubber feet to the Acoustimass module to protect your floor. Turn the Acoustimass module upside down onto a soft surface to protect it from being damaged. Attach the rubber feet to the bottom of the Acoustimass module.

  • Page 11: Setting Up The Acoustimass ® Module

    Setting Up the Acoustimass Module ® Connecting the Acoustimass module to power Plug the power cord into the connector on the Acoustimass module. Plug the power cord into an AC (mains) outlet. English - 11...

  • Page 12: Setting Up The Soundbar

    Wall mounting the soundbar You can mount the soundbar on a wall. To purchase the WB-120 Wall Mount Kit, contact your local Bose dealer or visit www.Bose.com CAUTION: Do not use any other hardware to mount the soundbar. 12 - English...

  • Page 13: Setting Up The Console

    Blu-ray Disc player or game system, from your TV. ™ Insert one end of the Bose HDMI cable into the TV connector on the console. ® Insert the other end of the HDMI cable into your TV’s HDMI connector.

  • Page 14: Tvs Without An Hdmi Arc Connector

    If your TV does not have an HDMI ARC connector, you may need to make a secondary connection to the console with an optical, coaxial or analog stereo audio cable. Without this secondary connection, you may not hear audio from the Bose system. ®...

  • Page 15: Connecting To Non-Hdmi Compatible Sources

    Setting Up the Console Connecting to non-HDMI compatible sources If your source is non-HDMI compatible, connect it to your TV using audio and video cables (available separately). Refer to your TV owner’s guide for more information. Tip: If your source has IN and OUT audio connector panels, use audio OUT. Audio-only sources If your audio-only device, such as a media or CD player, is non-HDMI compatible, connect it to the console’s optical, coaxial or analog connector.

  • Page 16: Starting Up The System

    Starting Up the System Installing the remote control’s batteries Slide open the battery compartment cover on the back of the remote control. Insert the two provided AA (IEC-LR6) 1.5V batteries. Match the + and – symbols on the batteries with the + and – markings inside the compartment. Slide the battery compartment cover back into place.

  • Page 17: Finishing Setup

    Finishing Setup Checking for sound Power on your TV. If you are using a cable/satellite box or other secondary source, power on this source. Tip: If your secondary source is connected to your TV, select the appropriate TV input. You may need to use a different remote. Power on the system.

  • Page 18: Running The Adaptiq ® Audio Calibration

    Finishing Setup Running the ADAPTiQ audio calibration ® The ADAPTiQ audio calibration customizes the sound of the system to the acoustics of your listening area by taking five audio measurements. To perform an audio calibration, you need 10 minutes when the room is quiet. Put the ADAPTiQ headset on your head.

  • Page 19: Using The System

    System menu. Toggles between SoundTouch ™ (available separately) connector Source selection Powers on/off the Selects a source Bose system ® connected to your TV Powers on/off a selected source Navigation pad Lists recorded Displays the Internet...

  • Page 20: Programming The Universal Remote Control

    Using the System Programming the universal remote control You can use the remote to control your TV, cable/satellite box, DVD or Blu-ray Disc player, game system, DVR or other auxiliary source. ™ Consumer Electronics Control The system supports Consumer Electronics Control (CEC). CEC allows you to control multiple HDMI-connected sources without programming the remote.

  • Page 21: Test Your Sources For Cec

    Test your sources for CEC Test each of your sources for CEC using the remote control. Note: Your HDMI-connected source may not support CEC. Refer to your source owner’s guide for more information. Power off the Bose system. ® Prepare your source: •...

  • Page 22: Program The Remote To Control Your Source

    Using the System Program the remote to control your source If your source does not support CEC, you can program the remote to control your source. Power on your source. Locate the code for your source’s brand in the Universal Remote Device Codes book (provided).

  • Page 23: Source Selection

    Using the System Source selection You can switch between sources by pressing the appropriate source button on the remote control. Before you begin, program the remote to control your source (see page 22). Select a source connected to the system If your source is connected to the console and does not use CEC, follow this procedure to set the console to the appropriate mode and turn on the source.

  • Page 24: Adjusting The Volume

    Programming a non-Bose remote control You can program a non-Bose remote control, such as your cable/satellite box remote, to control the system. Refer to your non-Bose remote control owner’s guide or cable/satellite website for instructions.

  • Page 25: Getting System Information From The Display

    Getting System Information from the Display Understanding messages on the display The display on the front of the console allows you to access the System menu and shows system information and icons. Using the System menu Use the System menu to adjust audio levels, turn on/off features (such as AUTO OFF), change the language, set the coaxial, analog and optical inputs for a particular source, run ADAPTiQ , pair your Acoustimass...
  • Page 26 Getting System Information from the Display Display System state 9 SURROUND LEVEL NOT AVAILABLE. Changes the language on the console and ADAPTiQ ® 10 LANGUAGE 11 SET OPTICAL INPUT Sets the optical connector to Auto/TV (Default), CBL SAT, BD DVD, GAME or AUX source. 12 SET COAXIAL INPUT Sets the coaxial connector to Auto/TV (Default), CBL SAT, BD DVD, GAME or AUX source.

  • Page 27: Error Messages

    SIDE AUX The source is not connected to the connector on Nothing connected the console. ERROR Call Bose customer service. Refer to the contact ® Call Bose sheet in the carton. Acoustimass module status indicator ®...

  • Page 28: Care And Maintenance

    Care and Maintenance Troubleshooting Problem What to do No power • Secure the Acoustimass module’s and console’s power cords. ® • Reconnect the Acoustimass module’s and console’s power cords firmly into an AC (mains) outlet. • Use the remote control to power on the system. •...

  • Page 29: If Your Console Cannot Find The Acoustimass ® Module

    Care and Maintenance Problem What to do Poor or • Remove all protective films from the system. distorted • Secure all cable connections on the soundbar, TV, and connected sources. sound • If you see the error message Cannot find Acoustimass: - Plug in the Acoustimass module.

  • Page 30: Factory Reset The System

    Care and Maintenance Factory reset the system To troubleshoot problems, reset the System menu and ADAPTiQ to the ® factory settings. Press on the remote control. Press until 16 FACTORY RESET appears on the display. Press 5. The system resets. Run the ADAPTiQ audio calibration (see page 18).

  • Page 31: Cleaning

    Failure to register will not affect your limited warranty rights. The warranty information provided with this product does not apply in Australia and New Zealand. See our website at www.bose.com.au/warranty or www.bose.con.nz/warranty for details of the Australia and New Zealand warranty. Technical information Acoustimass module ®...
  • Page 32 ©2014 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM715109 Rev. 00...
