CineMate
520
®
home theater system
Owner's Guide |
|
|
|
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CineMate 520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bose CineMate 520

Summary of Contents for Bose CineMate 520

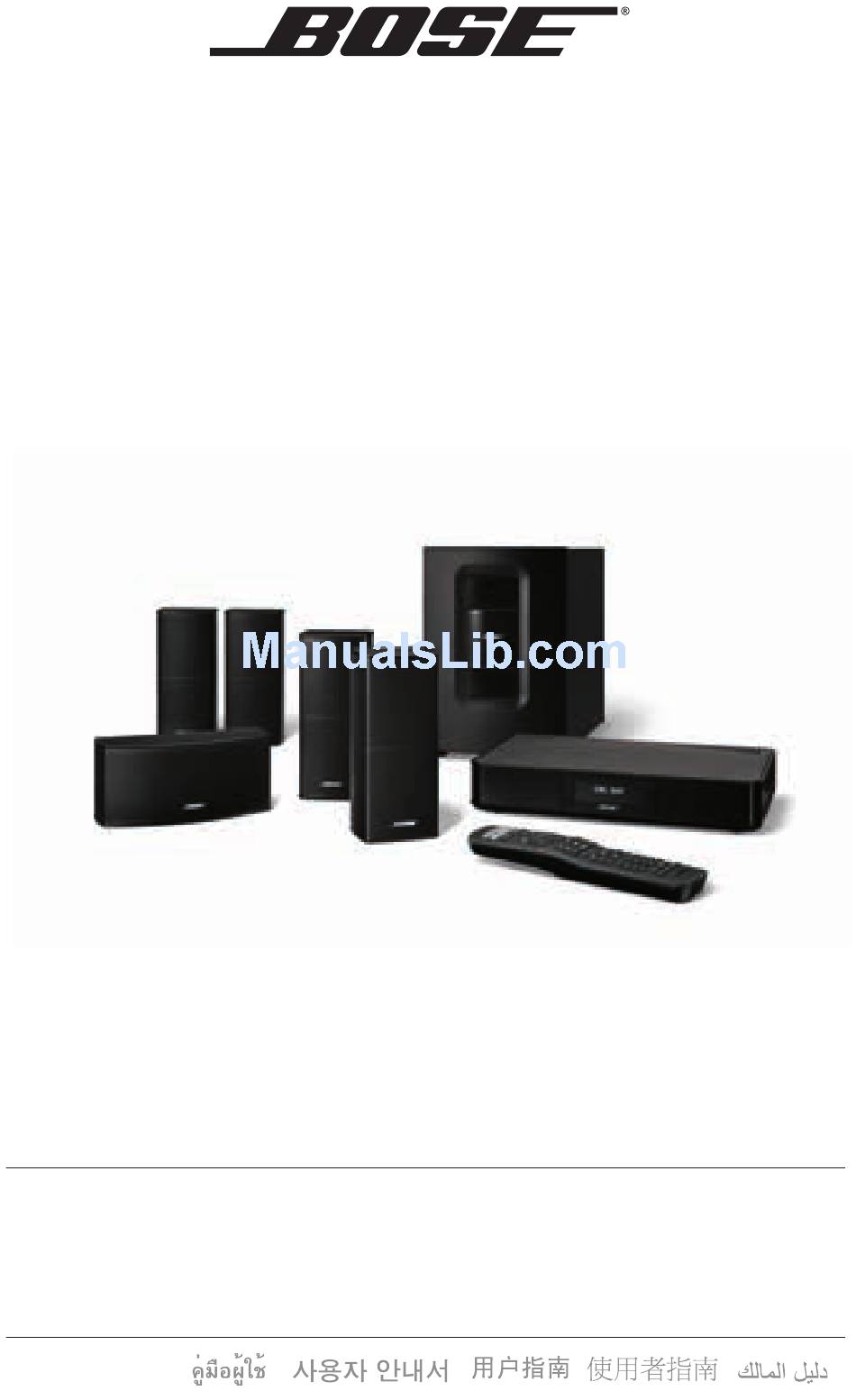

  • Page 1 CineMate ® home theater system Owner’s Guide |...

  • Page 2: Important Safety Information

    •  D onotmakeunauthorizedalterationstotheproduct;doingsomaycompromisesafety,regulatory  c ompliance,systemperformance,andmayvoidthewarranty. •  L ong-termexposuretoloudmusicmaycausehearingdamage.Itisbesttoavoidextremevolumewhen usingheadphones,especiallyforextendedperiods. WARNING: Containssmallpartswhichmaybeachokinghazard.Notsuitableforchildrenunderage3. WARNING: Thisproductcontainsmagneticmaterial.Contactyourphysicianifyouhavequestionsonwhetherthis mightaffecttheoperationofyourimplantablemedicaldevice. NOTES: • Theproductlabelislocatedonthebottomoftheconsole. •  W herethemainsplugorappliancecouplerisusedasthedisconnectdevice,suchdisconnectdeviceshallremain readilyoperable. •  T hisproductmustbeusedindoors.Itisneitherdesignednortestedforuseoutdoors,inrecreationalvehicles,or onboats. •  T hespeakerwireandinterconnectcablesincludedwiththesystemarenotapprovedforin-wallinstallation. Pleasecheckyourlocalbuildingcodesforthecorrecttypeofwireandcablerequiredforin-wallinstallation.  B oseCorporationherebydeclaresthatthisproductisincompliancewiththeessentialrequirements andotherrelevantprovisionsofDirective1999/5/ECandallotherapplicableEUdirective requirements.Thecompletedeclarationofconformitycanbefoundat:www.Bose.com/compliance 2 - English...

  • Page 3: Important Safety Instructions

    11. Unplugthisapparatusduringlightningstormsorwhenunusedforlongperiodsoftime. 12. Referallservicingtoqualifiedservicepersonnel. S ervicingisrequiredwhentheapparatushasbeendamagedinanyway: suchaspowersupplyorcordisdamaged;liquidhasbeenspilledorobjectshavefallenintotheapparatus;theapparatus hasbeenexposedtorainormoisture,doesnotoperatenormally,orhasbeendropped. Note:  T hisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart 15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However, thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon, theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: • Reorientorrelocatethereceivingantenna. • Increasetheseparationbetweentheequipmentandreceiver. • Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. • Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ChangesormodificationsnotexpresslyapprovedbyBoseCorporationcouldvoidtheuser’sauthoritytooperate thisequipment. Thisdevicecomplieswithpart15oftheFCCRulesandIndustryCanadalicense-exemptRSSstandard(s). Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. ThisClassBdigitalapparatuscomplieswithCanadianICES-003. CANICES-3(B)/NMB-3(B) ThisdevicecomplieswithFCCandIndustryCanadaRFradiationexposurelimitssetforthforgeneralpopulation. Itmustnotbeco-locatedorbeoperatinginconjunctionwithanyotherantennasortransmitters. Thetemperaturerangeofthisproductis32ºF(0ºC)to113ºF(45ºC). Thissymbolmeanstheproductmustnotbediscardedashouseholdwaste,andshould bedeliveredtoanappropriatecollectionfacilityforrecycling.Properdisposaland recyclinghelpsprotectnaturalresources,humanhealthandtheenvironment.Formore informationondisposalandrecyclingofthisproduct,contactyourlocalmunicipality, disposalservice,ortheshopwhereyouboughtthisproduct.
  • Page 4 Remote serial number: ________________________________________________________________ Console serial number: ________________________________________________________________ Purchase date: _______________________________________________________________________ We suggest you keep your receipt with this owner’s guide. Blu-rayDisc andBlu-ray aretrademarksoftheBlu-rayDiscAssociation. ™ ™ HDMIisatrademarkorregisteredtrademarkofHDMILicensingLLCintheUnitedStatesandothercountries. ManufacturedunderlicensefromDolbyLaboratories.Dolbyandthedouble-Dsymbolare trademarksofDolbyLaboratories. ManufacturedunderlicenseunderU.S.Patent#’s:5,956,674;5,974,380and6,487,535&other worldwidepatentsissued&pending.DTS,theDTSSymbolandDTS+theDTSSymbolare registeredtrademarks&theDTSlogosaretrademarksofDTS,Inc.Productincludessoftware.©2010DTS,Inc. AllRightsReserved. SoundTouchandthewirelessnotedesignaretrademarksofBoseCorporationintheU.S.andothercountries. Wi-FiisaregisteredmarkoftheWi-FiAlliance. ©2014BoseCorporation.Nopartofthisworkmaybereproduced,modified,distributed,orotherwiseusedwithout priorwrittenpermission. 4 - English...

  • Page 5: Table Of Contents

    Contents Introduction About your CineMate 520 home theater system ............7 ® System Features ......................7 Introducing SoundTouch™ from Bose ..............7 ® Unpacking the system ......................8 Placement guidelines ......................9 Sample system placement ..................9 Setting Up the Acoustimass Module ®...
  • Page 6 Test your HDMI-connected sources for CEC ............22 Program the remote to control your source ............23 Source selection ........................24 Select a source connected to the Bose system ............ 24 ® Select a source connected to your TV ..............24 Universal source buttons and console connectors ............

  • Page 7: About Your Cinemate ® 520 Home Theater System

    ™ powerful control. • Simply add additional systems at any time for a multi-room listening experience. • Wide selection of Bose audio systems lets you choose the right solution for any room. English - 7...

  • Page 8: Unpacking The System

    The appropriate power cords for your region are supplied. Note: If part of the system is damaged, do not use it. Contact your authorized Bose dealer or Bose customer service. Refer to the contact sheet in ® the carton. 8 - English...

  • Page 9: Placement Guidelines

    Introduction Placement guidelines To avoid wireless interference, keep other wireless equipment away from the system. Place the system outside of and away from metal cabinets, away from other audio/video components and away from direct heat sources. Acoustimass • Stand the Acoustimass module on its rubber feet along the same wall ®...

  • Page 10: Setting Up The Acoustimass

    Setting Up the Acoustimass Module ® Attaching the rubber feet to the Acoustimass module Attach the rubber feet to the Acoustimass module to protect your floor. Turn the Acoustimass module upside down onto a soft surface to protect it from being damaged. Attach the rubber feet to the bottom of the Acoustimass module.

  • Page 11: Connecting The Acoustimass Module To Power

    Setting Up the Acoustimass Module ® Connecting the Acoustimass module to power Plug the power cord into the connector on the Acoustimass module. Plug the power cord into an AC (mains) outlet. English - 11...

  • Page 12: Setting Up The Speakers

    Setting Up the Speakers Connecting the front speakers Insert the front speaker cable’s L plug into the left speaker. Insert the front speaker cable’s C plug into the center speaker. Insert the front speaker cable’s R plug into the right speaker. Insert the other end of the front speaker cable into the 6-pin Speaker Connections connector on the console.

  • Page 13: Connecting The Rear Speakers

    Wall mounting the speakers You can mount the speakers on wall brackets, floor stands or table stands. To purchase these accessories, contact your local Bose dealer or visit www.Bose.com CAUTION: Do not use any other hardware to mount the speakers.

  • Page 14: Setting Up The Console

    TV. ™ HDMI cable into the TV connector on the console. Insert one end of the Bose ® Insert the other end of the HDMI cable into your TV’s HDMI connector. Note: Use your TV’s HDMI connector labeled ARC or Audio Return Channel if available.

  • Page 15: Tvs Without An Hdmi Arc Connector

    If your TV does not have an HDMI ARC connector, you may need to make a secondary connection to the console with an optical, coaxial or analog stereo audio cable. Without this secondary connection, you may not hear audio from the Bose system. ®...

  • Page 16: Connecting To Non-Hdmi Compatible Sources

    Setting up the Console Connecting to non-HDMI compatible sources If your source is non-HDMI compatible, connect it to your TV using audio and video cables (available separately). Refer to your TV owner’s guide for more information. Tip: If your source has IN and OUT audio connector panels, use audio OUT. Audio-only sources If your audio-only source, such as a media or CD player, is non-HDMI compatible, connect it to the console’s optical, coaxial or analog connector.

  • Page 17: Starting Up The System

    Starting Up the System Installing the remote control’s batteries Slide open the battery compartment cover on the back of the remote control. Insert the two provided AA (IEC-LR6) 1.5V batteries. Match the + and – symbols on the batteries with the + and – markings inside the compartment. Slide the battery compartment cover back into place.

  • Page 18: Finishing Setup

    Check if sound is coming from the Bose speakers. ® Note: If you do not hear sound from the Bose speakers, see “Troubleshooting” on page 29. Press on the remote control. Check that no sound is coming from the TV speakers.

  • Page 19: Running The Adaptiq ® Audio Calibration

    Finishing Setup Running the ADAPTiQ audio calibration ® The ADAPTiQ audio calibration customizes the sound of the system to the acoustics of your listening area by taking five audio measurements. To perform an audio calibration, you need 10 minutes when the room is quiet. Put the ADAPTiQ headset on your head.

  • Page 20: Using The System

    System menu. Toggles between SoundTouch ™ (available separately) connector Source selection Powers on/off the Selects a source Bose system ® connected to your TV Powers on/off a selected source Navigation pad Lists recorded Displays the Internet...

  • Page 21: Programming The Universal Remote Control

    Using the System Programming the universal remote control You can use the remote to control your TV, cable/satellite box, DVD or Blu-ray Disc player, game system, DVR or other auxiliary source. ™ Consumer Electronics Control The system supports Consumer Electronics Control (CEC). CEC allows you to control multiple HDMI-connected sources without programming the remote.

  • Page 22: Test Your Hdmi-Connected Sources For Cec

    Test your HDMI-connected sources for CEC Test each of your sources for CEC using the remote control. Note: Your HDMI-connected source may not support CEC. Refer to your source owner’s guide for more information. Power off the Bose system. ® Prepare your source: •...

  • Page 23: Program The Remote To Control Your Source

    Using the System Program the remote to control your source If your source does not support CEC, you can program the remote to control your source. Power on your source. Locate the code for your source’s brand in the Universal Remote Device Codes book (provided).

  • Page 24: Source Selection

    You can switch between sources by pressing the appropriate source button on the remote control. Before you begin, program the remote to control your source (see page 23). Select a source connected to the Bose system ® If your source is connected to the console and does not use CEC, follow this procedure to set the console to the appropriate mode and turn on the source.

  • Page 25: Adjusting The Volume

    Programming a non-Bose remote control You can program a non-Bose remote control, such as your cable/satellite box remote, to control the system. Refer to your non-Bose remote control owner’s guide or cable/satellite website for instructions.

  • Page 26: Getting System Information From The Display

    Getting System Information from the Display Understanding messages on the display The display on the front of the console allows you to access the System menu and shows system information and icons. Using the System menu Use the System menu to adjust audio levels, turn on/off features (such as AUTO OFF), change the language, set the coaxial, analog and optical inputs for a particular source, run ADAPTiQ , pair your Acoustimass...
  • Page 27 Getting System Information from the Display Display System state 9 SURROUND LEVEL Adjusts the volume of the rear speakers relative to front speakers. Changes the language on the console and ADAPTiQ ® 10 LANGUAGE 11 SET OPTICAL INPUT Sets the optical connector to Auto/TV (Default), CBL SAT, BD DVD, GAME or AUX source.

  • Page 28: Error Messages

    SIDE AUX The source is not connected to the connector on Nothing connected the console. ERROR Call Bose customer service. Refer to the contact ® Call Bose sheet in the carton. Acoustimass module status indicator The status indicator on the back of the Acoustimass module provides information on system activity.

  • Page 29: Care And Maintenance

    Care and Maintenance Troubleshooting Problem What to do No power • Secure the Acoustimass module’s and console’s power cords. ® • Reconnect the Acoustimass module’s and console’s power cords firmly into an AC (mains) outlet. • Use the remote control to power on the system. •...

  • Page 30: If Your Console Cannot Find The Acoustimass ® Module

    Care and Maintenance Problem What to do Poor or • Remove all protective films from the system. distorted • Secure all cable connections on the speakers, TV, and connected sources. sound • If you see the error message Cannot find Acoustimass: - Plug in the Acoustimass module.

  • Page 31: Factory Reset The System

    Care and Maintenance Factory reset the system To troubleshoot problems, reset the System menu and ADAPTiQ to the ® factory settings. Press on the remote control. Press until 16 FACTORY RESET appears on the display. Press 5. The system resets. Run the ADAPTiQ audio calibration (see page 19).

  • Page 32: Cleaning

    Failure to register will not affect your limited warranty rights. The warranty information provided with this product does not apply in Australia and New Zealand. See our website at www.bose.com.au/warranty or www.bose.con.nz/warranty for details of the Australia and New Zealand warranty. Technical information Acoustimass module ®...
  • Page 33 Care and Maintenance English - 33...
  • Page 34 ©2014 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM715115 Rev. 00...
