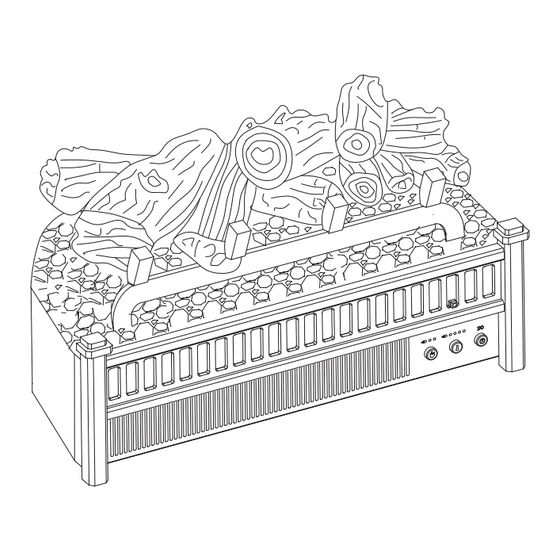

- Page 1 Termofol TF-EF-1400 Electric fireplace insert Installation and user manual Uwaga: Przed rozpoczęciem instalacji przeczytaj instrukcję! Note: Please read the instructions before starting the installation!
-
Page 2: Symbols Description
Before commencing any installation work, carefully read the installation and operating instructions and keep them for future reference. Adherence to the guidelines contained in the user manual and compliance with the rules contained therein will ensure safe operation of the device. SYMBOLS DESCRIPTION The product complies with European directives WARNING: To avoid overheating, do not cover the fireplace. -
Page 3: Safety Information
Safety information Please read the entire manual before installing and operating the product. If you have any questions about the product, please call our customer service at: +48 12 376 86 00 from 8:00 to 17:00, Monday to Friday. 1. This device may become hot during operation. To avoid burns, do not touch hot surfa- ces. - Page 4 DO NOT USE THIS DEVICE IF ANY PART OF IT HAS COME INTO CONTACT WITH WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT THE DEVICE AND REPLACE ANY PART OF THE ELECTRICAL SYSTEM THAT HAS COME INTO CONTACT WITH WATER. Remote The remote control requires 1 lithium battery (size CR2025), which is included with the device.
- Page 5 SPECIFICATION TENSION 230 V AC FREQUENCY 50Hz MAXIMUM REINFORCEMENT HEATER POWER 1350W Part Description Quantity GH P Fireplace insert Infrared remote control A fireplace insert with a heater can be installed in several ways: • In place of an existing fireplace •...
- Page 6 MINIMUM CASE SIZE The device can be operated in two ways: • Using the control panel buttons located in the lower right corner of the device housing. • By using the multifunctional remote control. The appliance has separate flame effect and heating controls. This allows you to operate the device in two different modes: •...
- Page 7 3. Flame Control Button: This button controls the brightness of the flame effect at High, Medium and Low settings. When the appliance is turned on for the first time, the flame effect will turn on at the highest setting. The device remembers the last used flame brightness setting and the next time it is started, the flame brightness will be maintained unless the power to the device has been interrupted.
-
Page 8: Operation Of The Fireplace
Battery replacement procedure: (CR2025) The plastic tab inside the remote control next to the battery MUST be removed for the remote control to work. Instrucciones de reemplazo de la batería (Pull tab) CR2025 1. Open 2. Press 3. Pull out Operation of the fireplace Before performing ANY maintenance: 1. -
Page 9: Circuit Diagram
Circuit diagram Heating indicator Flame indicator printed circuit board temperature sensor 230V Glow LED Flame LED Disconnect power before servicing. ANY CHANGES TO THE ELECTRICAL WIRING OF THIS APPLIAN- CE MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN. WI- RING MUST BE DONE IN ACCORDANCE WITH LOCAL REGULA- TIONS. - Page 10 Corrective action Problem Possible cause solution 1. Make sure that the device is 1. The device is not connect- connected to a standard 230V socket. The device does not work; 2. The circuit breaker has 2. Check additional devices in the ON/OFF indicator light on the tripped or the fuse has blown.
-
Page 11: Warranty Card
WARRANTY CARD PLACE OF INSTALLATION FITTER’S DETAILS Name of company Forename and surname Address (street, no.) Postal Locality code Tel. Date Fitter’s signature Fitter’s stamp www.termofol.com biuro@termofol.pl +48 (12) 376 86 00 Place for the nameplate...
