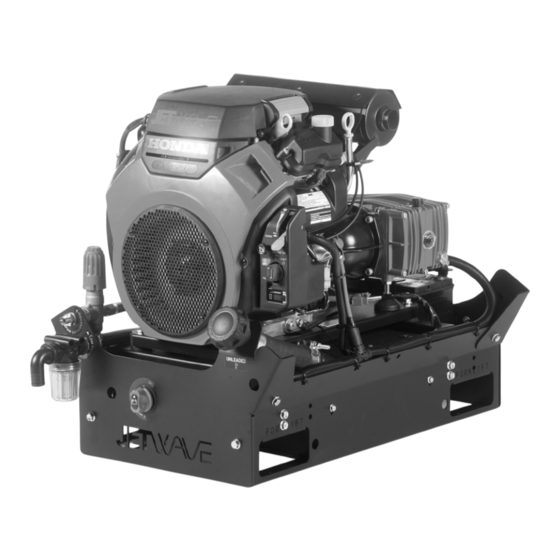

PMG G2 MANUAL - HIGH PRESSURE CLEANER
HIGH PRESSURE WATER CLEANER
Cold Water
Record Serial Number below and retain product serial number which is
located on nameplate.
UNIT SERIAL NO.
ENGINE SERIAL NO.
PURCHASE DATE
Petrol Driven
ENGLISH
VERSION
V3.0 - 2023
Advertisement
Table of Contents
Related Manuals for Jetwave PMG G2
Summary of Contents for Jetwave PMG G2
- Page 1 PMG G2 MANUAL - HIGH PRESSURE CLEANER ENGLISH VERSION WARNING! Read this Operator’s Manual carefully before using this machine. Failure understand and follow the contents of this manual may result in electrical shock, fire and/or serious personal injury. READ CAREFULLY...
- Page 2 PMG G2 MANUAL - HIGH PRESSURE CLEANER...
- Page 3 PMG G2 MANUAL - HIGH PRESSURE CLEANER PMG G2 (Honda) Honda Engine 2. Unloader Valve 3. High Pressure Outlet (connection to hose coupling) 4. Low Pressure Inlet (for tap connection) 5. Pressure Gauge 6. Emergency Stop (Optional) 7. Battery Isolator 8.
- Page 4 PMG G2 MANUAL - HIGH PRESSURE CLEANER...
- Page 5 PMG G2 MANUAL - HIGH PRESSURE CLEANER PMG G2 (JX 750) Honda Engine 2. Unloader Valve 3. High Pressure Outlet (connection to hose coupling) 4. Low Pressure Inlet (for tap connection) 5. Pressure Gauge 6. Emergency Stop (Optional) 7. Battery Isolator 8.
-
Page 6: Table Of Contents
PMG G2 MANUAL - HIGH PRESSURE CLEANER Table of Contents Safety Symbols General Safety Rules Work Area Safety Personal Safety Pressure Cleaner Use & Care Service High Pressure Cleaning Safety Description, Specifications And Standard Equipment Description Specifications Standard Equipment Machine Assembly & Operation... -
Page 7: Safety Symbols
PMG G2 MANUAL - HIGH PRESSURE CLEANER Safety Symbols In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols. -
Page 8: General Safety Rules
PMG G2 MANUAL - HIGH PRESSURE CLEANER Service General Safety Rules • Pressure cleaner service must be performed only by qualified repair personnel. Service or maintenance WARNING performed by unqualified personnel could result in a risk of injury. Read and understand all instructions. Failure to follow •... -
Page 9: Description, Specifications And Standard Equipment
• Hot surfaces can cause burns and fire. Keep body parts and flammable material away from hot surfaces. Figure.2 - PMG G2 JX Cold Water Petrol High Pressure Cleaner • Read and understand this manual, the engine manual and the warnings and instructions for all equipment and material being used with this tool before operating. -
Page 10: Machine Assembly & Operation
PMG G2 MANUAL - HIGH PRESSURE CLEANER The machine serial number is located on the frame. The first letter & digits indicate the year and month of the Make sure that the battery isolator and engine switch is manufacture. (G = 2021 (Year), 4 = April (Month)). -
Page 11: Machine And Work Area Set-Up
6. Take the unit to the well-ventilated outdoor work area along the clear path. See Transportation Section. Be aware of possible slip hazards. Wear appropriate footwear to help prevent slips. Figure.7 - PMG G2 High Pressure Outlet & Low Pressure Inlet Location... -
Page 12: Water Supply
PMG G2 MANUAL - HIGH PRESSURE CLEANER Water Supply Operating Instructions WARNING: This high pressure cleaner is only allowed CAUTION to be connected with the drinking water mains, when an appropriate backflow preventer has been installed, as per AS/NZS 60335.2.79. Follow all local standards and regulations applicable to water connection. -
Page 13: Machine Shut Down
PMG G2 MANUAL - HIGH PRESSURE CLEANER Attach your water supply hose to the low pressure 10. (iGX Engines Only): the Honda iGX700/800 is an water inlet port on the front of the machine. Confirm EFI auto throttle engine with auto choke. Engine will that the water supply is turned on. -
Page 14: Transportation And Storage
PMG G2 MANUAL - HIGH PRESSURE CLEANER Transportation and Storage Battery Turn off the fuel valve and the battery isolation switch. Safety notes regarding the battery Please observe the following warning notes when handling Drain water from unit as needed. -
Page 15: Pump Lubrication/Maintenance
At 1000 hours of use (less in severe use conditions) the Note: Before removing the battery, make sure the negative PMG G2 should be taken to a Jetwave Independent pole lead is disconnected. Check that the battery pole and Service Center for pump seal and valve service. -
Page 16: Service And Repair
Product: High pressure cleaner authorized Jetwave service technician. Trade Name: PMG G2 High Pressure Cleaner should be taken to a Jetwave Relevant EU Directives Independent Service Center or returned to the factory. 2006/42/EC For information on your nearest Jetwave Independent... - Page 17 PMG G2 MANUAL - HIGH PRESSURE CLEANER Type PMG G2 280-21 PMG G2FI 280-21 PMG G2 280-26 PMG G2FI 280-26 Code PM4000-21PEG2 PM4000-21PEG2FI PM4000-26PEG2 PM4000-26PEG2FI Motor Petrol Engine GX690, 2 cylinder, iGX700, 2 cylinder, GX690, 2 cylinder, iGX700, 2 cylinder,...
- Page 18 PMG G2 MANUAL - HIGH PRESSURE CLEANER Type PMG G2FI 280-31 PMG G2 350-23 PMG G2FI 350-23 Code PM4000-31PEG2FI PM5000-23PEG2 PM5000-23PEG2FI Motor Petrol Engine iGX800, 2 cylinder, GX690, 2 cylinder, 4-stroke iGX700, 2 cylinder, 4-stroke 4-stroke OHV Maximum torque at 3600rpm kW/HP 18.6 / 24.9...
- Page 19 PMG G2 MANUAL - HIGH PRESSURE CLEANER Type PMG G2JX 280-21 PMG G2JX 280-26 PMG G2JX 350-23 Code PM4000-21PEG2JX PM4000-26PEG2JX PM5000-23PEG2JX Motor Petrol Engine JX750, 2 cylinder, JX750, 2 cylinder, JX750, 2 cylinder, 4-stroke OHV 4-stroke OHV 4-stroke OHV Maximum torque at 3600rpm kW/HP 17.89 / 24...
- Page 20 PMG G2 MANUAL - HIGH PRESSURE CLEANER Honda™ Petrol V-Twin GX630 & GX690 Engine Maintenance Schedule Based on the ‘Maintenance Schedule’ in the Honda™ Engine Manual, always refer to the included manual for more in depth safety, maintenance and operation procedures of the engine.
- Page 21 PMG G2 MANUAL - HIGH PRESSURE CLEANER Honda™ Petrol V-Twin EFI iGX700 & iGX800 Engine Maintenance Schedule Based on the ‘Maintenance Schedule’ in the Honda™ Engine Manual, always refer to the included manual for more in depth safety, maintenance and operation procedures of the engine.
- Page 22 Always refer to the included manual for more in depth safety, maintenance and operation procedures of the engine. Always use an approved Jetwave™ servicing agent who uses Genuine parts in order to ensure full 3 year warranty. Service records will need to be provided.
- Page 23 Refer to the included manual for your high pressure cleaner or water jetting system for safety, pre- inspection, operation, shutdown and more procedures. Always use an approved Jetwave™ servicing agent who uses Genuine Jetwave parts, to ensure full warranty coverage, service records will need to be provided.
-
Page 24: Troubleshooting
PMG G2 MANUAL - HIGH PRESSURE CLEANER Trouble Shooting FAULT CAUSE SOLUTION Pump runs normally Pump is sucking air. Check that all hoses and fittings are airtight. but pressure does not Valves are worn or dirty. Check, clean or replace. -
Page 25: Maintenance Log
PMG G2 MANUAL - HIGH PRESSURE CLEANER Time interval for checks and replacement listed above are for units subjected to normal operating conditions. Should the unit be subjected to abnormal conditions (eg heavy use, dirty water, extreme temperatures or conditions etc) times should be reduced accordingly. - Page 26 PMG G2 MANUAL - HIGH PRESSURE CLEANER Notes...
- Page 27 PMG G2 MANUAL - HIGH PRESSURE CLEANER Notes...
- Page 28 10-16 Smith Street, Thebarton, 5031 Adelaide, South Australia, AU +61 8 8371 3599 GROUP info@jetwavegroup.com jetwavegroup.com jetwave-group jetwavegroup jetwave.group jetwavegroup jetwavegroup PMG G2 Manual Copyright © 2023 Jetwave ® Group Pty Ltd. All Rights Reserved.
