WARNING!
Read this Operator's Manual
carefully
before
using
this
machine.
Failure
to
understand and follow the
contents of this manual may
result in electrical shock,
fire and/or serious personal
injury.
READ CAREFULLY
Register Your Product
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER
HIGH PRESSURE WATER CLEANER
Cold Water
Record Serial Number below and retain product serial number which is
located on nameplate.
UNIT SERIAL NO.
ENGINE SERIAL NO.
PURCHASE DATE
Diesel Driven
ENGLISH
VERSION
V3.0 - 2023
Advertisement
Table of Contents
Related Manuals for Jetwave SENATOR G2D
Summary of Contents for Jetwave SENATOR G2D
- Page 1 SENATOR G2D MANUAL - HIGH PRESSURE CLEANER ENGLISH VERSION WARNING! Read this Operator’s Manual carefully before using this machine. Failure understand and follow the contents of this manual may result in electrical shock, fire and/or serious personal injury. READ CAREFULLY...
-
Page 2: Table Of Contents
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Table of Contents Safety Symbols General Safety Rules Work Area Safety Personal Safety Pressure Cleaner Use & Care Service High Pressure Cleaning Safety Description, Specifications And Standard Equipment Description Specifications Standard Equipment Machine Assembly & Operation... -
Page 3: Safety Symbols
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Safety Symbols In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols. -
Page 4: General Safety Rules
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Service General Safety Rules • Pressure cleaner service must be performed only by qualified repair personnel. Service or maintenance WARNING performed by unqualified personnel could result in a risk of injury. Read and understand all instructions. Failure to follow •... -
Page 5: Description, Specifications And Standard Equipment

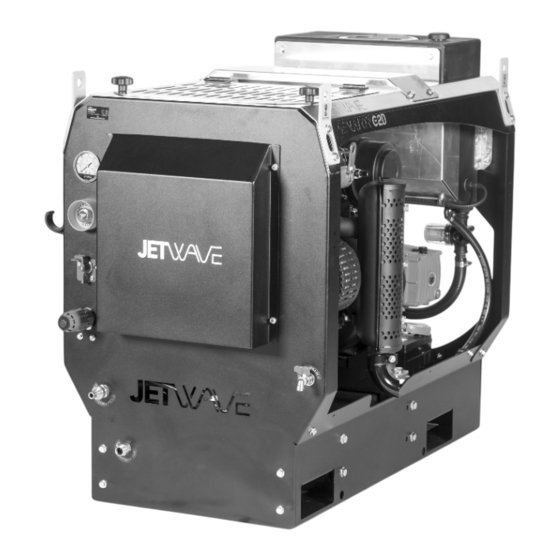

• Read and understand this manual, the engine manual and the warnings and instructions for all equipment Figure.2 - Senator G2D Cold Water Petrol High Pressure Cleaner and material being used with this tool before operating. Standard equipment Failure to follow all warnings and instructions may A Jetwave Senator ™... -
Page 6: Machine Assembly & Operation
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER The machine serial number is located on the frame. The Make sure that the battery isolator and engine switch is first letter & digits indicate the year and month of the in the OFF position. -
Page 7: Machine And Work Area Set-Up
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Machine and Work Area Set-up Inspect the pressure cleaner nozzle orifices for any damage or blockage. Blockages can be cleaned with a nozzle cleaning tool. Use care not to enlarge nozzle WARNING orifices while cleaning. Damaged nozzles or nozzles with enlarged orifices can decrease unit performance and should be replaced. -
Page 8: Water Supply
Turn the battery isolator switch ON (Figure 7) and confirm the Emergency stop button is in the out position (rotate button clockwise). Figure.6 - Senator G2D Onboard Water & Bypass Tank Hose Set-Up Use care when routing hoses. Routing hoses over rough surfaces, sharp edges, crossing hoses, etc. -
Page 9: Pressure Washer Operation
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Attach your water supply hose to the low pressure 10. Use care when using the pressure washer. Holding water inlet port on the front of the machine. Confirm the nozzle too close to a surface can damage it. Test a that the water supply is turned on. -
Page 10: Hose Reel Brakde Adjustment
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Optional Hose Reel - Brake Adjustment Battery The optional hose reel is equipped with an adjustable brake NOTE! to prevent the hose from playing off the reel under its own Connect negative terminal to black negative post, as unit is weight. -
Page 11: Pump Lubrication/Maintenance
At 1000 hours of use (less in severe use conditions) the Reverse procedure to install. Senator G2 should be taken to a Jetwave Independent Note: Before removing the battery, make sure the negative Service Center for pump seal and valve service. -
Page 12: Service And Repair
Any problems not addressed by this section should only be handled by an authorized Jetwave service technician. High Pressure Cleaner should be taken to a Jetwave Independent Service Center or returned to the factory. For information on your nearest Jetwave Independent Service Center or any service or repair questions: •... -
Page 13: Machine Data Points
Refer to the included manual for your high pressure cleaner or water jetting system for safety, pre- inspection, operation, shutdown and more procedures. Always use an approved Jetwave™ servicing agent who uses Genuine Jetwave parts, to ensure full warranty coverage, service records will need to be provided. -
Page 14: Honda Engine Maintenance Schedule
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Kohler™ KDW1003 Diesel Liquid Cooled Engine Maintenance Schedule Based on the Maintenance section in the Kohler™ Engine Manual, always refer to the included manual for more in depth safety, maintenance and operation procedures of the engine. -
Page 15: Maintenance Log
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Time interval for checks and replacement listed above are for units subjected to normal operating conditions. Should the unit be subjected to abnormal conditions (eg heavy use, dirty water, extreme temperatures or conditions etc) times should be reduced accordingly. -
Page 16: High Pressure Cleaner Maintenance Schedule
SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Trouble Shooting FAULT CAUSE SOLUTION Pump runs normally Pump is sucking air. Check that all hoses and fittings are airtight. but pressure does not Valves are worn or dirty. Check, clean or replace. - Page 17 SENATOR G2D MANUAL - HIGH PRESSURE CLEANER Notes...
- Page 18 10-16 Smith Street, Thebarton, 5031 Adelaide, South Australia, AU +61 8 8371 3599 GROUP info@jetwavegroup.com jetwavegroup.com jetwave-group jetwavegroup jetwave.group jetwavegroup jetwavegroup Copyright © 2023 Jetwave ® Group Pty Ltd. All Rights Reserved.
