ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
• All set screws of the fan must be checked and retightened where necessary before installation.
• To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
• Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
• The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product.
• These factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
• TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
• THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
• CETL LISTED FOR DAMP LOCATIONS; FOR USE IN COVERED PORCHES PATIOS
OR SUNROOMS WHERE RAIN OR WATER WILL NOT REACH THE CEILING FAN.

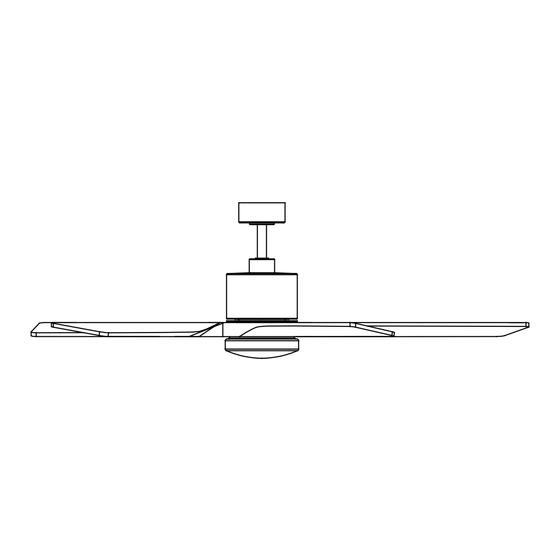

Model No.: F0120
PAGE: 1 / 9
240315
Advertisement
Related Manuals for Vaxcel F0120
Summary of Contents for Vaxcel F0120
- Page 1 ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY* *for full limited lifetime warranty details please see final page of these instructions. Model No.: F0120 Safety Instructions READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO INSTALL THE FAN AND SAVE INSTRUCTIONS.
- Page 2 1.5V X 16 1.5V Unpack your fan and check the contents. You should have the following items. 1.) Hanger Bracket 2.) Canopy 3.) Decorative Cap (Comes in a Separate Bag) 4.) Downrod Set (Includes Hanger Ball, 6" Downrod, Hanger Pin & Lock Pin) 5.) Downrod Stand Cover 6.) Fan Motor Assembly 7.) Fan Blades (5PCS)
- Page 3 Exploded View Detail Hanger Bracket Hanger Ball Canopy Decorative Cap Lock Pin Hanger Pin Downrod Stand Cover Fan Motor Assembly Motor Screws Fan Blade Connect Plate of Light Kit Light Kit with LED Module Glass Shade Dual Mount Drawing Downrod Mount Sloped Ceiling Mount (Up to 23 degrees) PAGE: 3 / 9 240315...
- Page 4 IMPORTANT: BEFORE YOU BEGIN INSTALLATION, CAREFULLY READ ALL INFORMATION PROVIDED IN THE SAFETY INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. SAVE ALL INSTRUCTIONS. NOTE: The fan weight is 15.28lbs (6.93 kgs). Be sure the outlet box you are using is securely attached to the building structure and can support the full weight of the fan.
- Page 5 Connect the white (neutral) wire from motor to the white (neutral) wire from the outlet box with a wire White connector. Connect three ground wires (Green Connect the black (hot) wire or bare copper) coming (This is for fan and light control) Black from outlet box, from motor to the black (hot) wire...
- Page 6 Fig.14 Light Kit with Stud LED Module Slot Attach the glass shade to the light kit with LED module by aligning studs and slots, and Turn ON the electric cicuit at the main fuse or circuit breaker turn it clockwise until it is locked Fig.15 box.
- Page 7 Install Without Remote Control Note：1. Compatible with on/off function wall switch only. 2. The direction of fan rotation can not be set without remote control. 3. The color temperature and brightness of light can not be set without remote control. Turn OFF the electric circuit at the main fuse or circuit breaker box.
-
Page 8: Troubleshooting Guide
Troubleshooting Guide If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235). - Page 9 Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation or replacement costs.
