ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
• All set screws of the fan must be checked and retightened where necessary before installation.
• To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
• Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
• The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product.
• These factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
• TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
• THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
• CETL LISTED FOR DAMP LOCATIONS; FOR USE IN COVERED PORCHES PATIOS
OR SUNROOMS WHERE RAIN OR WATER WILL NOT REACH THE CEILING FAN.
Model No.: F0097 F0111 F0112
PAGE: 1 / 10
230209
Advertisement
Related Manuals for Vaxcel F0097
Summary of Contents for Vaxcel F0097
- Page 1 ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY* *for full limited lifetime warranty details please see final page of these instructions. Model No.: F0097 F0111 F0112 Safety Instructions READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO INSTALL THE FAN AND SAVE INSTRUCTIONS.

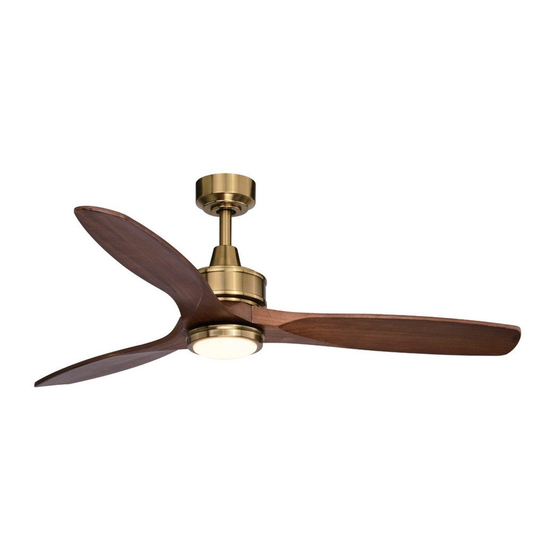

- Page 2 Unpack your fan and check the contents.You should have the following items. 1.) Hanger Bracket 2.) Canopy 3.) Decorative Cap (Remove the Preassembled Decorative Cap from the Canopy Before Installation.) 4.) Downrod Set (Included Hanger Ball, 6" Downrod, Hanger Pin & Lock Pin) 5.) Downrod Stand Cover 6.) Fan Motor Assembly 7.) Fan Blades (3 PCS)
- Page 3 Hanger Bracket Hanger Ball Downrod Canopy Decorative Cap Downrod Stand Cover Hanger Pin Lock Pin Collar Fan Motor Assembly Fan Blade Light Kit with LED Module Glass Shade Downrod Mount Sloped Ceiling Mount (Up to 23 degrees) PAGE: 3 / 10 230209...
- Page 4 IMPORTANT: BEFORE YOU BEGIN INSTALLATION, CAREFULLY READ ALL INFORMATION PROVIDED IN THE SAFETY INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. SAVE ALL INSTRUCTIONS. Wood Member Ceiling Joist (2" x 4" Approx.) Wood Member Ceiling Joist (2" x 4" Approx.) Ceiling Ceiling Washer...
- Page 5 Move ground wires (a), outlet box wires (b), and motor Fig.8 wires (c) away from the center of the hanger bracket as shown. Thread the antenna through the hanger Antenna bracket first, then thread the receiver through the hanger bracket until it is placed in the center. Finally, cut motor wires (c) to length needed for connections.
- Page 6 Hanger Bracket Canopy Screw Canopy Decorative Cap Slide the canopy up to ceiling and over the two canopy screws on hanger bracket. Rotate canopy clockwise, next, while holding the canopy with one hand, slide the decorative cap over the screws and rotate clockwise until tight. Note: Adjust the canopy screws as necessary until the canopy and decorative cap are snug.
- Page 7 Install the battery (9V, included) into the transmitter. * Press "HI" button to turn on the fan at high speed. * Press "MED" button to turn the fan in medium speed. * Press "LOW" button to turn the fan in low speed. * Press "FAN OFF"...
- Page 8 For a single switch Follow these steps: Connect the white (neutral) wire and orange reversible wire from motor to the white (neutral) wire from the outlet White box with a wire connector. Connect three Connect the black (hot) wire ground wires (Green (This is for fan control), blue wire Black or bare copper) coming...
-
Page 9: Troubleshooting Guide
Troubleshooting Guide If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235). - Page 10 Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation or replacement costs.
