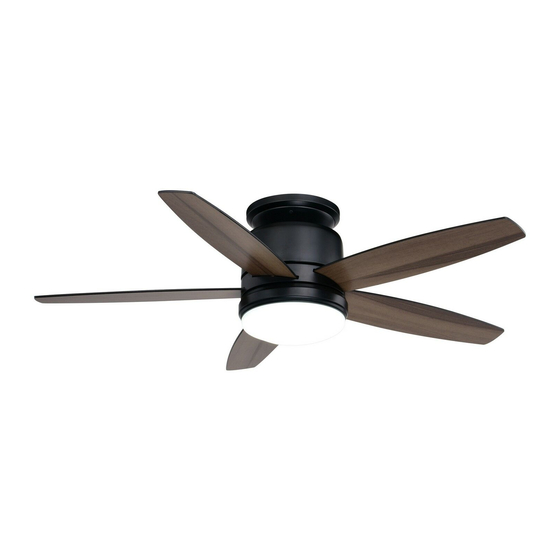

Vaxcel Armon F0118 Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
• All set screws of the fan must be checked and retightened where necessary before installation.
• To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
• Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
• The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product. These
factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
• TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
• THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
Model No.: F0118 F0119
PAGE: 1 / 9
240314

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Armon F0118 and is the answer not in the manual?

Questions and answers

Related Manuals for Vaxcel Armon F0118

Summary of Contents for Vaxcel Armon F0118

  • Page 1 ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY* *for full limited lifetime warranty details please see final page of these instructions. Model No.: F0118 F0119 Safety Instructions READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO INSTALL THE FAN AND SAVE INSTRUCTIONS.

  • Page 2: Package Contents

    Package Contents: X 16 Unpack your fan and check the contents. You should have the following items. 1.) Mounting Plate 2.) Trim Ring 3.) Fan Motor Assembly 4.) Light Kit Pan 5.) Fan Blades (5 PCS) 6.) Glass Shade 7.) LED Module Assembly 8.) Assembly Kit 9.) Installation Instructions 10.) Remote Control Set (Includes &...
  • Page 3 Exploded View Detail Mounting Plate Trim Ring Fan Motor Assembly Fan Blade Light Kit Pan LED Module Assembly Glass Shade PAGE: 3 / 9 240314...

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS IMPORTANT: BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION N THE SEPARATE SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. SAVE ALL INSTRUCTIONS. NOTE: The fan weight is 15.21 lbs (6.9 kg). Be sure the outlet box you are using is securely attached to the building structure and can support the full weight of the fan.
  • Page 5 Connect the black (hot) wire from motor to the black (hot) wire from Connect the white (neutral) wire outlet box with a wire connector. from motor to the white (neutral) wire from the outlet box with a wire connector. Black Black Connect the ground wires (Green or bare copper) coming from outlet box, mounting...
  • Page 6 Remove one screw and loosen another two screws from fan motor assembly Fan Motor Assembly first, then thread the fan motor assembly wires through light kit pan, then push the light kit pan upwards until the fan motor assembly screws insert into the key hole slots of light kit pan, then rotate the light kit pan until it's fixed on the fan motor assembly bottom.
  • Page 7 Note: This remote control has a memory function setting. The fan will operate at the same speed and the fan light will stay at the same brightness-level as the last time the power supply was turned off. Pair the remote (Only if connection is lost): Within the 10 second time frame after the main power is turned on, press and hold FAN OFF button for more than 3 seconds.

  • Page 8: Troubleshooting Guide

    Troubleshooting Guide If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235).
  • Page 9 Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation or replacement costs.

This manual is also suitable for:

Armon f0119
