ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
• All set screws of the fan must be checked and retightened where necessary before installation.
• To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
• Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
• The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product.
• These factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
• TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
• TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
• TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
• THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.

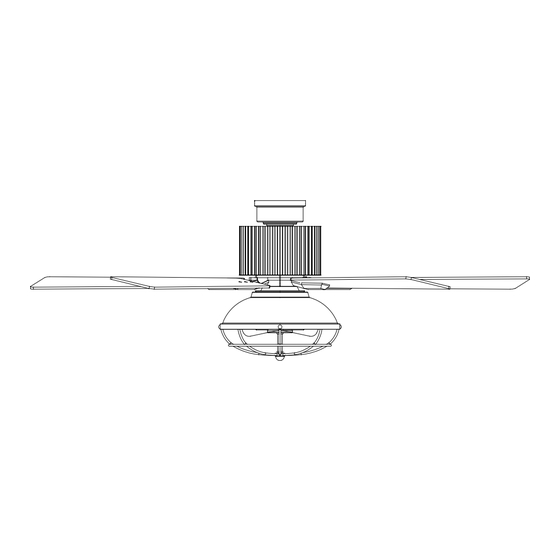

Model No.: F0110
PAGE: 1 / 12
230223
Advertisement
Related Manuals for Vaxcel Elkhart
Summary of Contents for Vaxcel Elkhart
- Page 1 ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY* *for full limited lifetime warranty details please see final page of these instructions. Model No.: F0110 Safety Instructions READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO INSTALL THE FAN AND SAVE INSTRUCTIONS.
-
Page 2: Package Contents
Package Contents: X 16 Unpack your fan and check the contents. You should have the following items. 1.) Hanger Bracket 2.) Canopy 3.) Canopy Cover (Remove the Preassembled Canopy Cover from the Canopy Before Installation.) 4.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin) 5.) Downrod Stand Cover 6.) Fan Motor Assembly 7.) Light Kit... - Page 3 Exploded View Detail Hanger Bracket Hanger Ball Downrod Canopy Canopy Cover Lock Pin Hang Pin Downrod Stand Cover Collar Blade Bracket Fan Motor Assembly Connect Plate of Light Kit Fan Blade Metal Cover of Light Kit Hex Nut Washer Light Kit LED Bulb Metal Cage Hex Nut...
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT: BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION IN THE SAFETY INSTRUCTIONS AND INSTALLATION INSTRUCTIONS. IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. SAVE ALL INSTRUCTIONS. NOTE: The fan weight is 17.55 lbs (7.95 kg). Be sure the outlet box you are using is securely attached to the building structure and can support the full weight of the fan. - Page 5 Fig.8 Fig.9 (For downrod mount only): Hanger Bracket Hang the fan on hanger bracket, and make sure the slot of hanger ball is snapped Collar Screw into the chip of hanger bracket Lock Pin Slot exactly. Hanger Chip Note: For sloped ceiling Ball installation, make sure (For downrod mount only):...
- Page 6 Safety Cable Hook Safety Cable Hang the safety cable into the safety Fig.12 cable hook. (See Fig.12) There are four hanger bracket screws Fig.14 Fig.13 and lock washers. Remove two screws and lock washers from the hanger bracket (one from each side) and loosen Blade Screw Hang the other two remaining screws.
-
Page 7: Light On/Off
Fig.17 Fig.18 Hex Nut Hex Nut Washer Washer Metal Cover of Light Kit Attach the light kit to the metal cover of light kit by threading the light kit wires (black and white) Threaded Pipe and remove threaded pipe through the hole of metal cover of light kit and then secure them Light Kit onto the metal cover of light kit with washer... - Page 8 Note: 1. This remote controller has a memory function setting. The fan will operate at the same speed and the fan light will stay at the same brightness-level as the last time the power supply was turned off. 2. Compatible Wall Switches: Lutron SKU# S2-LFSQH-WH / Hunter SKU# 27183 / Legrand SKU# LSCLDC163PWCCV4. a.
- Page 9 For a single switch Follow these steps: Connect the white (neutral) wire and orange reversible wire from motor to the white (neutral) wire from the outlet White box with a wire connector. Connect three Connect the black (hot) wire ground wires (Green (This is for fan control), blue wire Black or bare copper) coming...
- Page 10 If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235).
- Page 11 PAGE: 11 / 12 230223...
- Page 12 Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation or replacement costs.
