  • Page 1 ■•. • 5,)) cncs=s= support TH Origin /Elite User manual V1 .2 C) '? 8 □ TH Origin TH Elite Smart Temperature and Humidity Monitoring Switch...
  • Page 2: Product Introduction

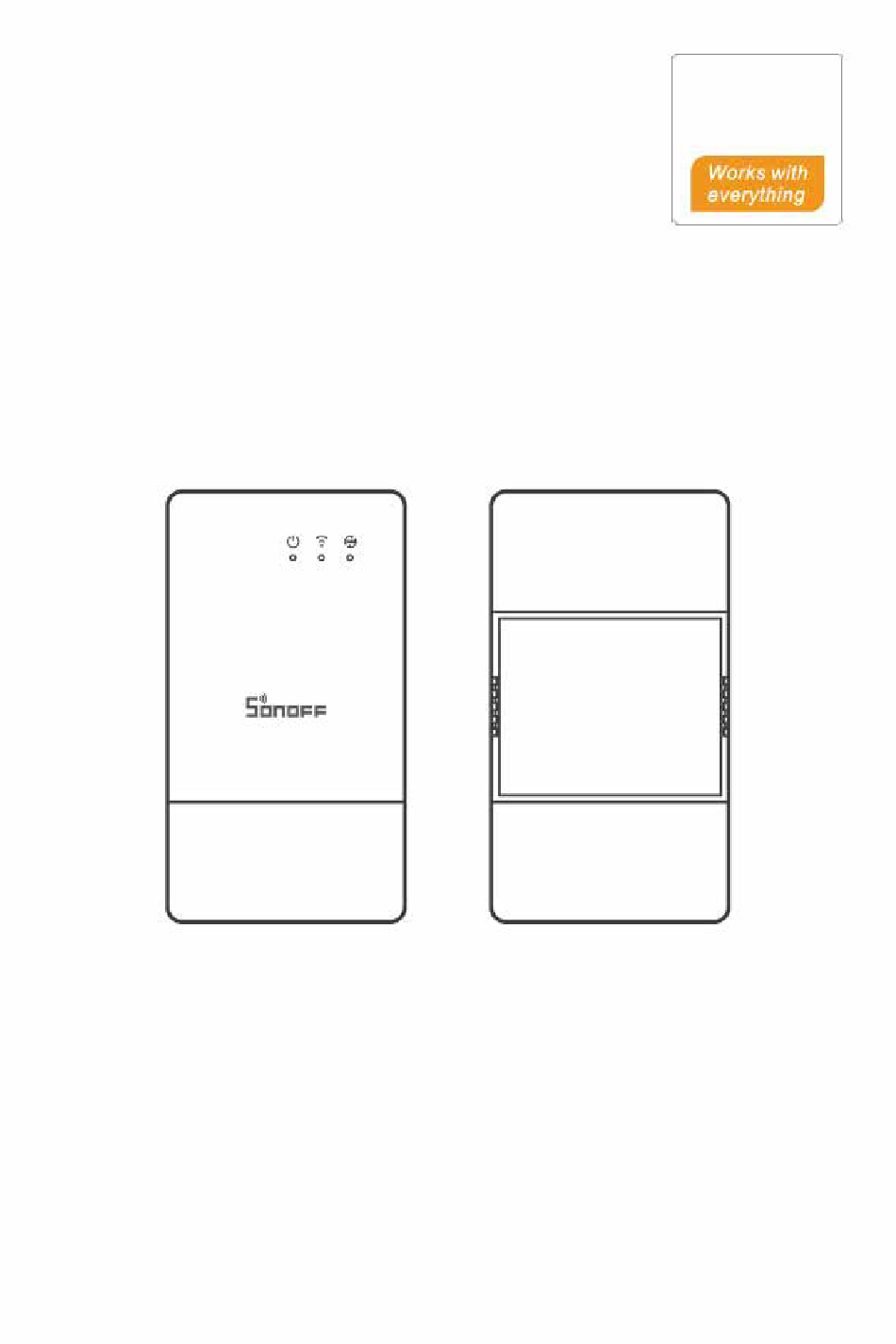

    English Shenzhen Son off Technologies Co., Ltd. Product Introduction TH Origin ------�-+-+-- - On/Off LED indicator (Red) . �-+---+*-- Wi-Fi LED indicator (Blue) Mounting base Protective cover ---- Sensor interface TH Elite -----�-+-+-- - On/Off LED indicator (Red) �-+---+,.._ __ Wi-Fi LED indicator (Blue)
  • Page 3: Device Installation

    Green LED indicator keeps on Auto-mode is on Features TH Origin/Elite is a DIV smart switch with temperature and humidity monitoring, and required to use with the temperature and humidity sensors correspondingly. Automatically control the channel switch by setting the temperature or humidity threshold on the App.
  • Page 4 English Shenzhen Son off Technologies Co., Ltd. 2. Wiring instruction 2-1 Remove protective cover □ • • 2-3 Wiring method of dry contact 9-10mm TH Elite Press the white button on the top of the wire connecting hole to insert the wire corresponding, then release.
  • Page 5 3. Insert the sensor 0 ., . Compatible SONOFF sensors: D518B20, MS01, THS01, AM2301, 517021. Compatible sensor extension cables: RL560. Some old version sensors need to be used with the accompanying adapter.
  • Page 6: Device Pairing

    English Shenzhen Son off Technologies Co., Ltd. Device pairing 1. Download the eWeLinkApp J) I eWelink � GETITON Google Play Android ™ & iOS 2. Power □ <'.l ., e After powering on, the device will enter the Bluetooth Pairing Mode during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.
  • Page 7 English Shenzhen Son off Technologies Co., Ltd. 3. Add device Method 1: Bluetooth Pairing � i '""'::::7 L_____::�-, .. ._,J > -�= ;d Tap "+" and select "Bluetooth Pairing", then operate following the prompt on the App. Method 2: Scan QR code In the Pairing mode , tap "Scan QR code"to add the device by scanning the QR code on its back.
  • Page 8 English Shenzhen Son off Technologies Co., Ltd. Alexa voice control instructions 1. Download the Amazon Alexa App and sign up an account. 14MB Amazon Alexa 2. Add Amazon Echo Speaker on the Alexa App. 3. Account Linking (Link Alexa account on the eWelink App) >...
  • Page 9: Specifications

    English Shenzhen Son off Technologies Co., Ltd. Specifications THR316, THR320, THR316D, THR320D Model THR316, THR316D: 100-240V - 50/60Hz 16A Max Input THR320, THR320D: 100-240V - 50/60Hz 20A Max THR316, THR316D: 100-240V - 50/60Hz 16A Max Output THR320, THR320D: 100-240V- 50/60Hz 20A Max Dry contact output 5-30V.
  • Page 10: Factory Reset

    English Shenzhen Son off Technologies Co., Ltd. Auto mode enable/disable Enable/disable the auto mode by double click the button on the device or enable/disable it on the App directly. Manual control and Auto mode can work at the same time. In the auto mode, you can turn on/off the device manually.
  • Page 11 English Shenzhen Son off Technologies Co., Ltd. The LED indicator flashes twice on repeated means you fail to connect to the server. 1. Make sure the Internet connection is working. You can use your phone or PC to connect to the Internet, and if it fails to access, please check the availability of the Internet connection.
  • Page 12: Fcc Warning

    Shenzhen Son off Technologies Co., Ltd. FCC Warning FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
