Sonoff TX Series User Manual
  1. Manuals
  2. Brands
  3. Sonoff Manuals
  4. Switch
  5. TX Series
  6. User manual

Sonoff TX Series User Manual

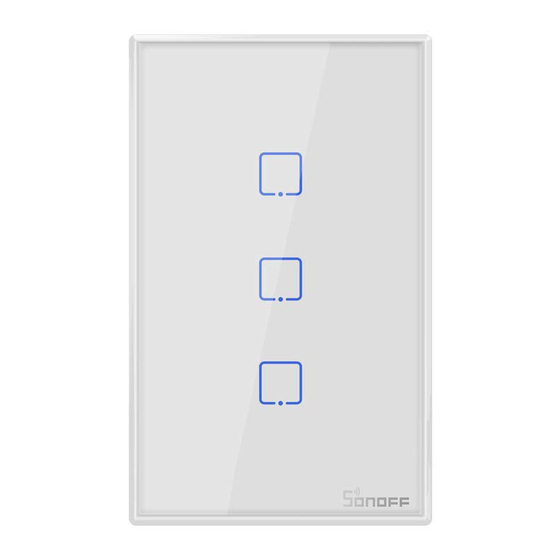

Wi-fi smart wall switch
Hide thumbs Also See for TX Series:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 8

Quick Links

User manual V1.2
Wi-Fi Smart Wall Switch
· 中
文 --------------------- - 1-6
· Deutsch --------------- - 13-18
· Français----------------- 25-30
EU
T0/T1
T2/T3
· English--------------------7-12
· Español---------------- -19-24
· Italiano---------------- 31-36
· Português--------------43-48

Advertisement

loading

Related Manuals for Sonoff TX Series

Summary of Contents for Sonoff TX Series

  • Page 1: Table Of Contents

    User manual V1.2 T0/T1 T2/T3 Wi-Fi Smart Wall Switch · 中 文 --------------------- - 1-6 · English--------------------7-12 · Español---------------- -19-24 · Deutsch --------------- - 13-18 · Italiano---------------- 31-36 · Français----------------- 25-30 · Português--------------43-48 · Русский язык----------37-42...

  • Page 2: 中 文

    中⽂ SONOFF TECHNOLOGIES CO., LTD. 使⽤说 1.断电 设备安装、故障维修请由专业资质电⼯操作，以免发⽣触电危险！ 2.接线 100-240V AC L In N In 零线（输⼊） ⽕线（输⼊） 通道（1/2/3）⽕线输出 L In Out Out Out N In 灯具接线⽰意: 100-240V AC LOut LOut L In N In...
  • Page 3 中⽂ SONOFF TECHNOLOGIES CO., LTD. 电器接线⽰意： LOut 100-240V AC L In N In 确保零⽕线接⼊⽆误。 3.下载 “易微联” APP 易 微 联 eWeLink Android™ & iOS 4.上电 通电后， 设备⾸次使⽤， 默认进⼊快速配⽹模式(Touch)。 Wi-Fi指⽰灯呈 “两短⼀⻓闪烁” 。 三分钟内没有进⾏配⽹， 设备将退出快速模式。 如需再次进⼊， ⻓按配对按钮5秒直到Wi-Fi 指⽰灯呈两短⼀⻓闪烁即可。...
  • Page 4 中⽂ SONOFF TECHNOLOGIES CO., LTD. 5.添加设备 添加设备 快速添加 WIFI 类设备，可使用该模式添加(请确 认)设备处于配网状态） 扫码添加 GSM 类设备和附带二维码的设备， 可使用该模式添加 声波添加 支持声波配对设备，可使用该模式添加 点击 “+” ， 选择 “快速添加” ， 再根据app提⽰进⾏操作。 兼容模式(AP) 如使⽤快速添加模式配⽹失败， 请使⽤ “兼容模式(AP)” 进⾏配对。 ⻓按配对按钮5秒直到Wi-Fi指⽰灯呈 “两短⼀⻓闪烁” 状态， 松开。 再次⻓按配对按钮5秒 直到Wi-Fi指⽰灯呈 “快闪” 状态， 此时设备进⼊兼容模式。 在app界⾯，点击“+”，选择“兼容模式”。 先把移动设备连接上Wi-Fi账号为： ITEAD-******， 密码为： 12345678， 然后回到 “易微联”...
  • Page 5 中⽂ SONOFF TECHNOLOGIES CO., LTD. 产品参数 T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C 产品型 T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240V AC 50/60Hz 2A 最⼤输⼊ T0/T1/T2/T3( EU2C ): 100-240V AC 50/60Hz 4A T0/T1/T2/T3( EU3C ): 100-240V AC 50/60Hz 3A T0/T1/T2/T3( EU1C ):100-240V AC 50/60Hz 2A 最⼤输出...
  • Page 6 中⽂ SONOFF TECHNOLOGIES CO., LTD. Wi-Fi信号指⽰灯状态说明 Wi-Fi指⽰灯状态 状态描述 两短⼀⻓闪烁 快速配⽹模式 兼容模式(AP) 快速闪烁 常亮 设备已连接 快闪⼀下 找不到路由 快闪⼆下 连接上路由， 但没连上外⽹ 快闪三下 升级中 产品特点 ⽤您的智能⼿机在任何地⽅打开或关闭家⾥的设备，设置定时开/关、分享给您的家⼈⼀起 控制等等。 远程控制 智能定时/延时 语⾳控制 分享功能 智能场景 433MHz控制 添加摄像头 触摸控制 LED背光 局域⽹功能 恢复出⼚设置 ⻓按任意按钮5秒直到Wi-Fi指⽰灯呈两短⼀⻓闪烁再松开，此时设备重置成功，默认进⼊ 快速配⽹模式(Touch)。 更换新的⽹络环境使⽤时，需要恢复出⼚设置，再重新进⾏⽹络连接。...
  • Page 7 中⽂ SONOFF TECHNOLOGIES CO., LTD. 常⻅问题 问：设备添加成功后，显示离线，无法控制？ 答：设备刚添加成功后，需要1-2分钟时间连接您的路由器并连网。如果长时间还是显示不 在线，请根据Wi-Fi指示灯的状态来判断： 1. 蓝灯2秒快闪一下： 说明设备没有连上您的Wi-Fi。 ① 可能是Wi-Fi密码输入不正确. ② 可能是设备离您的路由器太远，信号太弱，或环境有干扰。请先将设备靠近路由器，如无 改善，重新添加一遍. ③ 设备不能识别5G的Wi-Fi ， 请选择2.4G的Wi-Fi重新添加. ④ 检查您的路由器后台是否开启MAC地址过滤，如有，请关闭。 如果以上均尝试不能解决，请用一部手机开启个人热点，尝试重新添加。 2. 蓝灯2秒快闪两下：说明设备已连接到了Wi-Fi 但没有连上外网。 请确认您的Wi-Fi当前连接外网是否稳定、正常。如时好时坏，频繁出现这种双闪情况，说明您 的网络不稳定，并非产品原因。...

  • Page 8: English

    English SONOFF TECHNOLOGIES CO., LTD. Operating Instruction 1. Power off To avoid electric shocks, please consult the dealer or a qualified professional for help when installing and repairing! 2. Wiring instruction 100-240V AC L In N In Neutral input Live input...
  • Page 9 English SONOFF TECHNOLOGIES CO., LTD. Appliance wiring instruction: LOut 100-240V AC L In N In Makesuretheneutralwireandlivewireconnectioniscorrect. 3. Download APP eWeLink eWeLink Android™ & iOS 4. Power on After powering on, the device will enter the quick pairing mode (Touch) during the first use.
  • Page 10 English SONOFF TECHNOLOGIES CO., LTD. 5. Add the device Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 11 English SONOFF TECHNOLOGIES CO., LTD. Specifications T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C Model T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240V AC 50/60Hz 2A Max. input T0/T1/T2/T3( EU2C ): 100-240V AC 50/60Hz 4A T0/T1/T2/T3( EU3C ): 100-240V AC 50/60Hz 3A T0/T1/T2/T3( EU1C ): 100-240V AC 50/60Hz 2A Max.
  • Page 12 English SONOFF TECHNOLOGIES CO., LTD. Wi-Fi LED indicator status instruction Wi-Fi LED indicator status Status instruction Flashes (one long and two short) Quick Pairing Mode Keeps on Device is connected successfully Flashes quickly Compatible Pairing Mode Flashes quickly once Unable to discover the router...
  • Page 13 English SONOFF TECHNOLOGIES CO., LTD. Factory Reset Long press any button you desired to pair for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, then the reset is successful.

  • Page 14: Deutsch

    Deutsch SONOFF TECHNOLOGIES CO., LTD. Betriebsanweisung 1. Ausschalten Wenden Sie sich bitte an den Händler oder einen qualifizierten Fachmann, um Hilfe bei der Installation und Reparatur zu erhalten und um Stromschläge zu vermeiden! 2. Verkabelungsanleitung 100-240V AC L In N In Stromführender...
  • Page 15 Deutsch SONOFF TECHNOLOGIES CO., LTD. Anleitung zur Verkabelung von Geräten: LOut 100-240V AC L In N In Vergewissern Sie sich, dass der Anschluss von Neutralleiter und stromführender Phase korrekt ist. 3. APP herunterladen eWeLink eWeLink Android™ & iOS 4. Einschalten Nach dem Einschalten wechselt das Gerät bei der ersten Inbetriebnahme in den...
  • Page 16 Deutsch SONOFF TECHNOLOGIES CO., LTD. 5. Gerät hinzufügen Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 17 Deutsch SONOFF TECHNOLOGIES CO., LTD. Technische Daten T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C Modell T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240V AC 50/60Hz 2A Max. Eingang T0/T1/T2/T3( EU2C ): 100-240V AC 50/60Hz 4A T0/T1/T2/T3( EU3C ): 100-240V AC 50/60Hz 3A T0/T1/T2/T3( EU1C ): 100-240V AC 50/60Hz 2A Max.
  • Page 18 Deutsch SONOFF TECHNOLOGIES CO., LTD. Wi-Fi LED-Anzeige Statusanzeige Anweisung Wi-Fi LED-Anzeige Status Status-Anweisung Blinkt (einmal lang und zweimal kurz) Schnellkopplungsmodus Gerät ist erfolgreich verbunden Ist immer an Kompatibler Kopplungsmodus Schnell blinkt Der Router konnte nicht gefunden werden Blinkt einmal schnell...
  • Page 19 Deutsch SONOFF TECHNOLOGIES CO., LTD. Zurücksetzen auf Werkseinstellungen Drücken Sie eine Taste, die zurückgesetzt werden soll, ca. 5 Sek. lang, bis die WLAN- LED-Anzeige zu einem Intervall von zweimaligem kurzen Blinken und einem langen Blinken wechselt, dann war das Zurücksetzen erfolgreich. Das Gerät wechselt in den Schnellkopplungsmodus (Touch).

  • Page 20: Español

    Español SONOFF TECHNOLOGIES CO., LTD. Instrucciones de funcionamiento 1. Apagado Para evitar descargas eléctricas, consulte con su distribuidor o un profesional cualificado para solicitar ayuda durante la instalación y la reparación! 2. Instrucciones de cableado 100-240V AC L In N In...
  • Page 21 Español SONOFF TECHNOLOGIES CO., LTD. Instrucciones de cableado de aparatos: LOut 100-240V AC L In N In Compruebe que las conexiones del cable neutro y activo sean correctas. 3. Descargar la aplicación eWeLink eWeLink Android™ & iOS 4. Encender Después de encender, el dispositivo se pondrá en modo de emparejamiento rápido (Touch) durante el primer uso,El indicador LED de Wi-Fi cambie a "un ciclo de dos...
  • Page 22 Español SONOFF TECHNOLOGIES CO., LTD. 5. Añadir el dispositivo Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 23 Español SONOFF TECHNOLOGIES CO., LTD. Especificaciones T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C Modelo T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240V CA 50/60Hz 2 A Entrada máxima T0/T1/T2/T3( EU2C ): 100-240V CA 50/60Hz 4 A T0/T1/T2/T3( EU3C ): 100-240V CA 50/60Hz 3 A T0/T1/T2/T3( EU1C ): 100-240V CA 50/60Hz 2 A T0/T1/T2/T3( EU1C ): 100-240V CA 50/60Hz 2 A/Conexión 4 A/Total...
  • Page 24 Español SONOFF TECHNOLOGIES CO., LTD. Instrucciones del indicador de estado Wi-Fi LED Indicador de Estado LED Instrucción de estado Parpadea (uno largo y dos cortos) Modo de emparejamiento rápido Siempre está encendida El dispositivo está conectado correctamente Parpadea rápidamente Modo de emparejamiento compatible Parpadea rápidamente una sola vez...
  • Page 25 Español SONOFF TECHNOLOGIES CO., LTD. Restablecimiento de los ajustes de fábrica Mantenga presionado cualquier botón que desee emparejar durante unos 5 s, hasta que el indicador LED de Wi-Fi cambie a un ciclo de dos parpadeos cortos y uno largo, y suéltelo;...

  • Page 26: Français

    Français SONOFF TECHNOLOGIES CO., LTD. Instruction d'opération 1. Éteindre P o u r év i t e r l e s é l e c t ro c u t i o n s , p re n e z c o n t a c t a v e c l e rev e n d e u r o u u n professionnel qualifié...
  • Page 27 Français SONOFF TECHNOLOGIES CO., LTD. Instructions de câblage de l'appareil: LOut 100-240V AC L In N In Assurez-vous que le fil neutre et le fil sous tension sont correctement installés. 3. Télécharger l'application eWeLink eWeLink Android™ & iOS 4. Allumer Après allumage, l'appareil entre en mode d'association rapide (Touch) lors de...
  • Page 28 Français SONOFF TECHNOLOGIES CO., LTD. 5. Ajouter l'appareil Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 29 Français SONOFF TECHNOLOGIES CO., LTD. Caractéristiques techniques T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C Modèle T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240V CA 50/60Hz 2A T0/T1/T2/T3( EU2C ): 100-240V CA 50/60Hz 4A Alimentation en entrée max. T0/T1/T2/T3( EU3C ): 100-240V CA 50/60Hz 3A T0/T1/T2/T3( EU1C ): 100-240V AC 50/60 Hz 2A T0/T1/T2/T3( EU1C ): 100-240V AC 50/60 Hz 2A/Gang 4A/Total Alimentation en sortie max.
  • Page 30 Français SONOFF TECHNOLOGIES CO., LTD. Wi-Fi Instruction d'état du voyant Statut de l'indicateur LED Instruction d'état Clignote (une longue et deux courtes) Mode de couplage rapide Est toujours allumée L'appareil est connecté avec succès Clignote rapidement Mode d'appairage compatible Clignote rapidement une fois Impossible de trouver le routeur Connexion réussie au routeur, mais le Wi-Fi...
  • Page 31 Français SONOFF TECHNOLOGIES CO., LTD. Rétablissement des paramètres d'usine Appuyez sur n’importe quel bouton appuyé pendant environ 5 s jusqu'à que l'indicateur DEL Wi-Fi clignote deux fois rapidement puis une fois rapidement. Relâchez le bouton, la réinitialisation est terminée. L'appareil entre en mode d'association rapide (Touch).

  • Page 32: Italiano

    Italiano SONOFF TECHNOLOGIES CO., LTD. Istruzioni per l'uso 1. Spegnimento Per evitare scosse elettriche, consultare il rivenditore o un professionista qualificato per assistenza durante l'installazione e la riparazione! 2. Istruzioni per il cablaggio 100-240V AC L In N In Ingresso neutro...
  • Page 33 Italiano SONOFF TECHNOLOGIES CO., LTD. Istruzioni per il cablaggio dell'apparecchio: LOut 100-240V AC L In N In Assicurarsi che il collegamento del cavo di neutro e del cavo di fase sia corretto. 3. Scarica la APP eWeLink eWeLink Android™ & iOS 4.
  • Page 34 Italiano SONOFF TECHNOLOGIES CO., LTD. 5. Aggiungere il dispositivo Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 35 Italiano SONOFF TECHNOLOGIES CO., LTD. Specifiche T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C Modello T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240V CA 50/60Hz 2A Ingresso max T0/T1/T2/T3( EU1C ): 100-240V CA 50/60Hz 4A T0/T1/T2/T3( EU3C ): 100-240V CA 50/60Hz 3A T0/T1/T2/T3( EU1C ): 100-240V CA 50/60Hz 2A...
  • Page 36 Italiano SONOFF TECHNOLOGIES CO., LTD. Istruzioni sullo stato dell’indicatore Wi-Fi LED Stato dell'indicatore Wi-Fi LED Istruzioni sullo stato Il LED blu un ciclo di due lampeggi brevi Modalità di accoppiamento rapido e uno lungo Il collegamento del dispositivo è stato eseguito...
  • Page 37 Italiano SONOFF TECHNOLOGIES CO., LTD. Ripristino impostazioni di fabbrica Tenere premuto qualsiasi pulsante che si desidera accoppiare per circa 5 secondi fino a quando l'indicatore LED del Wi-Fi passa a un ciclo di due lampeggi brevi e uno lungo, quindi rilasciarlo: il ripristino ha avuto esito positivo. Il dispositivo entra in modalità...

  • Page 38: Русский Язык

    Русский язык SONOFF TECHNOLOGIES CO., LTD. Инструкция по эксплуатации 1. Выключить Во избежание поражения электрическим током при установке и ремонте обращайтесь за консультациями к продавцу или квалифицированному специалисту! 2. Инструкции по проводке 100-240B AC L In N In Вход нуля...
  • Page 39 Русский язык SONOFF TECHNOLOGIES CO., LTD. Инструкция по подключению оборудования: LOut 100-240B AC L In N In Убедитесь, что провод нейтрали (ноль) и провод под напряжением (фаза) подключены. 3. Cкачать приложение eWeLink eWeLink Android™ & iOS 4. Включить После первого включения устройство перейдет в режим быстрого сопряжения.
  • Page 40 Русский язык SONOFF TECHNOLOGIES CO., LTD. 5. Добавить устройство Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 41 Русский язык SONOFF TECHNOLOGIES CO., LTD. Технические характеристики T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C Модель T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240В пер. тока 50/60Гц 2A T0/T1/T2/T3( EU2C ): 100-240В пер. тока 50/60Гц 4A Макс. входной ток T0/T1/T2/T3( EU3C ): 100-240В пер. тока 50/60Гц 3A T0/T1/T2/T3( EU1C ):100-240В...
  • Page 42 Русский язык SONOFF TECHNOLOGIES CO., LTD. Инструкция режима светодиодного индикатора Режим светодиодного индикатора Описание режима Мигает зеленый светодиодная лампочка Режим быстрого сопряжения (один длинный и два коротких) зеленый светодиодная цвета всегда горит Устройство успешно подключено зеленый светодиодная цвета быстро мигает...
  • Page 43 Русский язык SONOFF TECHNOLOGIES CO., LTD. Сброс до заводских настроек Для сопряжения удерживайте нужную кнопку в течение примерно 5 секунд, пока светодиодный индикатор Wi-Fi не начнет мигать в режиме «два раза коротко, один раз длинно», после чего отпустите кнопку для сброса настроек. Устройство...

  • Page 44: Português

    SONOFF TECHNOLOGIES CO., LTD. Instrução de Operação 1. Desligar Para evitar choques elétricos, por favor consulte o seu distribuidor ou um profissional qualificado para auxiliar na instalação e reparo. 2. Instruções de instalação 100-240V AC L In N In Entrada neutro Entrada fase Saída fase...
  • Page 45 SONOFF TECHNOLOGIES CO., LTD. Instrução para instalação de eletrodoméstico: LOut 100-240V AC L In N In Certifique-se de que os cabos neutro e fase estejam conectados corretamente. 3. Baixe o APP eWeLink eWeLink Android™ & iOS 4. Ligue Após ligar o aparelho entrará em modo de pareamento (Touch) durante o primeiro uso.
  • Page 46 SONOFF TECHNOLOGIES CO., LTD. 5. Adicione o aparelho Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode.
  • Page 47 SONOFF TECHNOLOGIES CO., LTD. Parâmetros do produto T0EU1C/T0EU2C/T0EU3C T1EU1C/T1EU2C/T1EU3C Modelo T2EU1C/T2EU2C/T2EU3C T3EU1C/T3EU2C/T3EU3C T0/T1/T2/T3( EU1C ): 100-240V AC 50/60Hz 2A Entrada max. T0/T1/T2/T3( EU2C ): 100-240V AC 50/60Hz 4A T0/T1/T2/T3( EU3C ): 100-240V AC 50/60Hz 3A T0/T1/T2/T3( EU1C ): 100-240V AC 50/60Hz 2A T0/T1/T2/T3( EU2C ): 100-240V AC 50/60Hz 2A/grupo 4A/Total Saida max.
  • Page 48 SONOFF TECHNOLOGIES CO., LTD. Instruções do status do indicador LED Wi-Fi Status do indicador LED Descrição de status LED verde Piscando (um flash longo e dois curtos) Modo de pareamento rápido LED verde acesa O dispositivo foi conectado com sucesso LED verde pisque rapidamente Modo de pareamento compatível...
  • Page 49 SONOFF TECHNOLOGIES CO., LTD. Redefinição de fábrica Pressione qualquer botão que deseja parear por 5 segundos até que o indicador LED Wi-Fi mude para um ciclo de dois flashes curtos e um longo e solte, então a reiniciação foi feita. O dispositivo entra modo de pareamento rapidamente.
  • Page 50 Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type T0EU1C/T0EU2C/T0EU3C/T1EU1C/T1EU2C/T1EU3C/T2EU1C/T2EU2C/T2EU3C/ T3EU1C/T3EU2C/T3EU3C is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: https://sonoff.tech/usermanuals TX Frequency: WiFi: 2412-2472MHz RX Frequency: WiFi: 2412-2472MHz SRD: 433.92MHz...
