English Product introduction Switch panel Touch control screen Ambient light Switches LED indicator Network LED indicator Wiring ports The device weight is less than 1kg, and the recommended installation height is less than 2m. LED Indicator status and instruction LED indicators LED indicator status Instructions Pairing LED...
Page 11
English Operation instruction Quick click Long press Swipe Multi-point click Operations Instructions Functions Turn on/off the switches and trigger Quick click Click the switch panel quickly the smart scenes Long press the switch panel Make the device enter the pairing Long press for 5s mode...

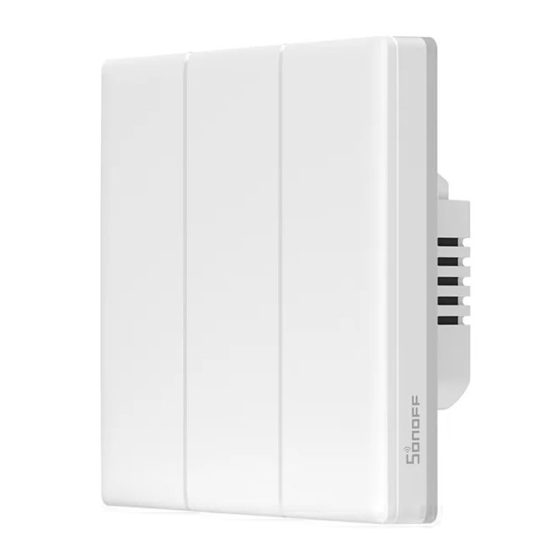

English Features SONOFF TX Ultimate is a smart touch wall switch with LED lights which will produce sound, light and vibration effects when it is turned on/off. After adding in the eWeLink App, you can remote control on/off, switch the ambient lighting modes, set timer and smart scene on the phone.
Page 13
English 2. Wiring instruction Before installing the device, please intstall an air switch as the protective device (Air switch 16A/250V).
English Make sure all wires are connected correctly. Pairing Method 1. eWeLink App Pairing 1-1 Download the eWeLink App Please download the "eWeLink" App from Google Play Store or Apple App Store.
Page 15
English 1-2 Power on After powering on, the device will enter the Bluetooth pairing mode by default during the first use and the LED frame light will light in the "Cycle mode". The device will exit the Bluetooth pairing mode when it doesn't be paired successfully within 10mins.
Page 16
English 2. Amazon Frustration-Free Setup (FFS) Applicable situation: The account you use to purchase this device on Amazon.com is the same as the Alexa account you sign in the smart speaker (with Certified for Humans badge). After power on the device, it will enter the FFS pairing mode by default (LED indicator flashes in "Cycle mode").
English Add eWeLink-Remote Sub-devices Enter the Device Settings page on the eWeLink App, select "eWeLink-Remote sub-devices" and tap "Add", then trigger the sub-device to add it successfully. Specifications Model T5-1C-86/T5-2C-86/T5-3C-86 1C:100-240V ~ 50/60Hz Max 5A Input 2C:100-240V ~ 50/60Hz Max 10A 3C:100-240V ~ 50/60Hz Max 15A 1C:100-240V ~ 50/60Hz Max 5A Output...
Warning 本产品型号核准代码在铭牌上显示 执行标准:GB/T 16915.2-2012 产品中有害物质的名称及含量 有害物质 部件名称 铅 汞 镉 六价铭 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr { VI} (PBB) (PBDE) 塑料件 电子元器件 包装盒 PCB板 本表格依据SJ/T 11364 的规定编制: o:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下; x:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 SAR Warning Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.
WEEE Warning WEEE Disposal and Recycling Information All products bearing this symbol are waste electrical and electronic equipment (WEEEas in directive 2012/19/EU) which should not be mixed with unsorted householdwaste. Instead, you should protect human health and the environment by handingover your waste equipment to a designat- ed collection point for the recycling of waste electricaland electronic equipment, appoint- ed by the government or local authorities.
