Summary of Contents for Beninca FirstFence BULL 20HE

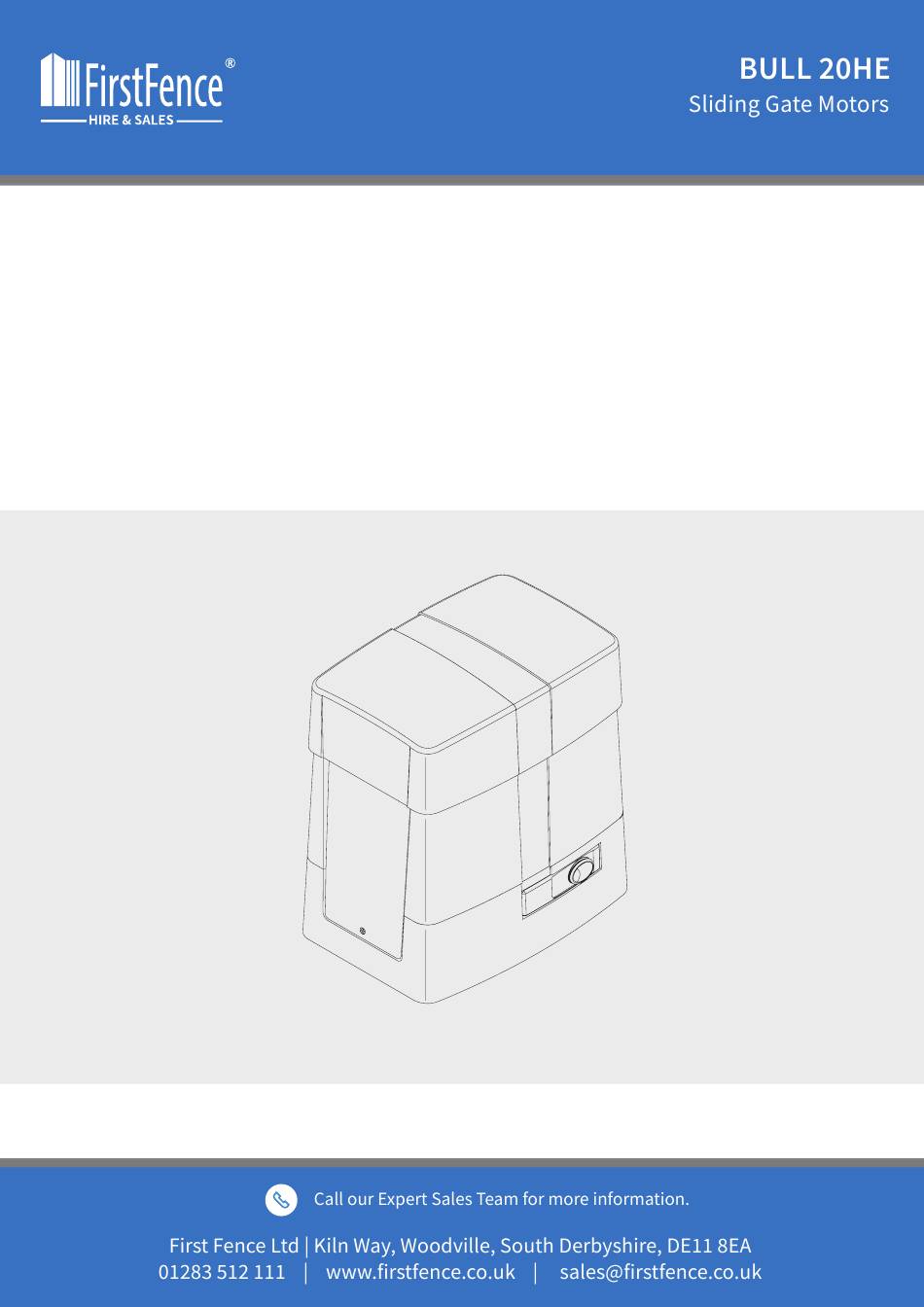

- Page 1 BULL 20HE BULL 20HEA...
-
Page 2: Overall Dimensions
BULL 20HE BULL 20HEA Technical data Feed 230 Vac 50 Hz 120 Vac 60 Hz Absorption Torque 40 Nm 40 Nm Operating jogging 80 % 80 % Protection class IP44 IP44 Working temperature -20°C / +50°C -20°C / +50°C Max. gate weight 2000kg 2000kg Rack modulus... - Page 3 IIMPORTANT NOTE: Keep to this dimension! Grooved tube Fig.1 Direct fitting on the already existing base in concrete 4 screw anchors Ø10/120mm 4 holes Ø10 Fig.2...
- Page 4 Fitting with adjustment on the already existing base in concrete 4 washers Fig.3 4 washers 4 bars M10 4 screw anchors for bars M10 Fig.3 Fitting with stretcher bolts on concrete layer 4 nuts M10 4 washers 11x30 4 M10 threaded stretcher bolts immersed in concrete 4 nuts M10 Hole for concrete layer Fig.4...
- Page 5 Wait for hardening of the concrete layer, then remove the nuts “D” and the 11x30 large band washers “R”, move them under the plate to allow for the actuator adjustment in height. Fig.5 Place higher than rack and level. MIN =120 mm MAX = 140 mm MIN = 0 mm MAX = 20 mm...
- Page 6 4 nuts M10 4 safety washers 4 washers 11x20 4 Fig.7 Fe rack ≈1 mm 130 min 150 max Important: Keep the pitch Fig.8 Fig.9...
- Page 7 Just pressed limit stop. N.b. The limit stop flask must be positioned to ensure that the gate stops without knocking against the mechanical stop. Fig.10...
- Page 8 Fig.11 K Max 35 mm 3 mm 74 mm 35 mm 63 mm BULL 20HE.S BULL 20HEA.S Fig.12...
- Page 9 40÷60 cm from the ground (according to standard in force) Max. 10 cm from the conveyance area Legend: 1 Ratio-motor complete with gear case BULL 2 Rack RI.M4F/RI.M4Z 3 Limit stop flasks 4 Photo-electric cells 5 Mechanical stop 6 Key or digital keyboard selector 7 Blinker 8 Antenna Fig.13...
- Page 10 WARNING The product shall not be used for purposes or in ways other than those for which the product is intended for and as de- scribed in this manual. Incorrect uses can damage the product and cause injuries and damages. The company shall not be deemed responsible for the non-compliance with a good manufacture technique of gates as well as for any deformation, which might occur during use.
-
Page 11: General Features
1. General information For an efficient operation of the sliding automatic mechanism, the gate must have the following features: - The guide rail and its wheels must be suitable in size and mantained to prevent gate from excessive sliding friction. - When running, gate must not rock excessively. -
Page 12: Wire Diagram
6. How to install the magnets (BULL 20HE.S - 20HEA.S) fig.11 The magnets are housed in special supports (fig.11-”A”). These magnets are to be fitted to the limit switch brackets or the rack and cause the triggering of sensors when they approach them. Fitting onto the limit switch brackets The bases are complete with hooking tongue allowing the fitting of the magnets to the limit switch bracket supplied with the operator, as shown in Fig.11-B. - Page 13 BULL User’s handbook Safety measures • Do not stand within the gate movement area. • Children must not play with controls and near the gate. • In the event of malfunctions, do not attempt to repair the failure but contact the specialised personnel. Manual and emergency manoeuvre In the event of power failure or malfunction, to manually operate the gate proceed as follows: •...
- Page 14 BULL 20 HE BULL 20 HEA Ref. Note Code Code 968600981 968600982 9686330 9688319 9686328 9686329 968601570 9686333 9688270 9686335 9686032 968600983 968600984 9686337 9688102 BULL_S...
- Page 15 EC Declaration of Conformity Directive 2004/108/EC(EMC); 2006/95/EC (LVD) Manufacturer: Automatismi Benincà SpA. Address: Via Capitello, 45 - 36066 Sandrigo (VI) – Italy It is hereby stated that the product automatic system for sliding gates BULL 20HE- 20HEA) is compliant with provisions set forth in the following EC Directives: DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004, on the harmonisation of the laws of Member States relating to electromagnetic compatibility and which cancels Directive 89/336/EEC, according to the following harmonised regulations: EN 61000- 6-2:2005, EN 61000-6-3:2007.
