Regency Hampton GCI60-2 Manual

Cast iron pellet insert
Hide thumbs

Advertisement

Quick Links

Download this manual
Model
Heat Output BTUs
Emissions (grams/hr) EPA Certified
Efficiency (EPA HHV)*/**
Efficiency (EPA LHV)
Flue Size
US Biomass Tax Rebate Eligible*/**
*US Biomass Tax Rebate eligibility is based on the HHV value being
greater than or equal to 75%.
**When using 4'' (102 mm) to 6'' (152 mm) flue increaser. See technical
manual for further information.
16 ⁄
33 ⁄
11 ¾
12 ¾

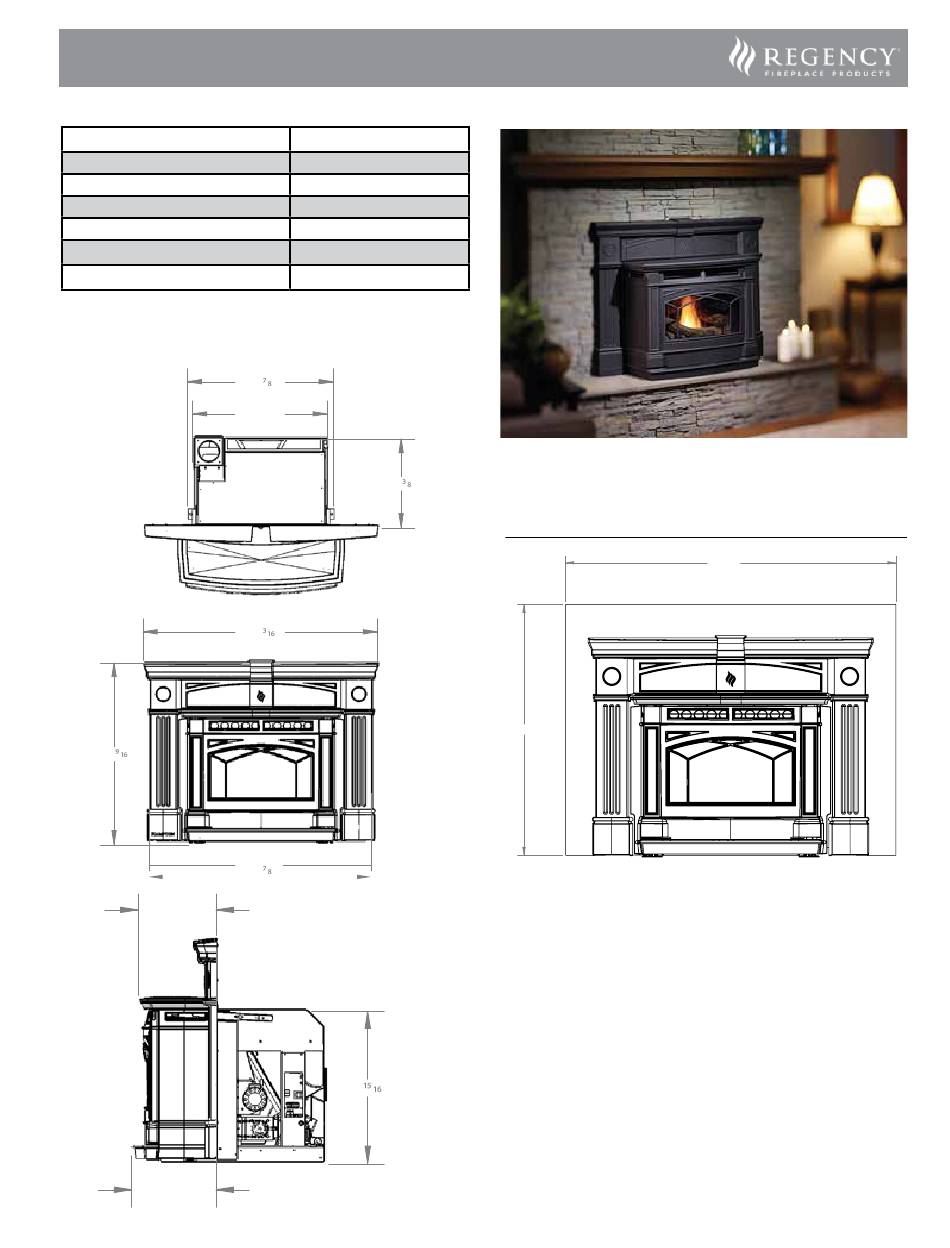

Hampton GCI60-2 Cast Iron Pellet Insert
GCi60-2
7,817-38,437 BTUs
1.9 gram/hr
78%
86%
4" (102mm)
Yes
26 ⁄
24 ¾
16 ⁄
43 ⁄
40 ⁄
22 ⁄
11 ¾
38.000
22 ⁄
12 ¾
Filler Panels Dimensions
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUS
50.000
Sherwood Industries Ltd.
Part Description
GCI60 Filler Panel Dimensions
HEAT TREATMENT
SCALE- NOT TO SCALE
GCI60-2 Pellet Insert |
FINISH
SHEET
1 OF 1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hampton GCI60-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Regency Hampton GCI60-2

Summary of Contents for Regency Hampton GCI60-2

  • Page 1 Hampton GCI60-2 Cast Iron Pellet Insert Model GCi60-2 Heat Output BTUs 7,817-38,437 BTUs Emissions (grams/hr) EPA Certified 1.9 gram/hr Efficiency (EPA HHV)*/** Efficiency (EPA LHV) Flue Size 4" (102mm) US Biomass Tax Rebate Eligible*/** *US Biomass Tax Rebate eligibility is based on the HHV value being greater than or equal to 75%.

  • Page 2: Installation

    Installation To Start Stove: S S LABEL / NE RETIREZ PAS CETTE ÉTIQUETTE grades of wood learanCes to ombustibles of pellets in the INSTALLED AS A FIREPLACE INSERT STOVE MODEL (FPI) / A INSTALLE INSTALLED AS A FIREPLACE INSERT STOVE MODEL (FPI) To Operate Stov COMME UN MODELE SUR PIED DE POELE.
  • Page 3 5. If the unit is incorrectly vented or the air to fuel mixture is out of balance, a slight discoloration of the exterior of the house might occur. Since these factors are beyond the control of Regency Fireplace Products, we grant no guarantee against such incidents.
  • Page 4 Rain Cap asonry ireplaCe nstallation Steel Plate or Flashing A non-combustible manufactured hearth pad (min. 24 gauge galvanized steel or similar) must cover combustible flooring Flexible or Rigid 4" Stainless Steel Liner underneath, as well as 6” (150 mm) in front of the heater and 6”...
  • Page 5 When installing the fireplace insert into a zero clearance fireplace, DO NOT cut or modify any factory firebox parts. GCI60-2 Pellet Insert | Hampton GCi60-2 Cast Pellet Insert Technical Manual...
  • Page 6 (usa o ositiVe onneCtion without a eline This unit does not require a full reline (in USA only) when installing into a masonry fireplace, however, it is recommended to ensure proper drafting of the appliance. IMPORTANT: Ensure the chimney and firebox are cleaned and free of all debris, including soot and ashes, before proceeding with this installation.
  • Page 7 uilt nstallation Installation without a masonry fireplace - The GCI60 can be installed without an existing masonry fireplace by building an enclosure for the unit to be installed in. This enclosure must be a minimum of 18” deep, 36” wide and 23-1/4” high and made with ½”...
  • Page 8 orizontal xhaust hrough nstallation Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation must conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment and with all local regulations, including those referring to regional and national.

  • Page 9: Termination Cap

    reCommenDeD - t hrough ertiCal ise anD orizontal ermination nstallation NOTE - This venting configuration is only for use with the Built-In installation. Termination cap 90°elbow Wall framing Vertical section of vent pipe Wall strap Horizontal frame for thimble Clean out tee Wall thimble Figure 12: Venting horizontally with rise.
  • Page 10 utsiDe ertiCal nstallations To accomplish an outside vertical pipe installation, follow the “H ” section orizontal xHaust HrougH nstallations and then finish it by performing the following. 1. Install a tee with clean out on the outside of the house. 2.
  • Page 11 nsiDe ertiCal nstallations 1. Install a tee or 90° elbow on the inside of the house. 2. Install PL vent upward from the tee. Make sure that you install support brackets to keep the vent straight and secure. All joints in the exhaust venting system must be fastened with at least three (3) screws. 3.

This manual is also suitable for:

Hampton gci60
