Model
Heat Output BTUs
Emissions (grams/hr) EPA Certified
Efficiency (EPA HHV)*/**
Efficiency (EPA LHV)
Flue Size
US Biomass Tax Rebate Eligible*/**
*US Biomass Tax Rebate eligibility is based on the HHV value being
greater than or equal to 75%. *
**When using optional top vent adaptor kit (GC60-920) and 4'' to 6''
flue adaptor (4PVP-X6). See instruction manual for further information.

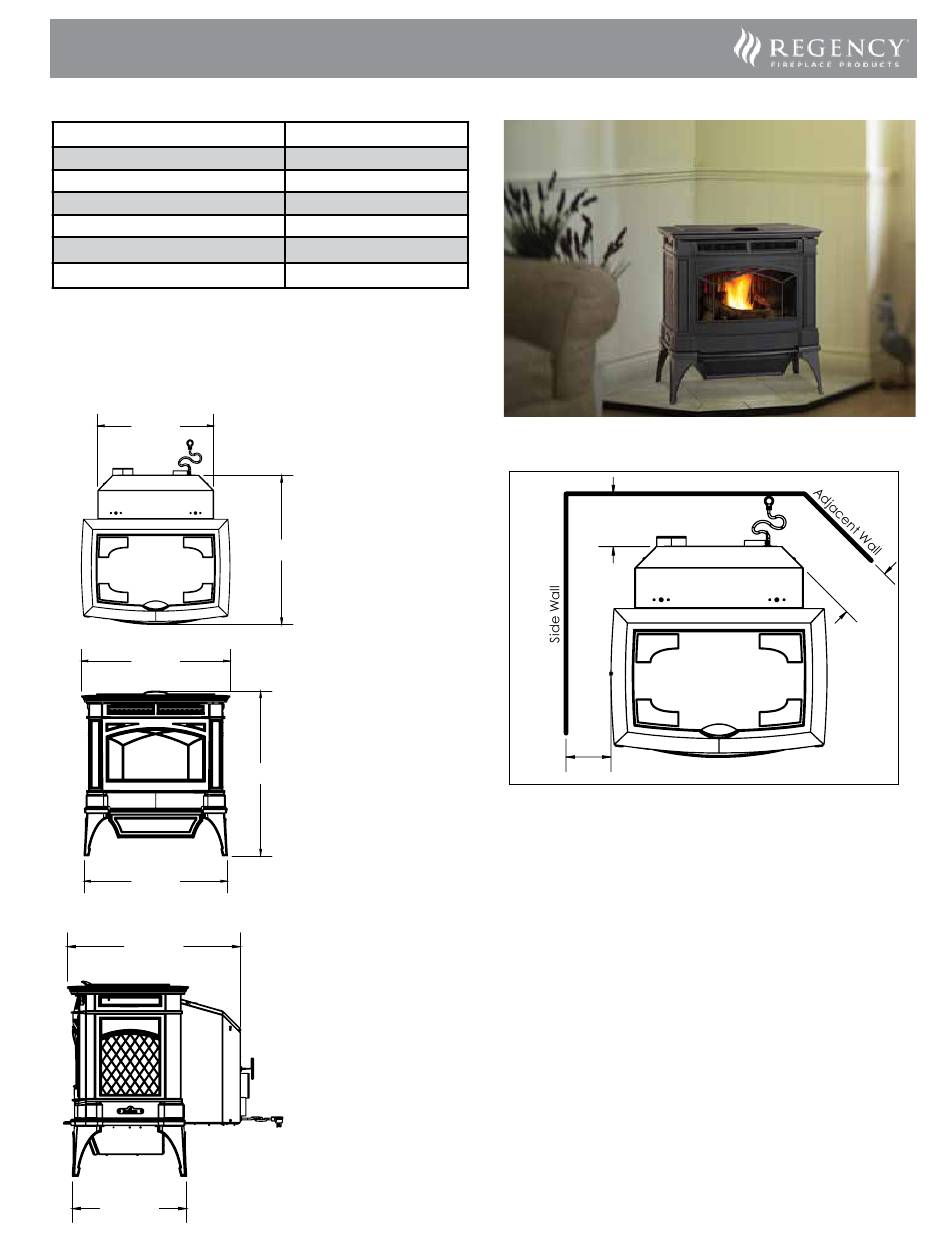

DIMENSIONS
23"
(584mm)
4" Exhaust
29-1/2"
(749mm)
28-1/2"
(724mm)
29"
(737mm)
28-12"
(724mm)
31-1/2"
(800mm)
18-3/4"
(476mm)

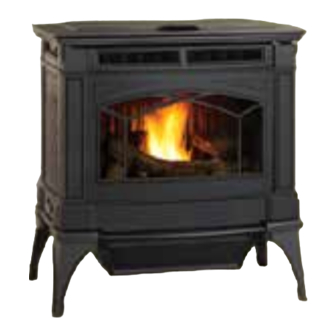

Hampton GC60-2 Freestanding Pellet Stove
GC60-2
7,817-38,437 BTUs
1.9 gram/hr
78%
86%
4" (102 mm)
Yes
3" Fresh Air Intake
28-1/2"
(724mm)
28-12"
(724mm)
31-1/2"
(800mm)
18-3/4"
(476mm)
4" Exhaust
CLEARANCES TO COMBUSTIBLES
3"
(76mm)
9"
(229mm)
4" Exhaust
These dimensions are minimum clearances but it is recommended
that you ensure sufficient room for servicing, routine cleaning and
maintenance.
Side wall to unit
Back wall to unit
Corner to unit
Ceiling height
Alcove Maximum Depth
Alcove Minimum Width
Alcove Minimum Height
The unit must be installed with a minimum of 6" (152 mm) of floor
protection in front of and to the sides of the door opening.
Back Wall
9 inches
(229 mm)
3 inches
(76 mm)
3 inches
(76 mm)
60 inches
(1524 mm)
36 inches (914 mm)
48 inches (1219 mm)
60 inches (1524 mm)
GC60-2 Pellet Stove |
3"
(76mm)
1
Advertisement
Table of Contents
Related Manuals for Regency Hampton GC60-2
Summary of Contents for Regency Hampton GC60-2
- Page 1 Hampton GC60-2 Freestanding Pellet Stove Model GC60-2 Heat Output BTUs 7,817-38,437 BTUs Emissions (grams/hr) EPA Certified 1.9 gram/hr Efficiency (EPA HHV)*/** Efficiency (EPA LHV) Flue Size 4" (102 mm) US Biomass Tax Rebate Eligible*/** *US Biomass Tax Rebate eligibility is based on the HHV value being greater than or equal to 75%.
- Page 2 EXHAUST AND FRESH AIR MOBILE HOME INSTALLATION INTAKE LOCATION • Secure the heater to the floor using the four (4) holes in the pedestal. • Ensure the unit is electrically grounded to the chassis of your home (permanently). • Do not install in a room people sleep in. •...
-
Page 3: Through Wall With Vertical Rise And Horizontal Termination Installation
THROUGH WALL WITH VERTICAL RISE AND HORIZONTAL TERMINATION INSTALLATION Elbow with Screen or Termination Cap 4" 90 Wall framing Wall Strap Clean out Tee Horizontal frame Vertical for thimble section of 4" vent pipe Wall Strap Wall Thimble THROUGH CONCRETE WALL WITH VERTICAL RISE INSTALLATIONS Horizontal frame for thimble 4"... -
Page 4: Outside Vertical Installations
OUTSIDE VERTICAL INSTALLATIONS To accomplish an outside vertical pipe installation, follow the “H ” section orizontal xHaust HrougH nstallations and then finish it by performing the following (refer to Figure 15). 1. Install a tee with clean out on the outside of the house. 2. -
Page 5: Inside Vertical Installations
INSIDE VERTICAL INSTALLATIONS 1. Place the unit on the hearth pad if a hearth pad is to be used (or on solid material if installed on a carpeted surface) and space the unit in a manner so when the pellet vent is installed vertically, it will meet the minimum clearance from a combustible wall stated by the vent manufacturer. -
Page 6: Hearth Mount Installation
HEARTH MOUNT INSTALLATION Damper Removed or Fastened Open Mantel Minimum (8") 200mm from top of stove Clean-out tee Min (6") 150mm Fresh-air intake should com from chimney. If holes Floor already exist fresh-air intake Protection can be taken through back of the fireplace or through the ash dump. - Page 7 A chimney when going through the wall or ceiling when using Simpson Duravent Duraplus/Duratech chimney systems. Not required with DuraTech Premium or DuraTech Canada. DTC ceiling supports feature a built-in flue extension which eliminates the need for this Simpson Duravent DVL adaptor. Hampton GC60-2 Cast Pellet Stove Technical Manual GC60-2 Pellet Stove |...
